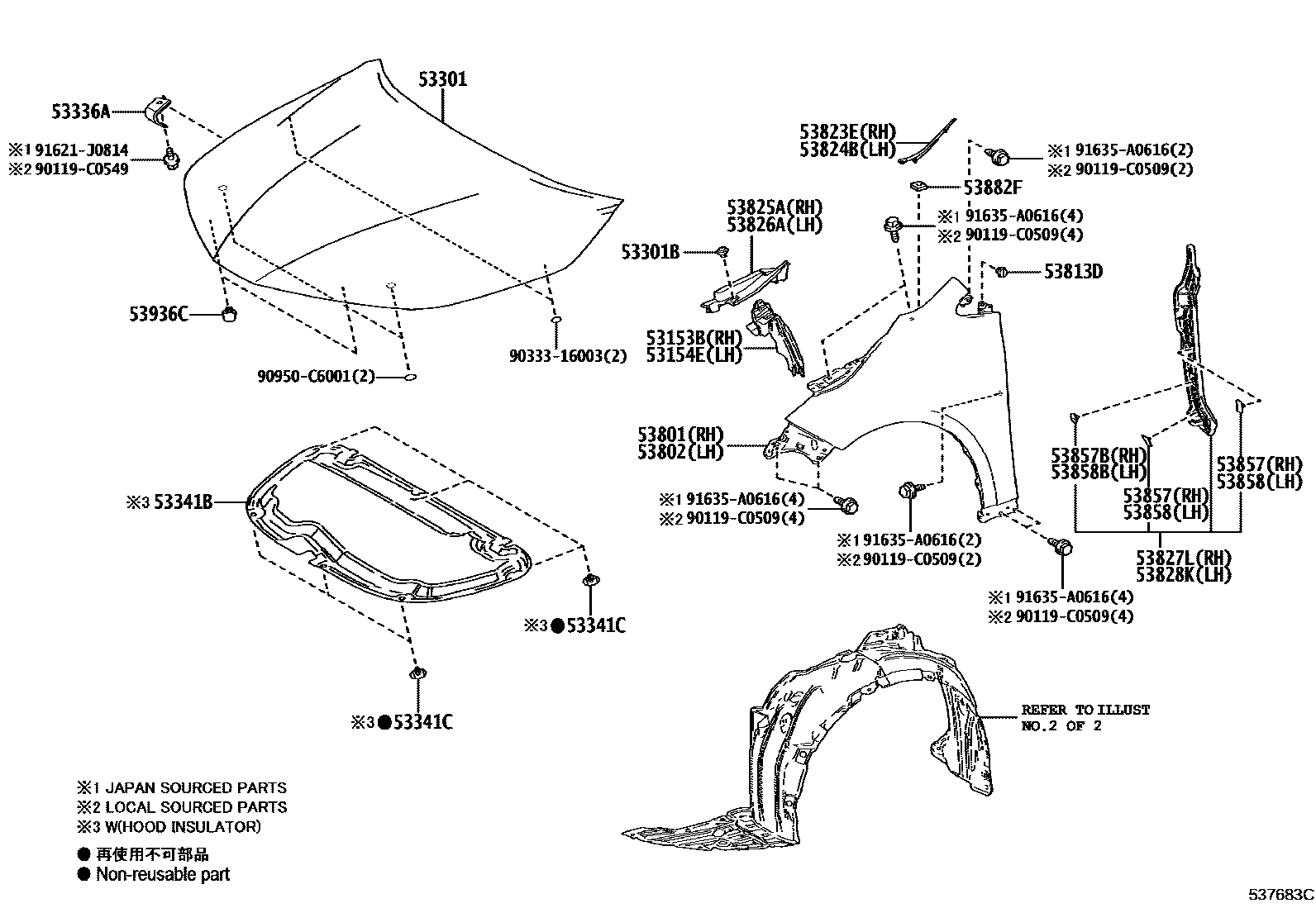

HOOD & FRONT FENDER
53153BGUIDE, FRONT SIDE AIR
53154EGUIDE, FRONT SIDE AIR, NO.2
53301HOOD SUB-ASSY
53301BCUSHION, HOOD BUMPER
(L)
(J)
53336ABRACKET, HOOD STAY
53341BINSULATOR, HOOD
LOW PACKAGE
LOW PACKAGE
53341CCLIP(FOR HOOD INSULATOR)
(J)
LOW PACKAGE,(J)
(L)
53801FENDER SUB-ASSY, FRONT RH
53802FENDER SUB-ASSY, FRONT LH
53813DEXTENSION, FRONT FENDER
53823EPROTECTOR, FRONT SIDE PANEL, NO.2 RH
53824BPROTECTOR, FRONT SIDE PANEL, NO.2 LH
53825APROTECTOR, FRONT FENDER, UPPER RH
53826APROTECTOR, FRONT FENDER, UPPER LH
53827LPROTECTOR, FRONT FENDER SIDE PANEL, RH
53828KPROTECTOR, FRONT FENDER SIDE PANEL, LH
53857RETAINER, FRONT WHEEL OPENING EXTENSION, RH
53857BRETAINER, FRONT WHEEL OPENING EXTENSION, RH
53858RETAINER, FRONT WHEEL OPENING EXTENSION, LH
53858BRETAINER, FRONT WHEEL OPENING EXTENSION, LH
53882FSEAL, FRONT FENDER
(L)
(J)
53936CCUSHION
90119C0509
main90119-C0509
90119C0549
main90119-C0549
9033316003
90950C6001
main90950-C6001
91621J0814
91635A0616
28 parts on this diagram · 2 diagrams in section
