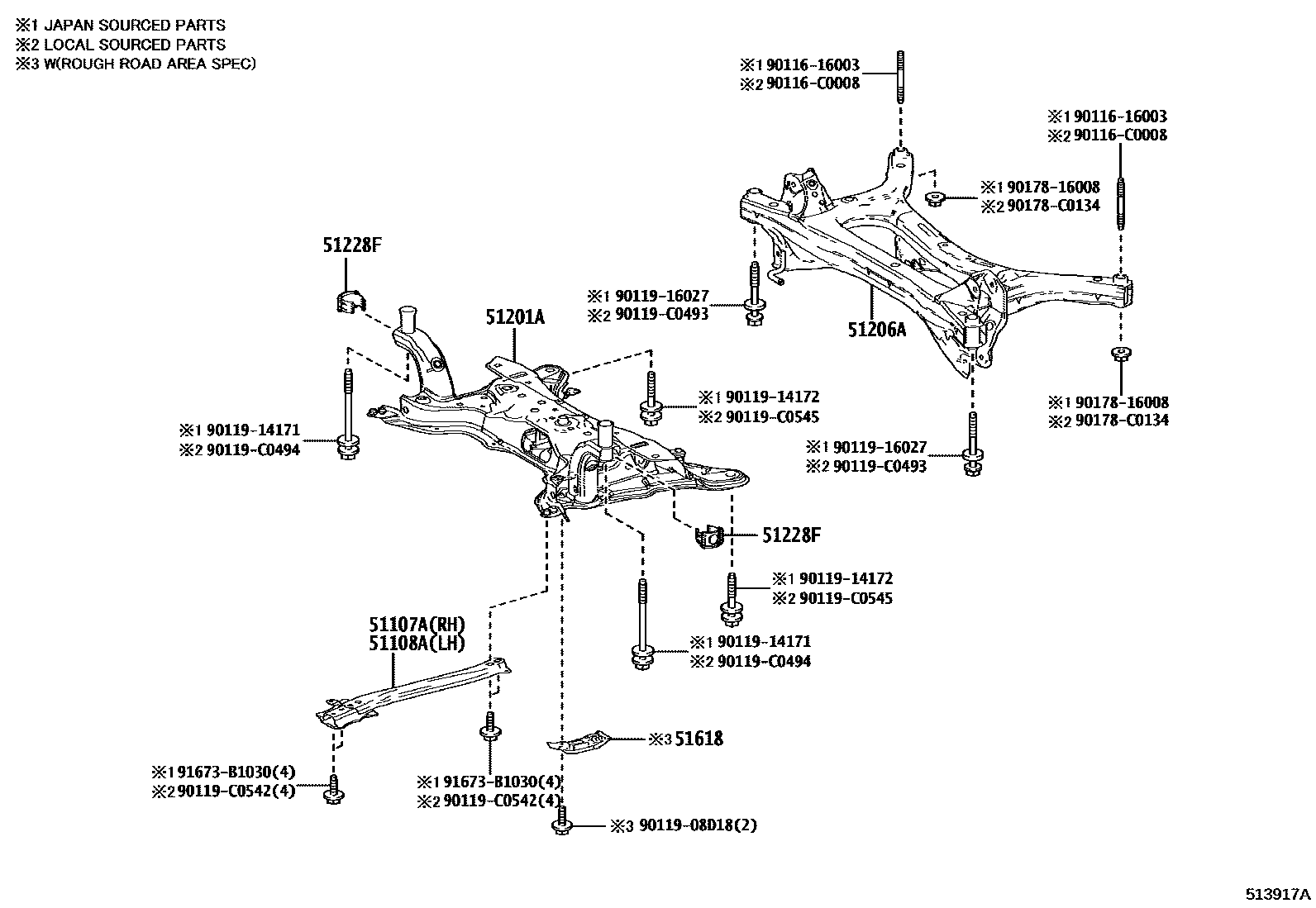

SUSPENSION CROSSMEMBER & UNDER COVER

0001 1SUSPENSION CROSSMEMBER 0002 1UNDER COVER

51107AREINFORCEMENT SUB-ASSY, SIDE RAIL, REAR RH

main51107-02130iMZEA12202104-202304

51108AREINFORCEMENT SUB-ASSY, SIDE RAIL, REAR LH

main51108-02130iMZEA12202104-202304

51201ACROSSMEMBER SUB-ASSY, FRAME, FRONT

main51201-02311iMZEA12202104-202112

sub51201-02312

main51201-02312iMZEA12,MZEH16202201-202304

51206AMEMBER SUB-ASSY, REAR SUSPENSION

main51206-02160iMZEA12202104-202304

51228FPLATE, FRONT SUSPENSION MEMBER DUMPER

main51228-F4030iMZEA12202104-202304

51618GUARD, FRONT DIFFERENTIAL SUPPORT, LH

main51618-02060iMZEA12202104-202304

ROUGH ROAD AREA SPEC-WITH(HEIGHT UP)

9011616003

main90116-16003

90116C0008

main90116-C0008

9011908D18

main90119-08D18

9011914171

main90119-14171

9011914172

main90119-14172

9011916027

main90119-16027

90119C0493

main90119-C0493

90119C0494

main90119-C0494

90119C0542

main90119-C0542

90119C0545

main90119-C0545

9017816008

main90178-16008

90178C0134

main90178-C0134

91673B1030

main91673-B1030

19 parts on this diagram · 2 diagrams in section
