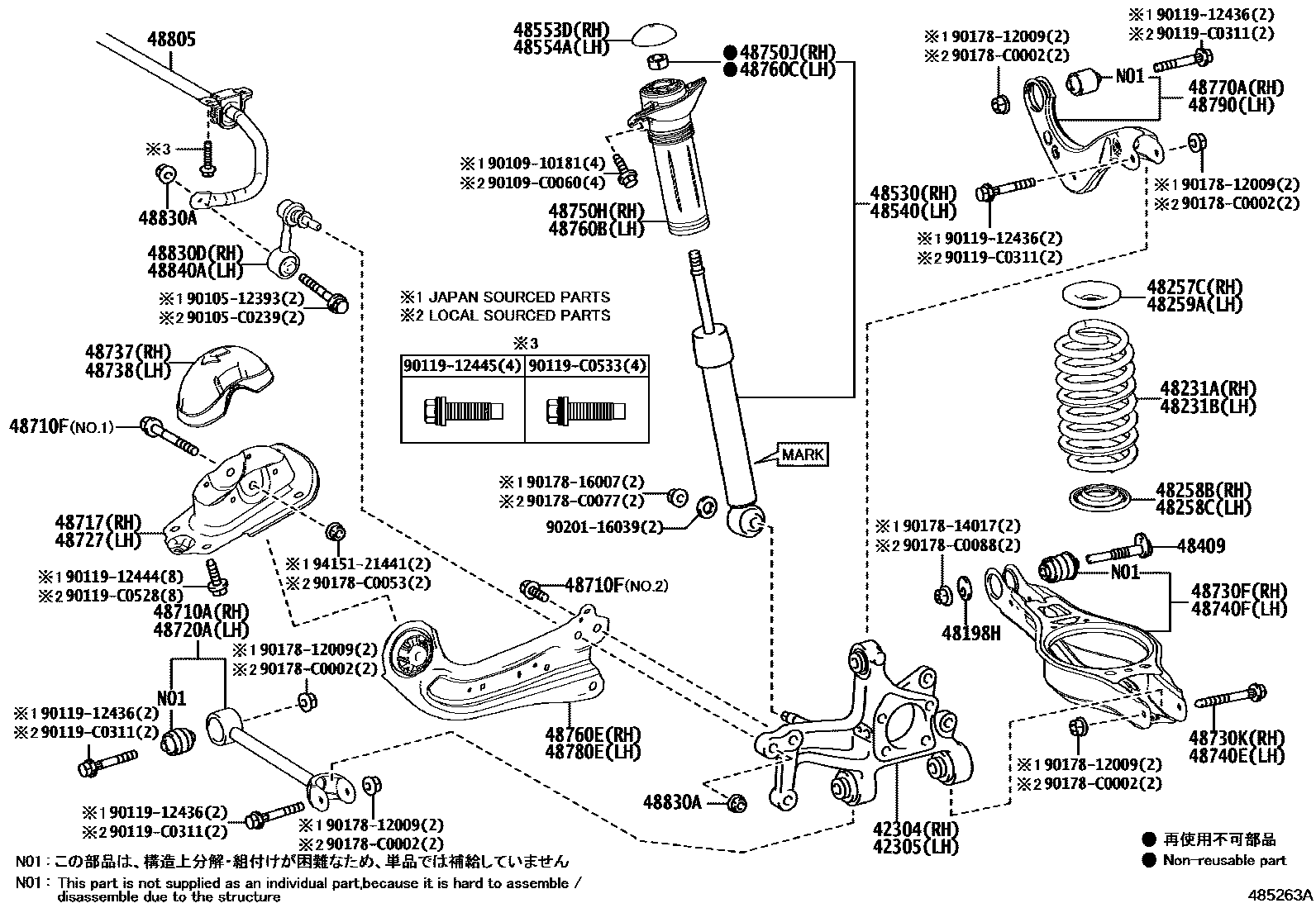

REAR SPRING & SHOCK ABSORBER

0001 1W(STABILIZER) 0002 1W/O(STABILIZER)

42304CARRIER SUB-ASSY, REAR AXLE, RH

main42304-02390iMZEA12202104-202304

42305CARRIER SUB-ASSY, REAR AXLE, LH

main42305-02390iMZEA12202104-202304

48198HCAM, CAMBER ADJUST, NO.2

main48198-02020iMZEA12,MZEH16202104-202304

(L)

main48198-47010iMZEA12202104-202304

(J)

48231ASPRING, COIL, REAR RH

main48231-02T80iMZEA12..N202104-202302

sub48231-02T81

main48231-02T81iMZEA12..E,G202302-202304

main48231-02T90iMZEA12..N202104-202302

ROUGH ROAD AREA SPEC-WITH(HEIGHT UP)

sub48231-02T91

main48231-02T91iMZEA12..E,G202302-202304

ROUGH ROAD AREA SPEC-WITH(HEIGHT UP)

main48231-02W00iMZEH16..E,G202309

main48231-02W10iMZEH16..E,G202309

ROUGH ROAD AREA SPEC-WITH(HEIGHT UP)

main48231-02W40iMZEA12..N202207-202302

sub48231-02W41

main48231-02W41iMZEA12..N202302-202304

main48231-02W50iMZEA12..N202207-202302

ROUGH ROAD AREA SPEC-WITH(HEIGHT UP)

sub48231-02W51

main48231-02W51iMZEA12..N202302-202304

ROUGH ROAD AREA SPEC-WITH(HEIGHT UP)

main48231-02Y60iMZEH16..N202309

main48231-02Y70iMZEH16..N202309

ROUGH ROAD AREA SPEC-WITH(HEIGHT UP)

48231BSPRING, COIL, REAR LH

main48231-02T80iMZEA12..N202104-202302

sub48231-02T81

main48231-02T81iMZEA12..E,G202302-202304

main48231-02T90iMZEA12..N202104-202302

ROUGH ROAD AREA SPEC-WITH(HEIGHT UP)

sub48231-02T91

main48231-02T91iMZEA12..E,G202302-202304

ROUGH ROAD AREA SPEC-WITH(HEIGHT UP)

main48231-02W00iMZEH16..E,G202309

main48231-02W10iMZEH16..E,G202309

ROUGH ROAD AREA SPEC-WITH(HEIGHT UP)

main48231-02W40iMZEA12..N202207-202302

sub48231-02W41

main48231-02W41iMZEA12..N202302-202304

main48231-02W50iMZEA12..N202207-202302

ROUGH ROAD AREA SPEC-WITH(HEIGHT UP)

sub48231-02W51

main48231-02W51iMZEA12..N202302-202304

ROUGH ROAD AREA SPEC-WITH(HEIGHT UP)

main48231-02Y60iMZEH16..N202309

main48231-02Y70iMZEH16..N202309

ROUGH ROAD AREA SPEC-WITH(HEIGHT UP)

48257CINSULATOR, REAR COIL SPRING, UPPER RH

main48257-06040iMZEA12202104-202304

48258BINSULATOR, REAR COIL SPRING, LOWER RH

main48258-06240iMZEA12202104-202304

48258CINSULATOR, REAR COIL SPRING, LOWER LH

main48258-06240iMZEA12202104-202304

48259AINSULATOR, REAR COIL SPRING, UPPER LH

main48257-06040iMZEA12202104-202304

48409CAM SUB-ASSY, REAR SUSPENSION TOE ADJUST

main48409-02010iMZEA12202104-202304

(L)

main48409-47011iMZEA12,MZEH16202104-202304

(J)

48530ABSORBER ASSY, SHOCK, REAR RH

main48530-8Z157iMZEA12202104-202304

MARK 48530-02T60

main48530-8Z254iMZEA12,MZEH16..N202305

MARK 48530-02V50

48540ABSORBER ASSY, SHOCK, REAR LH

main48530-8Z157iMZEA12202104-202304

MARK 48530-02T60

main48530-8Z254iMZEA12,MZEH16..N202305

MARK 48530-02V50

48553DCAP, REAR SHOCK ABSORBER, RH

main48553-F4020iMZEA12,MZEH16202104-202304

48554ACAP, REAR SHOCK ABSORBER, LH

main48553-F4020iMZEA12202104-202304

48710AARM ASSY, REAR SUSPENSION, NO.1 RH

main48710-F4030iMZEA12202104-202304

48710FBOLT(FOR REAR TRAILING ARM)

main90105-14195iMZEA12202104-202304

(J),NO.1:REFER ILL.

main90105-14197iMZEA12,MZEH16202104-202304

(J),NO.2:REFER ILL.

main90105-C0241iMZEA12,MZEH16202104-202304

(L),NO.1:REFER ILL.

main90105-C0245iMZEA12202104-202304

(L),NO.2:REFER ILL.

48717BRACKET, REAR SUSPENSION ARM, RH

main48717-06040iMZEA12202104-202304

48720AARM ASSY, REAR SUSPENSION, NO.1 LH

main48710-F4030iMZEA12202104-202304

48727BRACKET, REAR SUSPENSION ARM, LH

main48727-06070iMZEA12202104-202304

48730FARM ASSY, REAR SUSPENSION, NO.2 RH

main48730-F4020iMZEA12,MZEH16202104-202304

48730KBOLT(FOR REAR SUSPENSION ARM NO.2 RH)

main90119-12426iMZEA12202104-202304

(J)

main90119-C0310iMZEA12202104-202304

(L)

48737COVER, REAR SUSPENSION ARM, RH

main48753-06100iMZEA12202104-202304

48738COVER, REAR SUSPENSION ARM, LH

main48753-06110iMZEA12202104-202304

48740EBOLT(FOR REAR SUSPENSION ARM NO.2 LH)

main90119-12426iMZEA12202104-202304

(J)

main90119-C0310iMZEA12,MZEH16202104-202304

(L)

48740FARM ASSY, REAR SUSPENSION, NO.2 LH

main48730-F4020iMZEA12202104-202304

48750HSUPPORT ASSY, REAR SUSPENSION, RH

main48750-F4020iMZEA12202104-202304

48750JNUT(FOR REAR SUPPORT TO REAR SHOCK ABSORBER RH)

main90170-C0010iMZEA12,MZEH16202104-202304

(L)

main94130-61200iMZEA12202104-202304

(J)

48760BSUPPORT ASSY REAR SUSPENSION, LH

main48750-F4020iMZEA12202104-202304

48760CNUT(FOR REAR SUPPORT TO REAR SHOCK ABSORBER LH)

main90170-C0010iMZEA12202104-202304

(L)

main94130-61200iMZEA12,MZEH16202104-202304

(J)

48760EARM ASSY, TRAILING, REAR RH

main48760-F4040iMZEA12,MZEH16202104-202304

48770AARM ASSY, UPPER CONTROL, REAR RH

main48770-F4020iMZEA12,MZEH16202104-202304

48780EARM ASSY, TRAILING, REAR LH

main48780-F4040iMZEA12202104-202304

48790ARM ASSY, UPPER CONTROL, REAR LH

main48790-F4020iMZEA12202104-202304

48805BAR SUB-ASSY, REAR STABILIZER

main48805-02170iMZEA12..N202104-202304

48830ANUT(FOR REAR STABILIZER LINK)

main90178-C0018iMZEA12,MZEH16..E,G202104-202304

(L)

main94151-21241iMZEA12..N202104-202304

(J)

48830DLINK ASSY, REAR STABILIZER, RH

main48830-02050iMZEA12,MZEH16..E,G202305

main48830-F4020iMZEA12..N202104-202304

sub48830-02050

48840ALINK ASSY, REAR STABILIZER, LH

main48830-02050iMZEA12,MZEH16..E,G202305

main48830-F4020iMZEA12..E,G202104-202304

sub48830-02050

9010512393

main90105-12393

90105C0239

main90105-C0239

9010910181

main90109-10181

90109C0060

main90109-C0060

9011912436

main90119-12436

9011912444

main90119-12444

9011912445

main90119-12445

90119C0311

main90119-C0311

90119C0528

main90119-C0528

90119C0533

main90119-C0533

9017812009

main90178-12009

9017814017

main90178-14017

9017816007

main90178-16007

90178C0002

main90178-C0002

90178C0053

main90178-C0053

90178C0077

main90178-C0077

90178C0088

main90178-C0088

9020116039

main90201-16039

9415121441

main94151-21441

56 parts on this diagram · 2 diagrams in section
