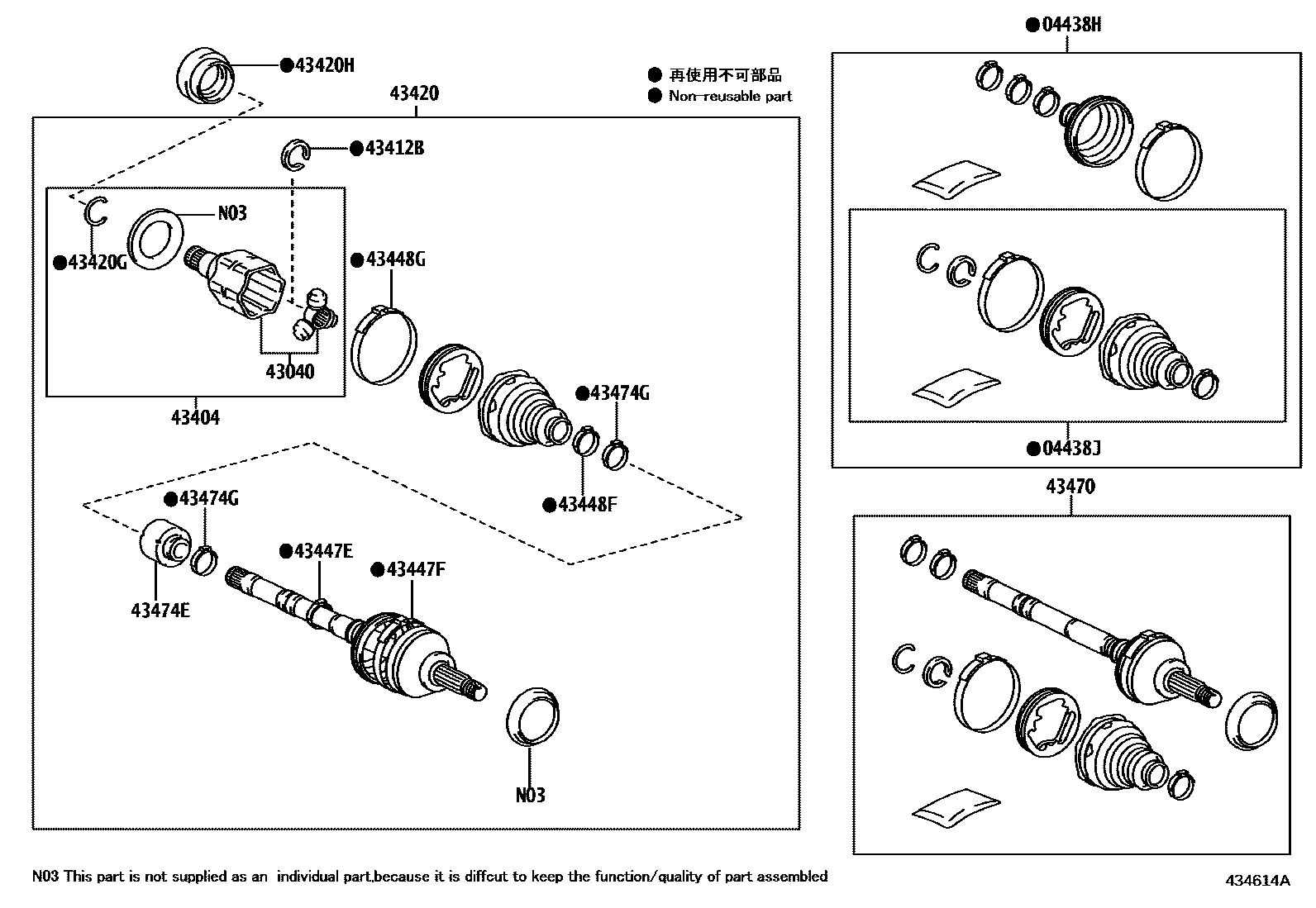

FRONT DRIVE SHAFT
04438HBOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, LH
PNC 43448F=TYPE A
PNC 43448F=TYPE B
04438JBOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, LH
PNC 43448F=TYPE A
PNC 43448F=TYPE B
43040JOINT ASSY, FRONT DRIVE INBOARD, LH
PNC 43448F=TYPE A
PNC 43448F=TYPE B
43404JOINT SET, FRONT AXLE INBOARD, LH
PNC 43448F=TYPE B
43412BRING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER LH)
(J),PNC43448F=TYPE A
PNC 43448F=TYPE B
(L),PNC43448F=TYPE A
43420GRING, HOLE SNAP (FOR FRONT DRIVE SHAFT LH)
PNC 43448F=TYPE B
(L),PNC43448F=TYPE A
(J),PNC43448F=TYPE A
43420HOIL SEAL, FRONT DRIVE SHAFT, LH
43447ECLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
TYPE A:REFER ILLUST.
TYPE B:REFER ILLUST.
43447FCLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
TYPE A:REFER ILLUST.
TYPE B:REFER ILLUST.
43448FCLAMP (FOR FRONT AXLE INBOARD JOINT BOOT LH)
TYPE A:REFER ILLUST.
TYPE B:REFER ILLUST.
43448GCLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH)
TYPE A:REFER ILLUST.
TYPE B:REFER ILLUST.
43470SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, LH
PNC 43448F=TYPE B
PNC 43448F=TYPE A
43474EDAMPER, FRONT DRIVE SHAFT, LH
PNC 43448F=TYPE A
PNC 43448F=TYPE B
43474GCLAMP (FOR FRONT DRIVE SHAFT DAMPER LH)
PNC 43448F=TYPE B
(L),PNC43448F=TYPE A
(J),PNC43448F=TYPE A
15 parts on this diagram · 5 diagrams in section
