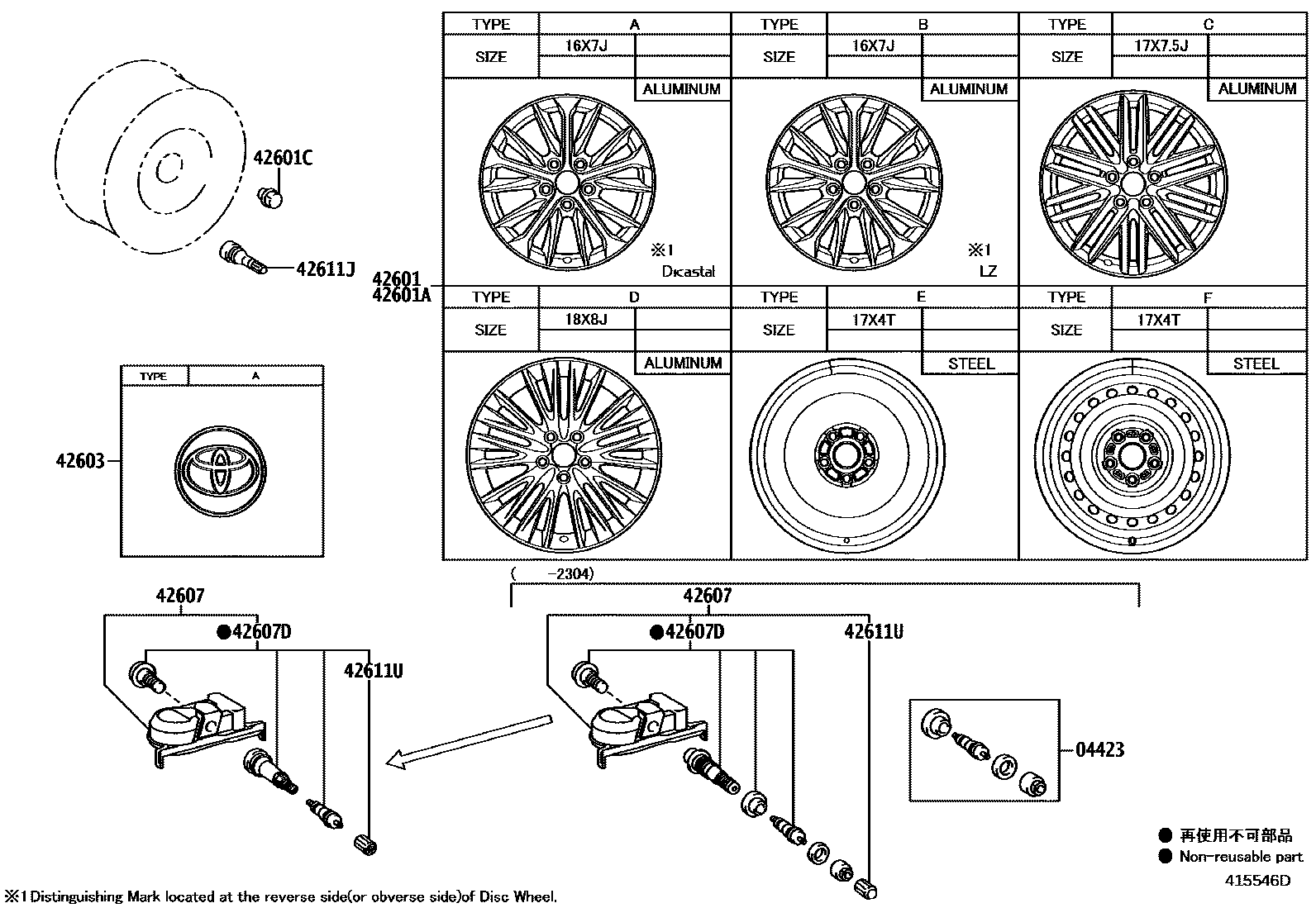

DISC WHEEL & WHEEL CAP

0001 1DISC WHEEL & WHEEL HUB ORNAME0002 1BALANCE WEIGHT

04423FITTING KIT, TIRE PRESSURE MONITOR OR BALANCER VALVE

main04423-0N010iMZEA12202104-202304

42601WHEEL, DISC

main42611-02W10iMZEA12,MZEH16..N202104-202304

16X7J,#,TYPE A:REFER ILLUST.

main42611-02W20iMZEA12,MZEH16..N202104-202304

16X7J,#,TYPE B:REFER ILLUST.

main42611-02W30iMZEA12..E202104-202304

17X7.5J,#,LEATHER PACKAGE,TYPE C:REFER ILLUST.

main42611-02W30iMZEA12,MZEH16..E202305

17X7.5J,#,TYPE C:REFER ILLUST.

main42611-02X00iMZEA12..G202104-202304

18X8J,#,TYPE D:REFER ILLUST.

42601AWHEEL, DISC (FOR SPARE)

main42611-02Q11iMZEA12202104-202304

17X4T,TYPE E:REFER ILLUST.

main42611-02Q21iMZEA12,MZEH16202104-202304

17X4T,TYPE F:REFER ILLUST.

42601CNUT, HUB (FOR AXLE)

main90942-C1001iMZEA12202104-202304

42603ORNAMENT SUB-ASSY, WHEEL HUB

main42603-0R020iMZEA12202104-202304

*ALU,TYPE A:REFER ILLUST.

42607VALVE SUB-ASSY, TIRE PRESSURE MONITOR

main42607-02090iMZEA12202104-202304

main42607-02110iMZEA12,MZEH16202305

42607DVALVE, TIRE PRESSURE MONITOR

main90942-C5003iMZEA12202104-202304

main90942-C5009iMZEA12,MZEH16202305

42611JVALVE (FOR TUBELESS TIRE SPARE)

main90942-05009iMZEA12202104-202304

(J)

main90942-C5004iMZEA12,MZEH16202104-202304

(L)

42611UCAP, TIRE VALVE

main90942-C5001iMZEA12,MZEH16202104-202304

9 parts on this diagram · 2 diagrams in section
