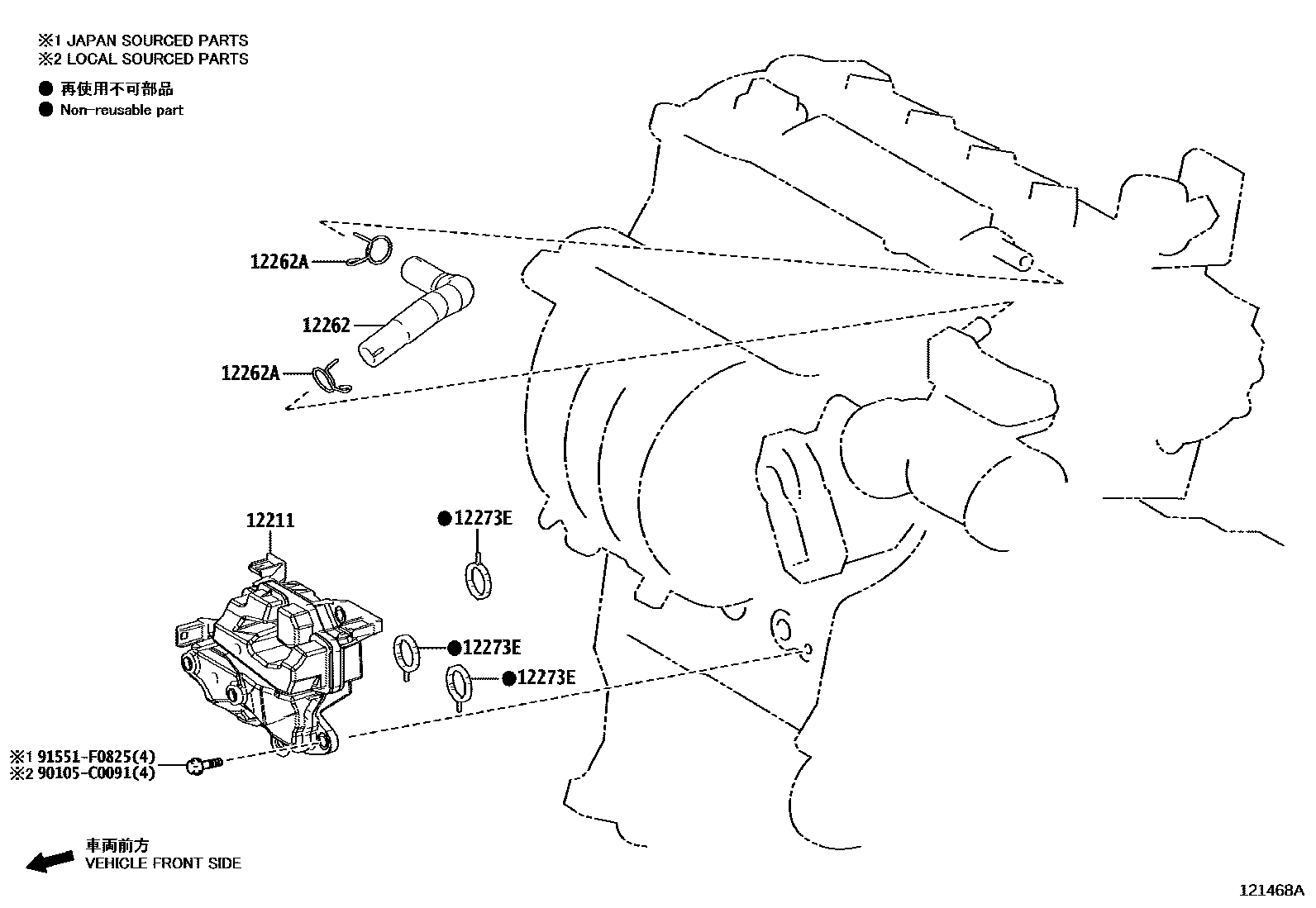

VENTILATION HOSE

0001 1 0002 1

12211CASE, VENTILATION, NO.1

main12211-24010iM20..MZEA12202104-202208

*632

main12211-24020iM20..MZEA12202208-202304

*632

main12211-F2040iM20..MZEA12202104-202304

*633

12262HOSE, VENTILATION, NO.2

main12262-24020iM20..MZEA12202104-202304

main12262-24040iM20..MZEH16202309

12262ACLIP(FOR VENTILATION HOSE NO.2)

main90467-21004iM20..MZEA12202104-202304

12273EGASKET(FOR VENTILATION CASE)

main12273-24010iM20..MZEA12202104-202304

*632

main12273-F2020iM20..MZEA12202104-202304

*633

90105C0091

main90105-C0091

91551F0825

main91551-F0825

6 parts on this diagram · 2 diagrams in section
