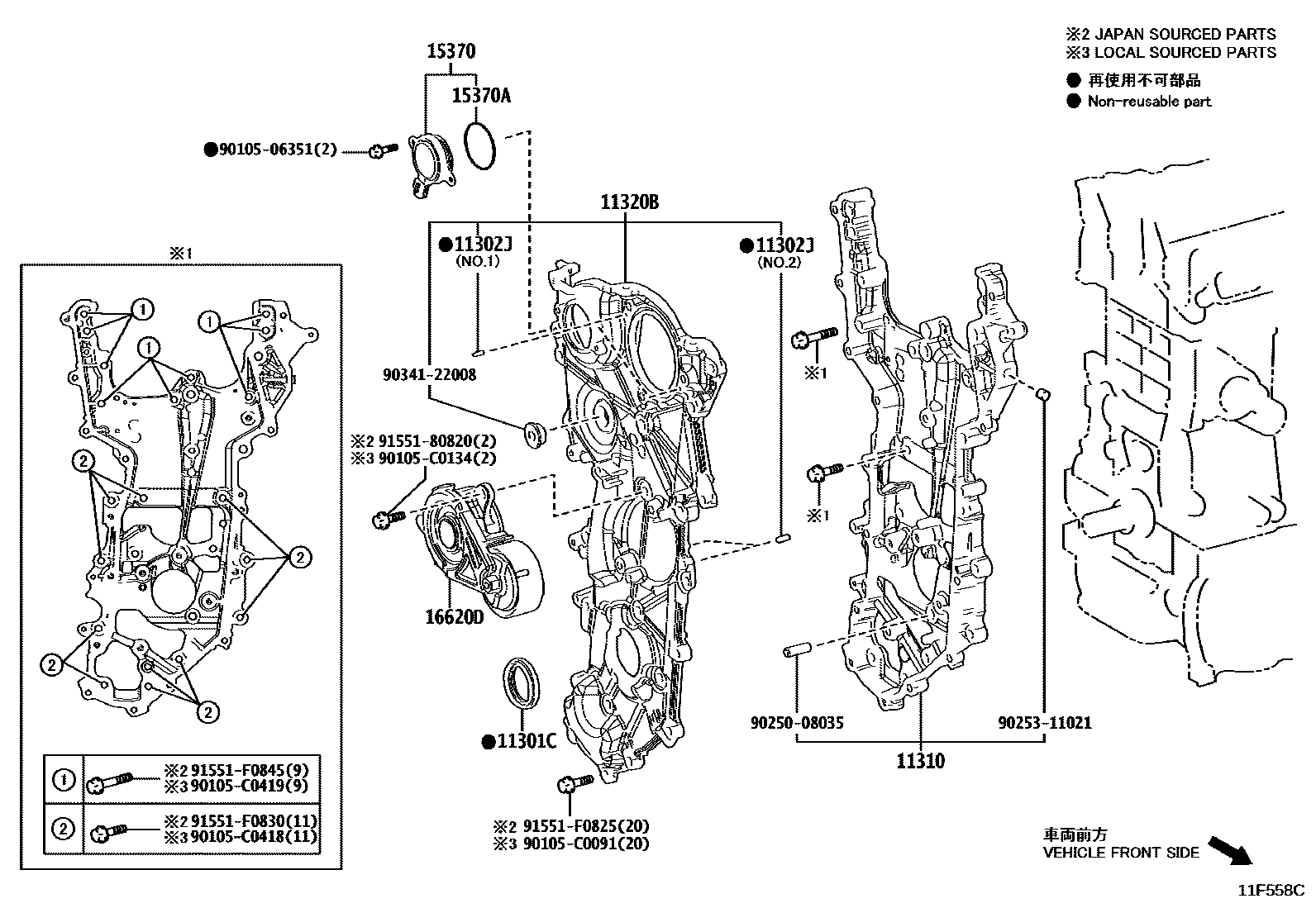

TIMING GEAR COVER & REAR END PLATE
11301CSEAL, OIL(FOR TIMING GEAR CASE OR TIMING CHAIN CASE)
*632
*633
11302JPIN, STRAIGHT(FOR TIMING CHAIN COVER)
*632,NO.1:REFER ILL.
*632,NO.2:REFER ILL.
*633,NO.2:REFER ILL.,*632,NO.2:REFER ILL.
*633,NO.2:REFER ILL.
*633,NO.1:REFER ILL.
11310COVER ASSY, TIMING CHAIN
*632
*633
11320BCOVER ASSY, TIMING CHAIN, NO.2
*632
*633
15370SOLENOID ASSY, CAM TIMING OIL CONTROL
*632
*633
*633,*632
15370ARING, O(FOR CAM TIMING OIL CONTROL SOLENOID)
*632
*633,*632
*633
16620DTENSIONER ASSY, V-RIBBED BELT
*632
*632
*633
*633
9010506351
90105C0091
main90105-C0091
90105C0134
main90105-C0134
90105C0418
main90105-C0418
90105C0419
main90105-C0419
9025008035
9025311021
9034122008
9155180820
91551F0825
91551F0830
91551F0845
19 parts on this diagram · 2 diagrams in section
