HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

0001 1HEATER CONTROL PANEL 0002 1AIR DUCT 0003 1AIR DUCT 0004 1SENSOR 0005 1SENSOR 0006 1SENSOR

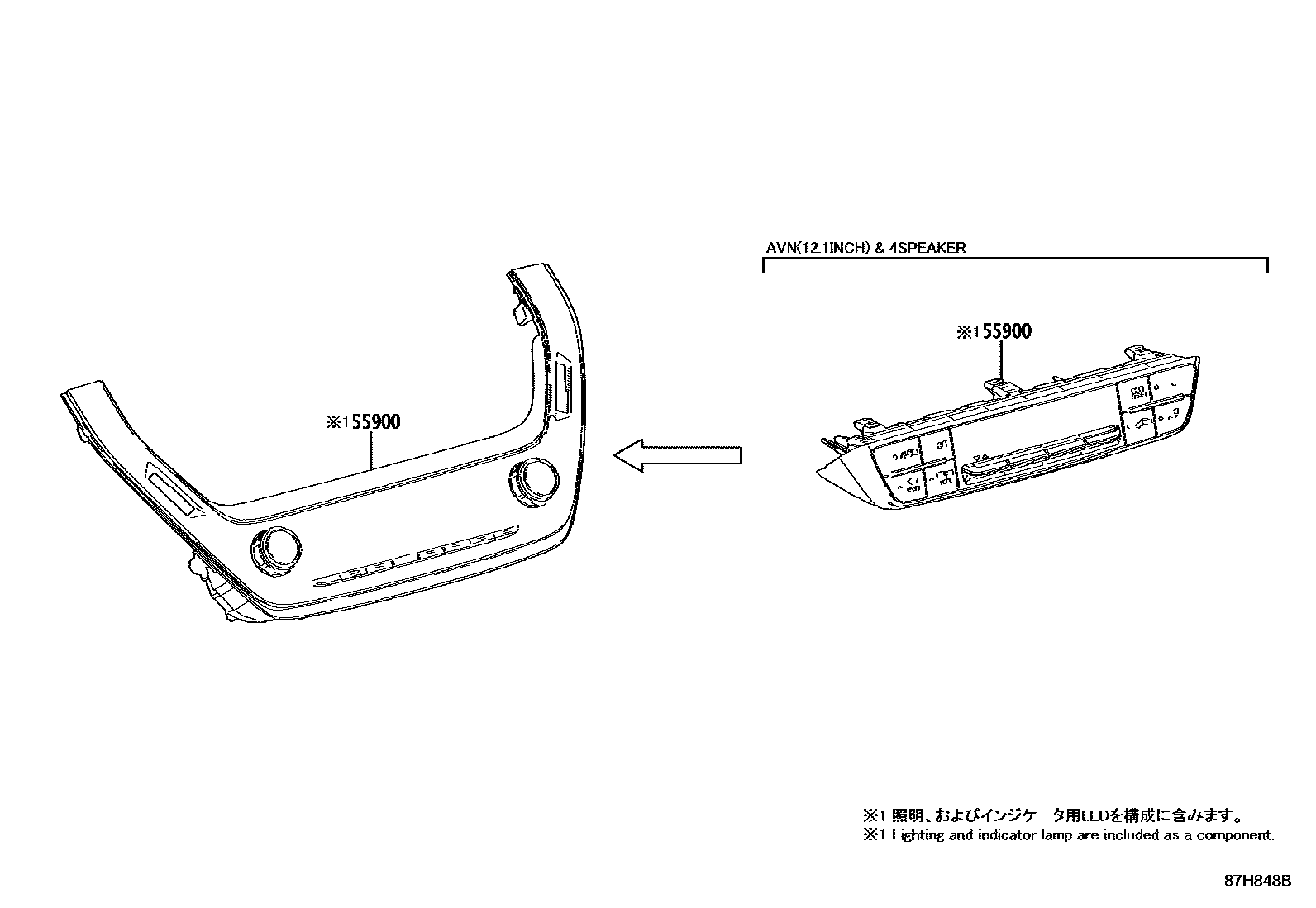

55900CONTROL ASSY, AIR CONDITIONER

main55900-02750-B0iMZEA11,NRE210..CVT..(E,N)201906-202111

SILVER,TRIM1#,2#

main55900-02751-B0iNRE210..E202111-202303

SILVER,TRIM1#,2#

main55900-02G80-B0iZWE211;MZEA11,NRE210..G201906-202111

SILVER,TRIM1#,2#

main55900-02G81-B0iZWE211;MZEA11,NRE210..G202111-202303

SILVER,TRIM1#,2#

main55900-02M80-B0iMZEA17..E,N202304

SILVER,TRIM2#

main55900-02M80-B0iMZEA17..G202304

SILVER,TRIM2#,4#

main55900-02M90-B0iZWE219..G202304-202307

SILVER,TRIM2#

main55900-02M90-B0iZWE219..E202307-202407

SILVER,TRIM20

main55900-02M90-B0iZWE219..G202304

SILVER,TRIM2#,4#

main55900-02M90-B1iZWE219..E202307-202407

DK.SILVER,TRIM20

1 parts on this diagram · 6 diagrams in section
