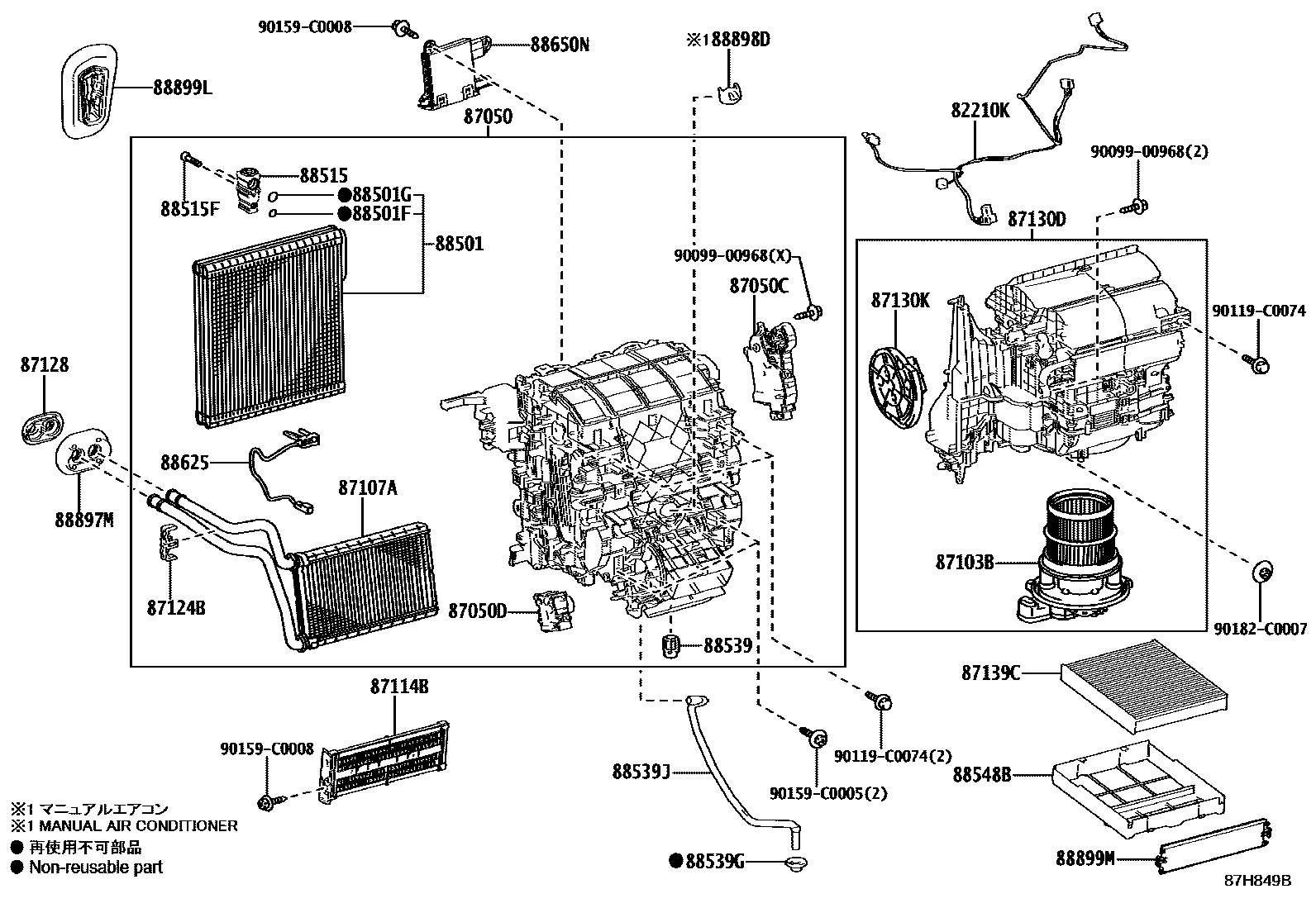

HEATING & AIR CONDITIONING - COOLER UNIT

0001 1 0002 1 0003 1

82210KHARNESS ASSY, AIR CONDITIONER

main82212-02310iNRE210..E201906-202303

main82212-02330iZWE211..G201906-202111

main82212-02340iZWE211..E,N201906-202007

main82212-02720iMZEA17,ZWE219202304

main82212-F4050iNRE210..E,N201906-202007

87050RADIATOR ASSY, AIR CONDITIONER

main87050-0Z180iNRE210..E201906-202303

main87050-0Z190iNRE210..E,N201906-202007

main87050-0Z210iZWE211..G201906-202111

main87050-0Z220iZWE211..E,N201906-202007

main87050-0ZD70iZWE211202111-202303

main87050-0ZJ30iMZEA17202304

main87050-0ZJ40iZWE219202304

87050CDAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.1

main87106-02B60iMZEA17,ZWE219202304

main87106-F4140iNRE210..G,N;MZEA11,ZWE211..CVT201906-202303

87050DDAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.2

main87106-02710iNRE210..E201906-202303

main87106-02B50iMZEA17,ZWE219202304

87103BMOTOR SUB-ASSY, BLOWER W/FAN

main87103-02770iMZEA17,ZWE219202304

main87103-06130iNRE210..G,N;MZEA11,ZWE211..CVT201906-202303

87107AUNIT SUB-ASSY, HEATER RADIATOR

main87107-F4050iNRE210..E201906-202303

87114BCOVER, HEATER

main87114-02180iNRE210..E201906-202303

main87114-0A090iMZEA17,ZWE219202304

87124BCLAMP, HEATER

main87124-06110iNRE210..G,N;MZEA11,ZWE211..CVT201906-202303

87128GROMMET, HEATER

main87128-0A040iNRE210..E202204-202303

(L)

main87128-28010iMZEA11,NRE210,ZWE211..CVT201906-202204

main87128-28010iNRE210..E202204-202303

(J)

87130DBLOWER ASSY

main87130-02D30iMZEA17,ZWE219202304

main87130-06420iNRE210..G,N;MZEA11,ZWE211..CVT201906-202303

87130KDAMPER SERVO SUB-ASSY, BLOWER, NO.1

main87106-02B80iMZEA17,ZWE219202304

main87106-06390iNRE210..G,N;MZEA11,ZWE211..CVT201906-202303

87139CFILTER, CLEAN AIR

main87139-02270iMZEA11,NRE210,ZWE211202102-202303

STANDARD,OE PART

sub87139-06170

main87139-02280iMZEA17,ZWE219202304

STANDARD,OE PART

main87139-06150iMZEA11,NRE210,ZWE211201906-202102

STANDARD,OE PART

main87139-06170iNRE210..E202304

STANDARD,OE PART

main87139-58010iNRE210..G,N;MZEA11,ZWE211201906-202303

DEODORANT FILTER

88501EVAPORATOR SUB-ASSY, COOLER, NO.1

main88501-02420iNRE210..E201906-202303

main88501-02430iZWE211201906-202111

main88501-F4140iZWE219202111-202303

88501FO-RING, COOLER EVAPORATOR NO.1(DISCHARGE)

main90099-14120iZWE211201906-202303

ID=10.8,OD=15.6

88501GO-RING, COOLER EVAPORATOR NO.1(SUCTION)

main90099-14121iZWE211201906-202303

ID=13.4,OD=18.2

88515VALVE, COOLER EXPANSION

main88515-02670iZWE211201906-202111

main88515-06150iMZEA17,ZWE219201906-202303

88515FBOLT(FOR COOLER EXPANSION VALVE)

main90099-04542iMZEA11..CVT;NRE210..G,N201906-202303

88539HOSE, COOLER UNIT DRAIN, NO.1

main88899-10110iNRE210..E201906-202303

88539GGROMMET (FOR COOLER UNIT DRAIN HOSE)

main88888-06030iNRE210..G,N;MZEA11,ZWE211..CVT201906-202303

88539JHOSE, DRAIN COOLER

main88539-0A080iMZEA17,ZWE219202304

main88539-F4080iNRE210..G,N;MZEA11,ZWE211..CVT201906-202303

88548BCASE, AIR FILTER

main88899-02490iMZEA11,NRE210,ZWE211202102-202303

sub88899-02491

main88899-02491iNRE210..E202304

main88899-06160iMZEA11,NRE210,ZWE211201906-202102

88625THERMISTOR, COOLER, NO.1

main88620-06070iZWE211201906-202111

main88620-06080iMZEA11..CVT;NRE210..G,N201906-202303

88650NAMPLIFIER ASSY, AIR CONDITIONER

main88650-02M20iNRE210,ZWE211201906-202007

main88650-02M21iMZEA11,NRE210,ZWE211..CVT202007-202111

sub88650-02N80

main88650-02M22iNRE210..G,N;MZEA11,ZWE211..CVT202111-202303

main88650-02M40iMZEA17,ZWE219202304-202406

sub88650-02M41

main88650-02M41iMZEA17,ZWE219202407

88897MGROMMET (FOR HEATER PIPE)

main87128-F4070iNRE210..E201906-202303

88898DGROMMET

main88899-0A080iMZEA17202304

main88899-F4380iNRE210..N;MZEA11..E,N201906-202303

88899LPARTS, COOLING UNIT

main88899-02390iZWE211..E,N201906-202111

main88899-F4340iMZEA11..CVT;NRE210..G,N201906-202303

88899MPLATE, COVER(FOR AIR FILTER)

main88899-06110iNRE210..G,N;MZEA11,ZWE211..CVT201906-202303

main88899-0A090iMZEA17,ZWE219202304

9009900968

main90099-00968

90119C0074

main90119-C0074

90159C0005

main90159-C0005

90159C0008

main90159-C0008

90182C0007

main90182-C0007

32 parts on this diagram · 3 diagrams in section
