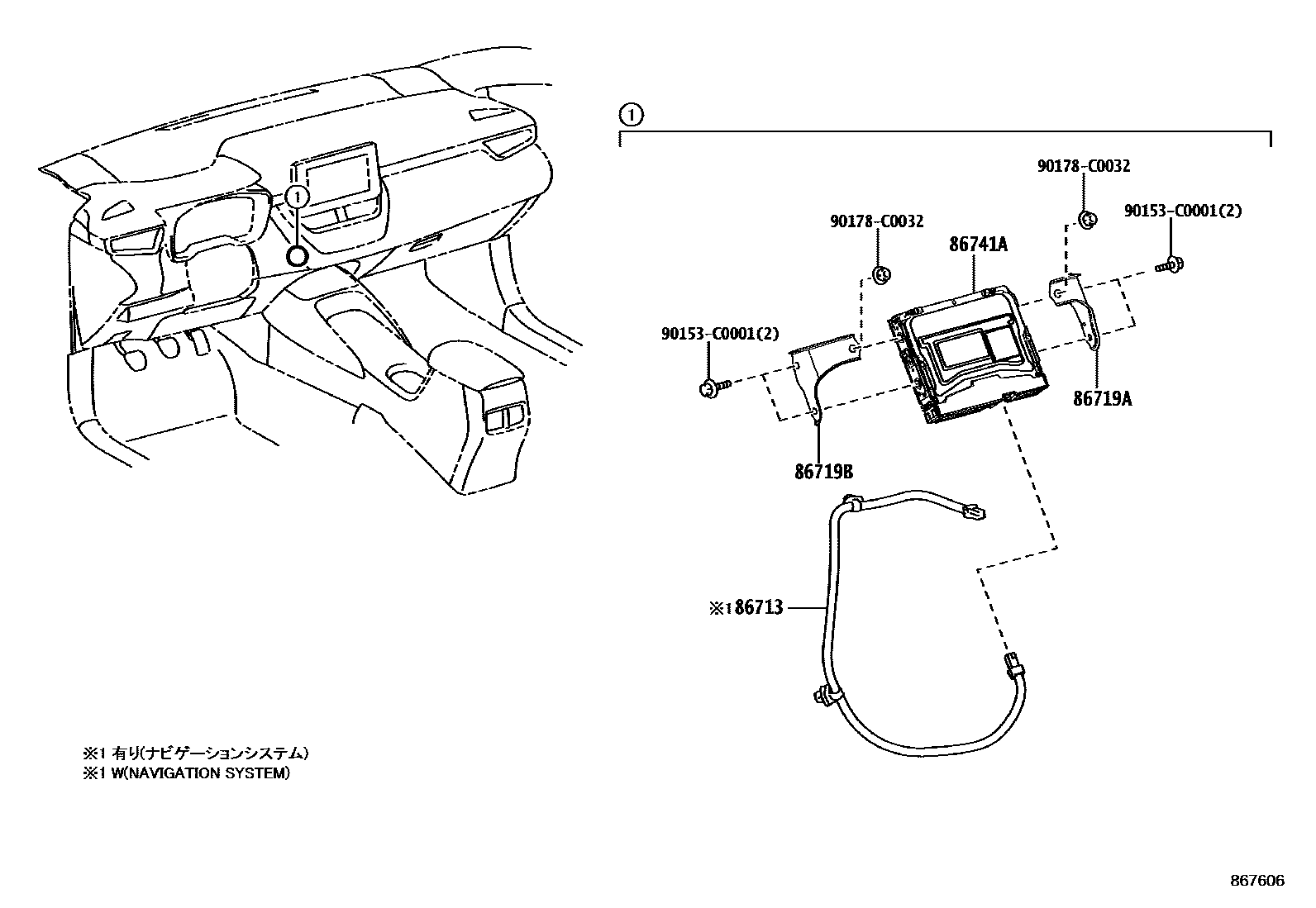

TELEPHONE & MAYDAY

0001 1 0002 1

86713WIRE, TELEPHONE COMPUTER

main86713-02060iNRE210..G;MZEA11,ZWE211..E,G202007-202303

main86713-02150iMZEA17,ZWE219202304

main86713-02030iMZEA11,ZWE211..E202007-202303

TECH PACKAGE

86719ABRACKET, TELEPHONE NO.1

main86719-02100iNRE210..G,N;MZEA11,ZWE211201906-202303

86719BBRACKET, TELEPHONE NO.2

main86719-02110iNRE210..G,N;MZEA11,ZWE211201906-202303

86741ATRANSCEIVER, TELEMATICS

main86741-02051iNRE210,ZWE211201906-202006

sub86741-02100

main86741-02100iMZEA11,NRE210,ZWE211202007-202110

main86741-02230iMZEA17,ZWE219202304

main86741-06100iMZEA11,NRE210,ZWE211202110-202303

main86741-08020iNRE210..E202304-202403

main86741-F4060iNRE210..E202403

90153C0001

main90153-C0001

90178C0032

main90178-C0032

6 parts on this diagram · 2 diagrams in section
