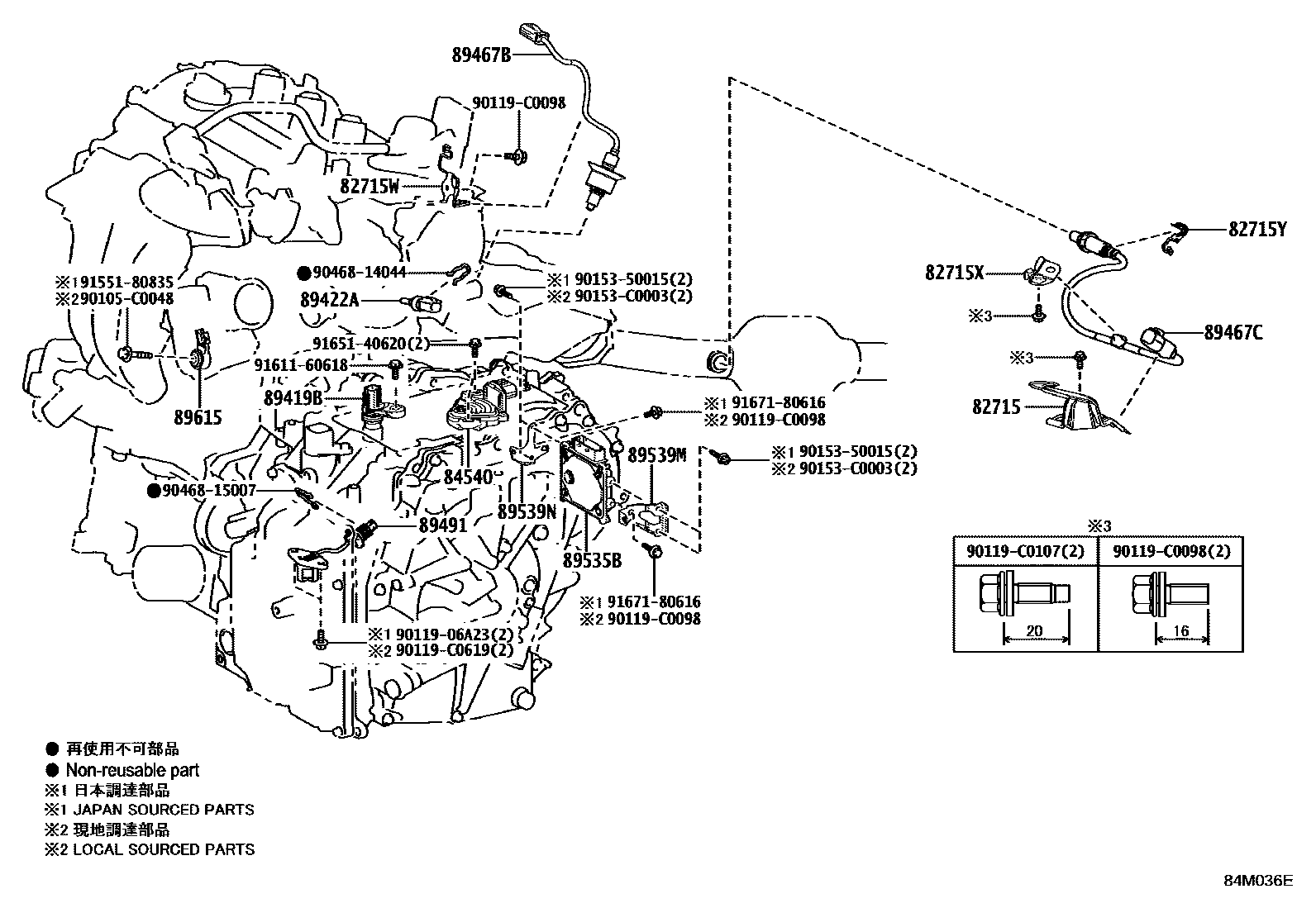

SWITCH & RELAY & COMPUTER

0001 1ENGINE & TRANSMISSION 0002 1ENGINE & TRANSMISSION 0003 1ENGINE & TRANSMISSION 0004 1ENGINE & TRANSMISSION 0005 1ENGINE ROOM 0006 1ENGINE ROOM 0007 1ENGINE ROOM 0008 1ENGINE ROOM RELAY BLOCK 0009 1ENGINE ROOM RELAY BLOCK 0010 1ENGINE ROOM RELAY BLOCK 0011 1ENGINE ROOM RELAY BLOCK 0012 1ENGINE ROOM RELAY BLOCK 0013 1COWL 0014 1COWL 0015 1INSTRUMENT PANEL 0016 1INSTRUMENT PANEL 0017 1STEERING 0018 1SEAT 0019 1DOOR & ROOF 0020 1FLOOR & LUGGAGE

82715BRACKET,WIRING HARNESS CLAMP

main82715-02Y51iZWE219202304

main82715-0Z750iNRE210..E201906-202303

82715WBRACKET, WIRING HARNESS CLAMP

main82715-0Z710iZWE211201906-202303

main82715-0Z740iNRE210..G,N201906-202303

main82715-0Z770iMZEA11..CVT202101-202303

82715XBRACKET, WIRING HARNESS CLAMP, NO.2

main82715-02Y51iZWE219202304

main82715-F4360iNRE210..E201906-202303

82715YBRACKET, WIRING HARNESS CLAMP, NO.3

main82729-20040iNRE210..G,N;MZEA11,ZWE211..CVT¥220201906-202303

84540SWITCH ASSY, NEUTRAL START

main84540-02020iNRE210..G,N201906-202303

TMCAP:REFER 34-01

main84540-52070iNRE210..G,N¥7,600201906-202303

TMH:REFER 34-01

main84540-K0010iMZEA11..CVT¥7,600202101-202303

TMCAP:REFER 34-01

main89451-42010iMZEA17¥5,900202304

89419BSENSOR, SHIFT STROKE

main89419-K2010iMZEA11¥4,100202101-202303

main89419-K2010iMZEA17¥4,100202304

MARK=HK-82

89422ASENSOR, WATER TEMPERATURE

main89422-33040iMZEA11¥2,410202101-202303

main89422-47010iNRE210..E¥2,410201906-202303

89467BSENSOR, AIR FUEL RATIO

main89467-02120iNRE210..G,N201906-202303

main89467-02230iZWE211201906-202303

main89467-02250iMZEA11..CVT202101-202303

main89467-02290iZWE219202304

89467CSENSOR, AIR FUEL RATIO, NO.2

main89467-02240iMZEA11..CVT202101-202303

main89467-02300iMZEA17202304

main89467-F4020iNRE210..E201906-202303

89491SENSOR, ENGINE OIL LEVEL

main89491-28090iZWE211¥3,670202104-202201

sub89491-28091¥3,330

main89491-28091iZWE219¥3,330202202-202303

main89491-47011iZWE211¥3,670201906-202103

sub89491-28090¥3,670

main89491-50081iMZEA11¥3,670202101-202204

*617,*616

sub89491-50082¥3,330

main89491-50081iNRE210¥3,670202007-202204

*474

sub89491-50082¥3,330

main89491-50081iNRE210¥3,670201906-202201

*497,*615

sub89491-50082¥3,330

main89491-50082iNRE210¥3,330202205-202303

*474

main89491-50082iNRE210..G,N¥3,330202202-202303

*497,*615

main89491-50082iNRE210¥3,330202205-202303

*617,*616

main89491-50082iMZEA17¥3,330202304

*617

89535BCOMPUTER, TRANSMISSION CONTROL

main89535-02010iMZEA11..CVT202101-202303

89539MBRACKET, TRANSMISSION CONTROL COMPUTER, NO.1

main89539-02020iMZEA11..CVT202101-202303

89539NBRACKET, TRANSMISSION CONTROL COMPUTER, NO.2

main89539-02010iMZEA11..CVT202101-202303

89615SENSOR, KNOCK CONTROL

main89615-02040iNRE210201906-202007

main89615-02040iNRE210..E202007-202303

MARK 89615-02040

main89615-20090iMZEA17,ZWE219¥2,370201906-202303

main89615-20090iNRE210..G,N¥2,370202007-202303

MARK 89615-20090

90105C0048

main90105-C0048

9011906A23

main90119-06A23¥60

90119C0098

main90119-C0098

90119C0107

main90119-C0107

90119C0619

main90119-C0619

9015350015

main90153-50015¥60

90153C0003

main90153-C0003

9046814044

main90468-14044¥60

9046815007

main90468-15007¥80

9155180835

main91551-80835¥80

9161160618

main91611-60618¥120

9165140620

main91651-40620¥70

9167180616

main91671-80616¥60

27 parts on this diagram · 20 diagrams in section
