82111WIRE, ENGINE ROOM MAIN

main82111-F2170iZWE211..N201906-202007

ACTIVE SAFETY PACKAGE-TOYOTA SAFETY SENSE

main82111-F2171iZWE211..E202007-202111

ACTIVE SAFETY PACKAGE-TOYOTA SAFETY SENSE

main82111-F2320iMZEA11..E202101-202111

SPORT PACKAGE

main82111-FE120iZWE219202304

main82111-FE300iZWE211..N202111-202303

main82111-FE310iMZEA11..E202111-202303

SPORT PACKAGE

main82111-FEM90iMZEA17..N202304

VFM PACKAGE

main82111-FEN00iMZEA17..N202304

main82115-F2490iNRE210..N201906-202007

ACTIVE SAFETY PACKAGE-TOYOTA SAFETY SENSE

main82115-F2491iNRE210..E,G202007-202111

ACTIVE SAFETY PACKAGE-TOYOTA SAFETY SENSE

main82115-F2492iNRE210..N202111-202303

ACTIVE SAFETY PACKAGE-TOYOTA SAFETY SENSE

main82115-F2492iNRE210..E202111-202304

main82115-F2500iZWE211..G201906-202007

TECH PACKAGE

main82115-F2501iZWE211..N202111-202303

ACTIVE SAFETY PACKAGE-TOYOTA SAFETY SENSE

main82115-F2501iZWE211..G202007-202303

main82115-F2501iZWE211..E202007-202111

TECH PACKAGE

main82115-F2510iMZEA11..E202101-202111

TECH PACKAGE

main82115-F2510iMZEA11..E202101-202303

main82115-F2540iNRE210..E201906-202007

SPORT PACKAGE

main82115-F2541iNRE210..E202007-202111

SPORT PACKAGE

main82115-F2542iNRE210..E202111-202304

SPORT PACKAGE

main82115-F2543iNRE210..E202304-202403

main82115-F2544iNRE210..E202403

main82115-F2550iZWE211..E201906-202007

SPORT PACKAGE

main82115-F2551iZWE211..E202007-202111

SPORT PACKAGE

main82115-F2552iZWE211..E202111-202303

SPORT PACKAGE

main82115-F2590iNRE210..N201906-202007

main82115-F2591iNRE210..N202007-202111

main82115-F2592iNRE210..N202111-202303

main82115-F2600iZWE211..N201906-202007

main82115-F2601iZWE211..N202007-202111

main82115-F2610iMZEA11..N202101-202303

main82115-F2L80iMZEA11..N202101-202303

ACTIVE SAFETY PACKAGE-TOYOTA SAFETY SENSE

main82115-F2L80iMZEA11..E202101-202111

main82115-F2W10iMZEA17..E,G202304

9011906A06

main90119-06A06

90119C0307

main90119-C0307

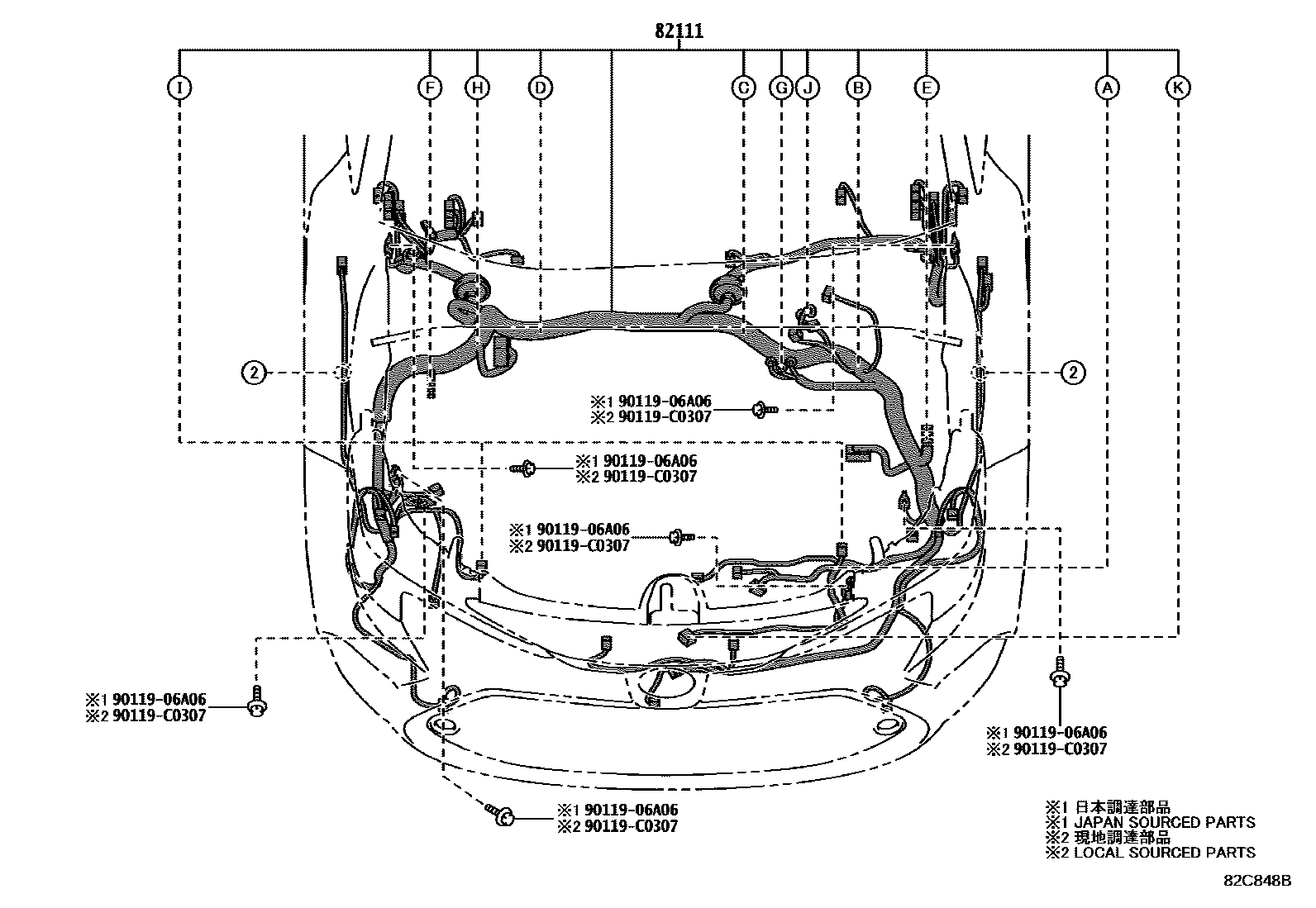

3 parts on this diagram · 32 diagrams in section
