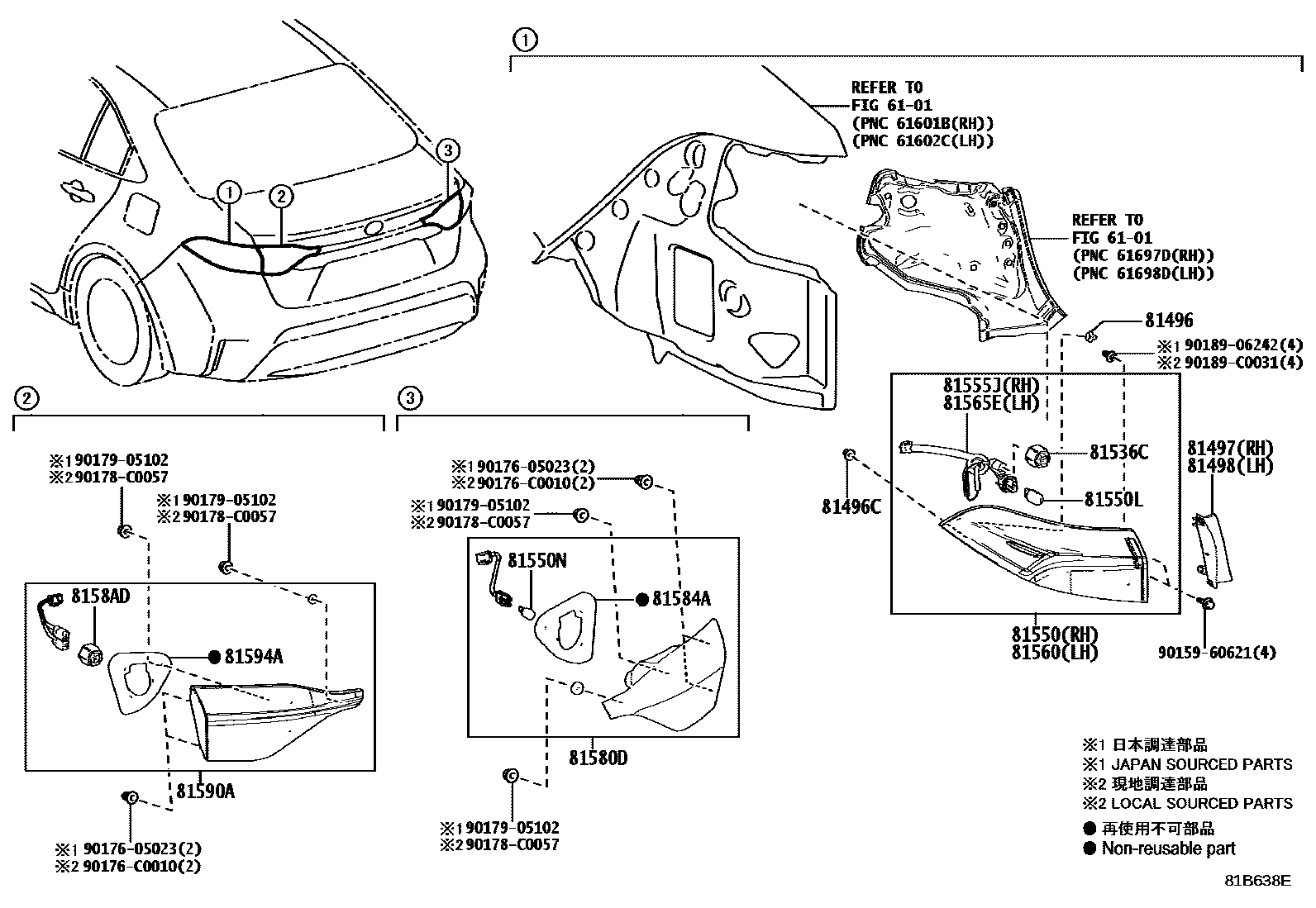

REAR COMBINATION LAMP

6101

81496GUIDE, REAR COMBINATION LAMP

main81496-60010iMZEA17,ZWE219202304

main90467-C0019iNRE210..E201906-202303

##

81496CGUIDE, REAR COMBINATION LAMP, NO.2

main81496-0D030iMZEA17,ZWE219201906-202303

81497COVER, REAR COMBINATION LAMP, RH

main81497-02100iNRE210..G,N;MZEA11,ZWE211201906-202303

81498COVER, REAR COMBINATION LAMP, LH

main81498-02100iNRE210..G,N;MZEA11,ZWE211201906-202303

81536CLED, TAIL & STOP LAMP

main81965-02050iZWE211202112-202303

81550LAMP ASSY, REAR COMBINATION, RH

main81550-02A30iNRE210201906-201910

sub81550-02A31

main81550-02A31iMZEA11;NRE210..G,N201911-202304

main81550-02D90iZWE211201906-201910

sub81550-02D91

main81550-02D91iZWE211201911-202110

sub81550-02D92

main81550-02D92iZWE211202111-202112

sub81550-02D93

main81550-02D93iZWE211202112-202303

main81550-02F50iMZEA17,ZWE219202304

81550LBULB, REAR TURN SIGNAL LAMP

main90981-CB004iNRE210..E201906-202303

12V 21W

81550NBULB, BACK UP LAMP

main90981-CB002iNRE210..E201906-202304

12V 21W

81555JSOCKET & WIRE, REAR COMBINATION LAMP, RH

main81555-02A30iMZEA11;NRE210..G,N201906-202304

main81555-02D90iZWE211201906-202303

main81555-02F50iMZEA17,ZWE219202304

81560LAMP ASSY, REAR COMBINATION, LH

main81560-02A30iNRE210201906-201910

sub81560-02A31

main81560-02A31iNRE210..E201911-202304

main81560-02D90iZWE211201906-201910

sub81560-02D91

main81560-02D91iZWE211201911-202110

sub81560-02D92

main81560-02D92iZWE211202111-202112

sub81560-02D93

main81560-02D93iZWE211202112-202303

main81560-02F50iNRE210..E202304

81565ESOCKET & WIRE, REAR COMBINATION LAMP, LH

main81555-02A30iMZEA11;NRE210..G,N201906-202304

main81555-02D90iZWE211201906-202111

main81555-02F50iNRE210..E202304

main81565-02D90iZWE211202112-202303

81580DLAMP ASSY, REAR, RH

main81580-02440iNRE210201906-201910

sub81580-02441

main81580-02441iNRE210..E201911-202304

main81580-02820iZWE211201906-201908

sub81580-02821

main81580-02821iZWE211201909-201910

sub81580-02822

main81580-02822iZWE211201911-202005

main81580-02823iZWE211202005-202303

main81580-02F00iMZEA17,ZWE219202304

81584AGASKET, REAR LAMP RH

main81584-02440iNRE210..G,N;MZEA11,ZWE211201906-202304

8158ADLED, REAR FOG LAMP

main81965-02060iNRE210..E202112-202303

81590ALAMP ASSY, REAR, LH

main81590-02440iNRE210201906-201910

sub81590-02441

main81590-02441iMZEA11,NRE210201911-202110

sub81590-02442

main81590-02442iMZEA11,NRE210202111-202112

sub81590-02443

main81590-02443iMZEA11;NRE210..G,N202112-202304

main81590-02830iZWE211201906-201908

sub81590-02831

main81590-02831iZWE211201909-201910

sub81590-02832

main81590-02832iZWE211201911-202005

main81590-02833iZWE211202005-202110

sub81590-02834

main81590-02834iZWE211202111-202112

sub81590-02835

main81590-02835iZWE211202112-202303

main81590-02F00iMZEA17,ZWE219202304

81594AGASKET, REAR LAMP LH

main81584-02440iMZEA11,NRE210,ZWE211201906-202304

9015960621

main90159-60621

9017605023

main90176-05023

90176C0010

main90176-C0010

90178C0057

main90178-C0057

9017905102

main90179-05102

9018906242

main90189-06242

90189C0031

main90189-C0031

24 parts on this diagram · 1 diagram in section
