REAR SEAT & SEAT TRACK

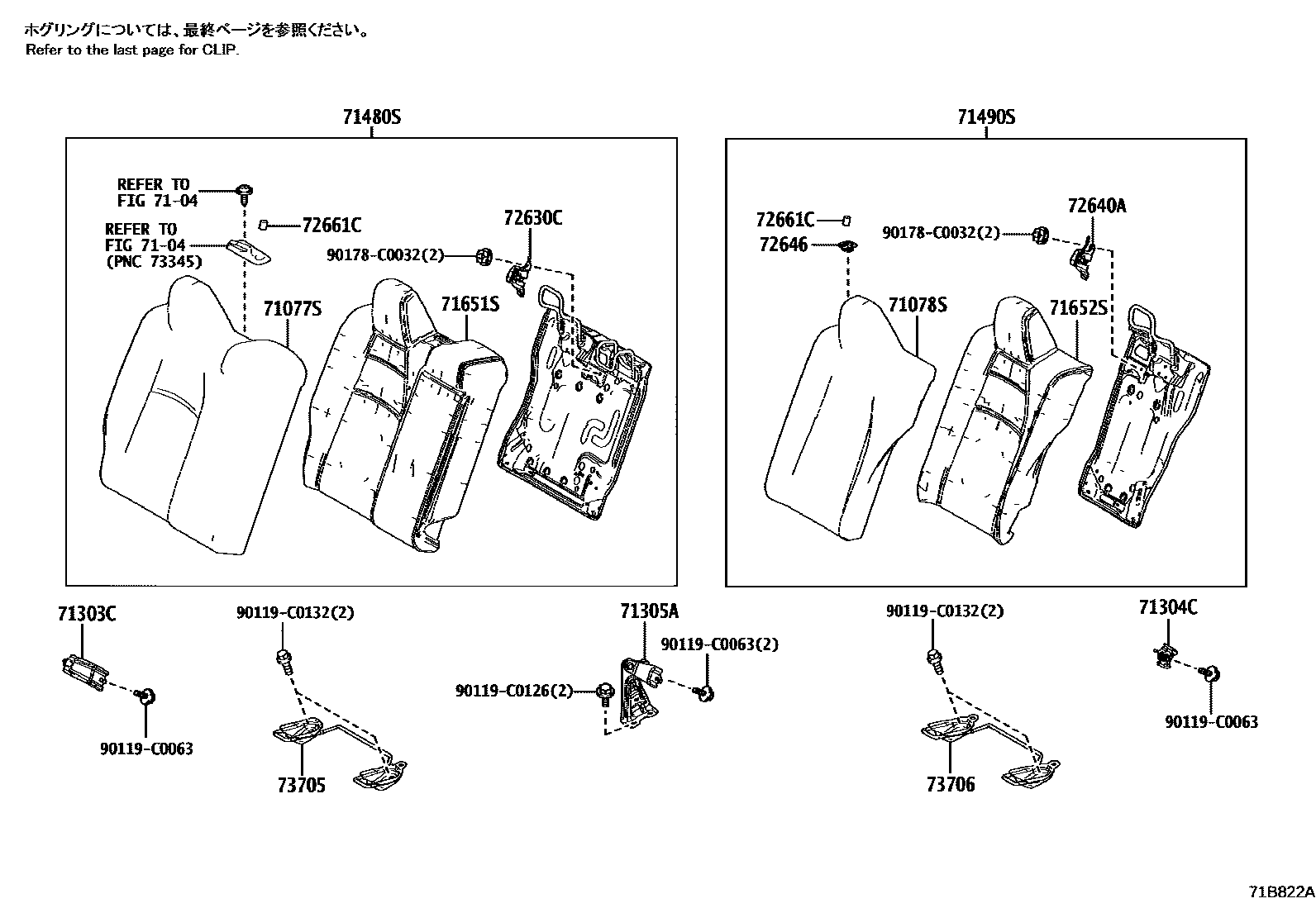

Parts diagram
7104
71077SCOVER, REAR SEATBACK, RH (FOR SEPARATE TYPE)
main71077-0ZK80-B2i201906-202007
DK. GRAY,TRIM1#
main71077-0ZK80-B2i201906-202007
SEAT COVER MATERIAL-SYNTHETIC LEATHER,DK. GRAY,TRIM1#
main71077-0ZK80-B2i201906-202007
SEAT COVER MATERIAL-SYNTHETIC LEATHER(FOR SPORT PACKAGE),DK. GRAY,TRIM1#
main71077-0ZK80-C2i201906-202007
BLACK,TRIM2#
main71077-0ZK80-C2i201906-202007
SEAT COVER MATERIAL-SYNTHETIC LEATHER,BLACK,TRIM2#
main71077-0ZK80-C2i201906-202007
SEAT COVER MATERIAL-SYNTHETIC LEATHER(FOR SPORT PACKAGE),BLACK,TRIM2#
main71077-0ZK81-B2i202007-202009
DK. GRAY,TRIM1#
main71077-0ZK81-B2i202007-202009
SEAT COVER MATERIAL-SYNTHETIC LEATHER(FOR SPORT PACKAGE),DK. GRAY,TRIM1#
main71077-0ZK81-B2i202007-202009
SEAT COVER MATERIAL-SYNTHETIC LEATHER,DK. GRAY,TRIM1#
main71077-0ZK81-B3i202009
SEAT COVER MATERIAL-SYNTHETIC LEATHER,DK. GRAY,TRIM1#
main71077-0ZK81-B3i202009-202303
DK. GRAY,TRIM1#
main71077-0ZK81-B3i202009
SEAT COVER MATERIAL-SYNTHETIC LEATHER(FOR SPORT PACKAGE),DK. GRAY,TRIM1#
main71077-0ZK81-C2i202007-202009
BLACK,TRIM2#
main71077-0ZK81-C2i202007-202009
SEAT COVER MATERIAL-SYNTHETIC LEATHER(FOR SPORT PACKAGE),BLACK,TRIM2#
main71077-0ZK81-C2i202007-202009
SEAT COVER MATERIAL-SYNTHETIC LEATHER,BLACK,TRIM2#
main71077-0ZK81-C3i202009
SEAT COVER MATERIAL-SYNTHETIC LEATHER(FOR SPORT PACKAGE),BLACK,TRIM2#
main71077-0ZK81-C3i202009
SEAT COVER MATERIAL-SYNTHETIC LEATHER,BLACK,TRIM2#
main71077-0ZK81-C3i202009-202303
BLACK,TRIM2#
main71077-0ZL00-C7i201906-202007
BLACK,TRIM2#
main71077-0ZL00-C8i201906-202007
BLACK,TRIM1#
main71077-0ZN80-C0i202007-202303
BLACK/BLACK,TRIM2#
main71077-0ZN80-C1i202007-202303
BLACK/COOL GRAY,TRIM1#
main71077-0ZS10-C4i202304
BLACK,TRIM2#
main71077-0ZT20-C3i202304-202407
BLACK,TRIM2#
main71077-0ZT20-C3i202407
BLACK,TRIM20
main71077-0ZT30-C3i202304
BLACK/SAND BROWN,TRIM2#
main71077-0ZT30-E5i202304
SAND BROWN,TRIM4#
71078SCOVER, REAR SEATBACK, LH(FOR SEPARATE TYPE)
main71078-0Z070-C0i202007-202303
BLACK/BLACK,TRIM2#
main71078-0Z070-C1i202007-202303
BLACK/COOL GRAY,TRIM1#
main71078-0Z590-B2i201906-202007
SEAT COVER MATERIAL-SYNTHETIC LEATHER(FOR SPORT PACKAGE),DK. GRAY,TRIM1#
main71078-0Z590-B2i201906-202007
DK. GRAY,TRIM1#
main71078-0Z590-B2i201906-202007
SEAT COVER MATERIAL-SYNTHETIC LEATHER,DK. GRAY,TRIM1#
main71078-0Z590-C2i201906-202007
BLACK,TRIM2#
main71078-0Z590-C2i201906-202007
SEAT COVER MATERIAL-SYNTHETIC LEATHER,BLACK,TRIM2#
main71078-0Z590-C2i201906-202007
SEAT COVER MATERIAL-SYNTHETIC LEATHER(FOR SPORT PACKAGE),BLACK,TRIM2#
main71078-0Z591-B2i202007-202009
DK. GRAY,TRIM1#
main71078-0Z591-B2i202007-202009
SEAT COVER MATERIAL-SYNTHETIC LEATHER,DK. GRAY,TRIM1#
main71078-0Z591-B2i202007-202009
SEAT COVER MATERIAL-SYNTHETIC LEATHER(FOR SPORT PACKAGE),DK. GRAY,TRIM1#
main71078-0Z591-B3i202009-202303
DK. GRAY,TRIM1#
main71078-0Z591-B3i202009
SEAT COVER MATERIAL-SYNTHETIC LEATHER,DK. GRAY,TRIM1#
main71078-0Z591-B3i202009
SEAT COVER MATERIAL-SYNTHETIC LEATHER(FOR SPORT PACKAGE),DK. GRAY,TRIM1#
main71078-0Z591-C2i202007-202009
SEAT COVER MATERIAL-SYNTHETIC LEATHER(FOR SPORT PACKAGE),BLACK,TRIM2#
main71078-0Z591-C2i202007-202009
BLACK,TRIM2#
main71078-0Z591-C2i202007-202009
SEAT COVER MATERIAL-SYNTHETIC LEATHER,BLACK,TRIM2#
main71078-0Z591-C3i202009-202303
BLACK,TRIM2#
main71078-0Z591-C3i202009
SEAT COVER MATERIAL-SYNTHETIC LEATHER,BLACK,TRIM2#
main71078-0Z591-C3i202009
SEAT COVER MATERIAL-SYNTHETIC LEATHER(FOR SPORT PACKAGE),BLACK,TRIM2#
main71078-0Z610-C7i201906-202007
BLACK,TRIM2#
main71078-0Z610-C8i201906-202007
BLACK,TRIM1#
main71078-0ZA50-C4i202304
BLACK,TRIM2#
main71078-0ZB90-C3i202407
BLACK,TRIM20
main71078-0ZB90-C3i202304-202407
BLACK,TRIM2#
main71078-0ZC00-C3i202304
BLACK/SAND BROWN,TRIM2#
main71078-0ZC00-E5i202304
SAND BROWN,TRIM4#
71303CHINGE SUB-ASSY, REAR SEATBACK, RH
main71303-02390i201906-202303
71304CHINGE SUB-ASSY, REAR SEATBACK, LH
main71304-02130i201906-202303
71305AHINGE SUB-ASSY, REAR SEATBACK, CENTER
main71305-02390i201906-202303
71480SBACK ASSY, REAR SEAT, RH (FOR SEPARATE TYPE)
main71480-0ZK40-B5i201906-202007
COOL GARY,TRIM1#
main71480-0ZK40-C4i201906-202007
BLACK,TRIM2#
main71480-0ZK50-B3i201906-202009
DK.GARY,TRIM1#
main71480-0ZK50-B3i201906-202009
SEAT COVER MATERIAL-SYNTHETIC LEATHER(FOR SPORT PACKAGE),DK.GARY,TRIM1#
main71480-0ZK50-B3i201906-202009
SEAT COVER MATERIAL-SYNTHETIC LEATHER,DK.GARY,TRIM1#
main71480-0ZK50-B4i202009
SEAT COVER MATERIAL-SYNTHETIC LEATHER,DK.GRAY,TRIM1#
main71480-0ZK50-B4i202009-202303
DK.GRAY,TRIM1#
main71480-0ZK50-B4i202009
SEAT COVER MATERIAL-SYNTHETIC LEATHER(FOR SPORT PACKAGE),DK.GRAY,TRIM1#
main71480-0ZK50-C3i201906-202009
SEAT COVER MATERIAL-SYNTHETIC LEATHER(FOR SPORT PACKAGE),BLACK,TRIM2#
main71480-0ZK50-C3i201906-202009
BLACK,TRIM2#
main71480-0ZK50-C3i201906-202009
SEAT COVER MATERIAL-SYNTHETIC LEATHER,BLACK,TRIM2#
main71480-0ZK50-C4i202009
SEAT COVER MATERIAL-SYNTHETIC LEATHER(FOR SPORT PACKAGE),BLACK,TRIM2#
main71480-0ZK50-C4i202009-202303
BLACK,TRIM2#
main71480-0ZK50-C4i202009
SEAT COVER MATERIAL-SYNTHETIC LEATHER,BLACK,TRIM2#
main71480-F2110-B0i202007-202008
COOL GRAY,TRIM1#
main71480-F2110-B1i202008-202009
COOL GRAY,TRIM1#
main71480-F2110-B2i202009-202303
COOL GRAY,TRIM1#
main71480-F2110-C0i202007-202008
BLACK,TRIM2#
main71480-F2110-C1i202008-202009
BLACK,TRIM2#
main71480-F2110-C2i202009-202303
BLACK,TRIM2#
71490SBACK ASSY, REAR SEAT, LH (FOR SEPARATE TYPE)
main71490-0ZC60-B3i201906-202009
SEAT COVER MATERIAL-SYNTHETIC LEATHER(FOR SPORT PACKAGE),DK.GARY,TRIM1#
main71490-0ZC60-B3i201906-202009
DK.GARY,TRIM1#
main71490-0ZC60-B3i201906-202009
SEAT COVER MATERIAL-SYNTHETIC LEATHER,DK.GARY,TRIM1#
main71490-0ZC60-B4i202009
SEAT COVER MATERIAL-SYNTHETIC LEATHER,DK.GRAY,TRIM1#
main71490-0ZC60-B4i202009
SEAT COVER MATERIAL-SYNTHETIC LEATHER(FOR SPORT PACKAGE),DK.GRAY,TRIM1#
main71490-0ZC60-B4i202009-202303
DK.GRAY,TRIM1#
main71490-0ZC60-C3i201906-202009
SEAT COVER MATERIAL-SYNTHETIC LEATHER,BLACK,TRIM2#
main71490-0ZC60-C3i201906-202009
SEAT COVER MATERIAL-SYNTHETIC LEATHER(FOR SPORT PACKAGE),BLACK,TRIM2#
main71490-0ZC60-C3i201906-202009
BLACK,TRIM2#
main71490-0ZC60-C4i202009
SEAT COVER MATERIAL-SYNTHETIC LEATHER,BLACK,TRIM2#
main71490-0ZC60-C4i202009-202303
BLACK,TRIM2#
main71490-0ZC60-C4i202009
SEAT COVER MATERIAL-SYNTHETIC LEATHER(FOR SPORT PACKAGE),BLACK,TRIM2#
main71490-0ZC80-B4i201906-202009
COOL GARY,TRIM1#
main71490-0ZC80-B5i202009-202303
COOL GARY,TRIM1#
main71490-0ZC80-C3i201906-202009
BLACK,TRIM2#
main71490-0ZC80-C4i202009-202303
BLACK,TRIM2#
71651SPAD, REAR SEATBACK, RH(FOR SEPARATE TYPE)
main71651-02B80i201906-202303
main71651-02C20i201906-202303
71652SPAD, REAR SEATBACK, LH(FOR SEPARATE TYPE)
main71652-02840i201906-202303
main71652-02860i201906-202303
72630CLOCK ASSY, REAR SEATBACK, RH
main72630-02250i201906-202303
72640ALOCK ASSY, REAR SEATBACK, LH
main72640-02240i201906-202303
72646GROMMET, REAR SEATBACK STOP BUTTON
main72646-02150-C0i202304
BLACK,TRIM2#
main72646-02150-C0i202304
BLACK,TRIM2#,4#
main72646-02150-C0i201906-202303
BLACK,TRIM1#,2#
72661CBUTTON, REAR SEATBACK LOCK RELEASE
main72661-02110-C0i201906-202303
BLACK,TRIM1#,2#
main72661-02110-C0i202304
BLACK,TRIM2#
main72661-02110-C0i202304
BLACK,TRIM2#,4#
73705BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, RH
main73705-02400i201906-202303
73706BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, LH
main73705-02410i201906-202303
90119C0063
main90119-C0063
90119C0126
main90119-C0126
90119C0132
main90119-C0132
90178C0032
main90178-C0032

20 parts on this diagram · 10 diagrams in section
