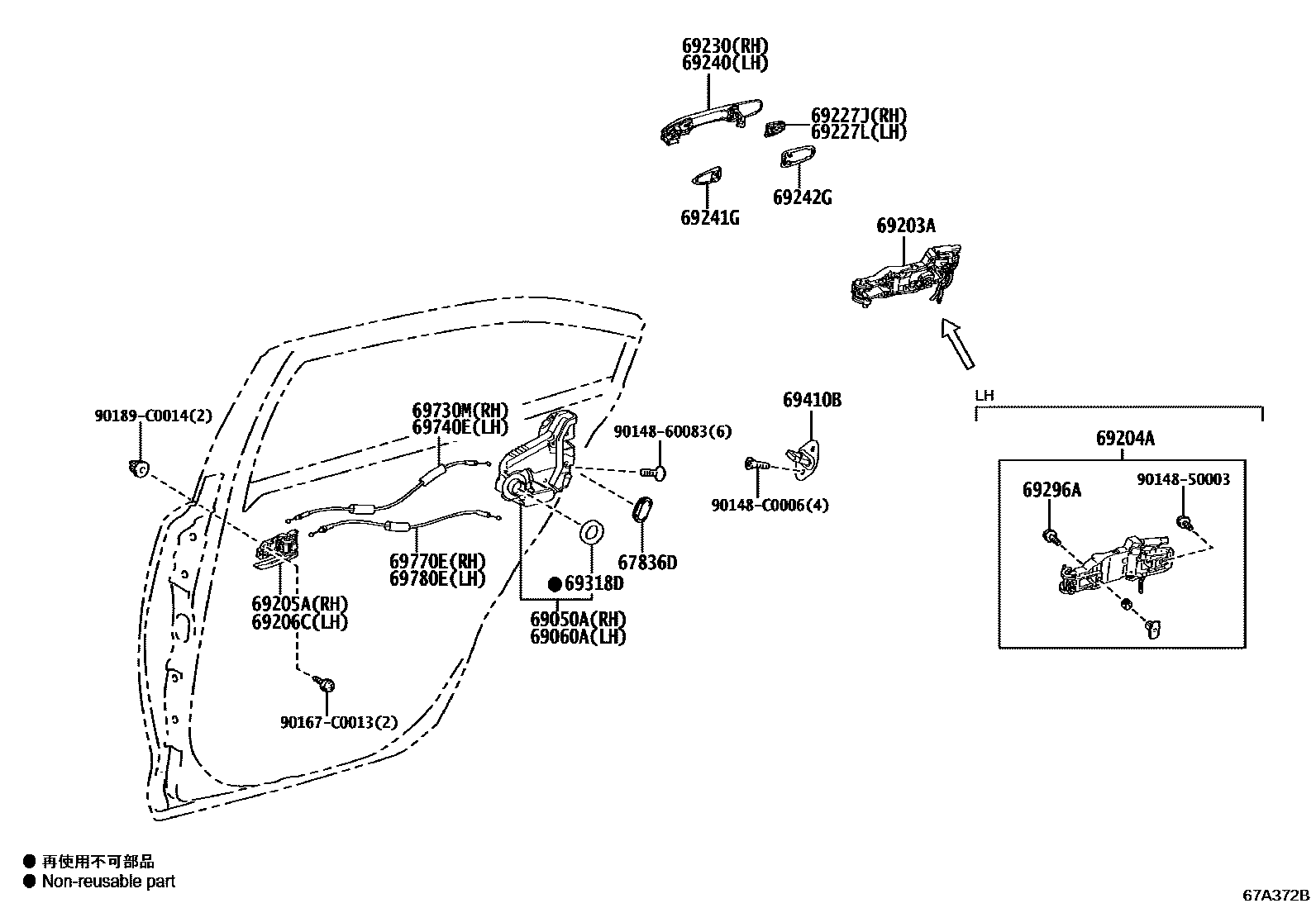

REAR DOOR LOCK & HANDLE

67836DCOVER, REAR DOOR LOCK CHILD PROTECTION

main67836-06020iNRE210,ZWE211201906-201911

(L)

main67836-33030iNRE210,ZWE211201906-201911

(J)

69050ALOCK ASSY, REAR DOOR W/MOTOR, RH

main69050-02490iMZEA17,ZWE219202304

main69050-02560iNRE210..G,N;MZEA11,ZWE211..CVT201906-202303

69060ALOCK ASSY, REAR DOOR W/MOTOR, LH

main69060-02490iMZEA17,ZWE219202304

main69060-02560iNRE210..E201906-202303

69203AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, RH

main69203-02520iMZEA17,ZWE219202304

main69203-02540iMZEA11,NRE210,ZWE211201906-202303

69204AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, LH

main69204-02520iMZEA17,ZWE219202304

main69204-02530iMZEA11,NRE210,ZWE211201906-202303

69205AHANDLE SUB-ASSY, REAR DOOR INSIDE, RH

main69205-02470-B0iNRE210..E201906-202307

COOL GRAY,TRIM1#

main69205-02470-C0iNRE210..E201906-202307

BLACK,TRIM2#

main69205-02500-B0iMZEA17,ZWE219..G202304

MD. GRAY,TRIM4#

main69205-02500-B1iNRE210..E202307

COOL GRAY,TRIM1#

main69205-02500-C0iMZEA17,ZWE219202304

BLACK,TRIM2#

main69205-0R110-C0iZWE219..E202407

BE,BLACK,TRIM2#

69206CHANDLE SUB-ASSY, REAR DOOR INSIDE, LH

main69206-02450-B0iNRE210..G,N;MZEA11,ZWE211201906-202307

COOL GRAY,TRIM1#

main69206-02450-C0iNRE210..G,N;MZEA11,ZWE211201906-202307

BLACK,TRIM2#

main69206-02480-B0iMZEA17,ZWE219..G202304

MD. GRAY,TRIM4#

main69206-02480-B1iNRE210..E202307

COOL GRAY,TRIM1#

main69206-02480-C0iMZEA17,ZWE219202304

BLACK,TRIM2#

main69206-0R110-C0iZWE219..E202407

BE,BLACK,TRIM2#

69227JCOVER, REAR DOOR OUTSIDE HANDLE, RH

main69227-06110iNRE210..G,N;MZEA11,ZWE211..CVT201906-202303

main69227-06110iMZEA17,ZWE219202304

MARK = 015

main69227-0E120iMZEA17,ZWE219202304

MARK = 42

69227LCOVER, REAR DOOR OUTSIDE HANDLE, LH

main69227-06110iNRE210..G,N;MZEA11,ZWE211..CVT201906-202303

main69227-06110iMZEA17,ZWE219202304

MARK = 015

main69227-0E120iMZEA17,ZWE219202304

MARK = 42

69230HANDLE ASSY, REAR DOOR OUTSIDE, RH

main69211-06140-A0iNRE210..G,N;MZEA11,ZWE211..CVT202007-202303

PLATINUM WHITE PEARL MC.,089

main69211-06140-A1iNRE210,ZWE211201906-202007

WHITE PEARL CS.,070

main69211-06140-A2iNRE210..E202007-202303

SUPER WHITE 2,040

main69211-06140-B0iNRE210..G,N;MZEA11,ZWE211..CVT201906-202304

SILVER ME.,1D4

main69211-06140-B3iNRE210..E202304

CELESTITE GRAY ME.,1K3

main69211-06140-C0iNRE210..G,N;MZEA11,ZWE211..CVT202007-202303

BLACK MC.,209

main69211-06140-C1iNRE210,ZWE211201906-202007

ATTITUDE BLACK MC.,218

main69211-06140-D1iNRE210..E201906-202303

RED M.M.,3R3

main69211-06140-D2iNRE210..G,N;MZEA11,ZWE211..CVT201906-202303

SCARLET ME.,3U4

main69211-06140-E1iNRE210..E202304

STEEL BLONDE ME.,4X1

main69211-06140-G0iNRE210..E201906-202304

CITRUS M.M.,6W2

main69211-06140-J0iNRE210..E201906-202304

BLUE ME.,8X7

main69211-06140-K0iZWE211201906-202303

DEEP AMETHYST M.M.,9AH

main69211-0E060-A0iMZEA17,ZWE219202304

PLATINUM WHITE PEARL MC.,089

main69211-0E060-A1iMZEA17,ZWE219202304

SUPER WHITE 2,040

main69211-0E060-B4iMZEA17,ZWE219202304

CELESTITE GRAY ME.,1K3

main69211-0E060-C0iMZEA17;ZWE219..G,N202304

BLACK MC.,209

main69211-0E060-D1iMZEA17,ZWE219202304

RED M.M.,3R3

main69211-0E060-D2iMZEA17,ZWE219202304-202407

SCARLET ME.,3U4

main69211-0E060-E0iMZEA17,ZWE219202304

STEEL BLONDE ME.,4X1

main69211-0E060-K0iZWE219202304-202407

DEEP AMETHYST M.M.,9AH

69240HANDLE ASSY, REAR DOOR OUTSIDE, LH

main69211-06140-A0iNRE210..G,N;MZEA11,ZWE211..CVT202007-202303

PLATINUM WHITE PEARL MC.,089

main69211-06140-A1iNRE210,ZWE211201906-202007

WHITE PEARL CS.,070

main69211-06140-A2iNRE210..E202007-202303

SUPER WHITE 2,040

main69211-06140-B0iNRE210..G,N;MZEA11,ZWE211..CVT201906-202304

SILVER ME.,1D4

main69211-06140-B3iNRE210..E202304

CELESTITE GRAY ME.,1K3

main69211-06140-C0iNRE210..E202007-202303

BLACK MC.,209

main69211-06140-C1iNRE210,ZWE211201906-202007

ATTITUDE BLACK MC.,218

main69211-06140-D1iNRE210..G,N;MZEA11,ZWE211..CVT201906-202303

RED M.M.,3R3

main69211-06140-D2iNRE210..G,N;MZEA11,ZWE211..CVT201906-202303

SCARLET ME.,3U4

main69211-06140-E1iNRE210..E202304

STEEL BLONDE ME.,4X1

main69211-06140-G0iNRE210..G,N;MZEA11,ZWE211..CVT201906-202304

CITRUS M.M.,6W2

main69211-06140-J0iNRE210..G,N;MZEA11,ZWE211..CVT201906-202304

BLUE ME.,8X7

main69211-06140-K0iZWE211201906-202303

DEEP AMETHYST M.M.,9AH

main69211-0E060-A0iMZEA17,ZWE219202304

PLATINUM WHITE PEARL MC.,089

main69211-0E060-A1iMZEA17,ZWE219202304

SUPER WHITE 2,040

main69211-0E060-B4iMZEA17,ZWE219202304

CELESTITE GRAY ME.,1K3

main69211-0E060-C0iMZEA17;ZWE219..G,N202304

BLACK MC.,209

main69211-0E060-D1iMZEA17,ZWE219202304

RED M.M.,3R3

main69211-0E060-D2iMZEA17,ZWE219202304-202407

SCARLET ME.,3U4

main69211-0E060-E0iMZEA17,ZWE219202304

STEEL BLONDE ME.,4X1

main69211-0E060-K0iZWE219202304-202407

DEEP AMETHYST M.M.,9AH

69241GPAD, REAR DOOR OUTSIDE HANDLE, FRONT

main69241-02270iMZEA17,ZWE219202304

MARK = F1

main69241-06120iNRE210..E201906-202303

main69241-06120iMZEA17,ZWE219202304

MARK = 015

69242GPAD, REAR DOOR OUTSIDE HANDLE, REAR

main69242-02260iMZEA17,ZWE219202304

MARK = F2

main69242-06120iNRE210..E201906-202303

main69242-06120iMZEA17,ZWE219202304

MARK = 015

69296ASCREW, DOOR INSIDE HANDLE

main69296-30010iNRE210..G,N;MZEA11,ZWE211201906-202304

main90148-C0013iMZEA17,ZWE219202304

69318DSEAL, DOOR LOCK WIRING HARNESS

main69318-02040iMZEA17,ZWE219202304

main69318-47010iNRE210..G,N;MZEA11,ZWE211..CVT201906-202303

69410BPLATE ASSY, REAR DOOR LOCK STRIKER

main69410-0D020iNRE210..G,N;MZEA11,ZWE211..CVT201906-202303

69730MCABLE, REAR DOOR LOCK REMOTE CONTROL, RH(FOR OPEN LEVER)

main69730-02390iNRE210..G,N;MZEA11,ZWE211..CVT201906-202303

main69730-02510iMZEA17,ZWE219202304

69740ECABLE, REAR DOOR LOCK REMOTE CONTROL, LH(FOR OPEN LEVER)

main69730-02390iNRE210..G,N;MZEA11,ZWE211..CVT201906-202303

main69730-02510iMZEA17,ZWE219202304

69770ECABLE, REAR DOOR INSIDE LOCKING, RH(FOR LOCK / UNLOCK KNOB)

main69770-02490iNRE210..G,N;MZEA11,ZWE211..CVT201906-202303

main69770-02610iMZEA17,ZWE219202304

69780ECABLE, REAR DOOR INSIDE LOCKING, LH(FOR LOCK / UNLOCK KNOB)

main69770-02490iNRE210..E201906-202303

main69770-02610iMZEA17,ZWE219202304

9014850003

main90148-50003

9014860083

main90148-60083

90148C0006

main90148-C0006

90167C0013

main90167-C0013

90189C0014

main90189-C0014

25 parts on this diagram · 1 diagram in section
