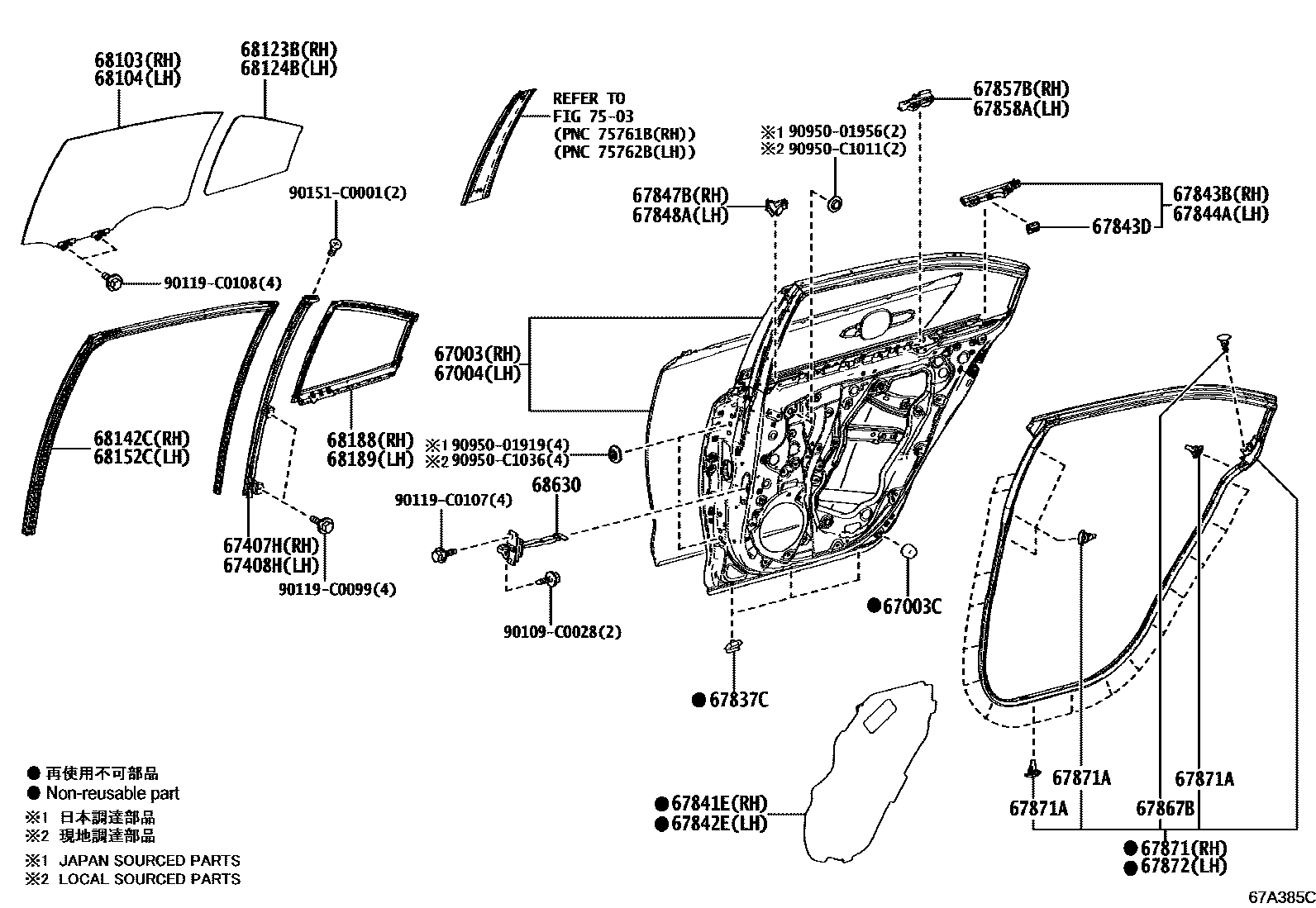

REAR DOOR PANEL & GLASS

0001 1DOOR PANEL 0002 1DOOR TRIM

67003PANEL SUB-ASSY, REAR DOOR, RH

main67003-02610iNRE210..G,N;MZEA11,ZWE211..CVT201906-202303

67003CCUSHION, REAR DOOR PANEL

main90541-09124iMZEA17,ZWE219¥100201906-202303

(J)

main90541-C0003iMZEA17,ZWE219201906-202303

(L)

67004PANEL SUB-ASSY, REAR DOOR, LH

main67004-02620iNRE210..E201906-202303

67407HBAR SUB-ASSY, SLIDE DOOR WINDOW DIVISION, RH

main67407-02270iNRE210..G,N;MZEA11,ZWE211..CVT201906-202303

67408HBAR SUB-ASSY, SLIDE DOOR WINDOW DIVISION, LH

main67408-02270iNRE210..G,N;MZEA11,ZWE211..CVT201906-202303

67837CSEAL, REAR DOOR DUST PROOF

main67837-02230iNRE210,ZWE211201912-202303

(L)

main67837-48050iNRE210..E¥80201912-202303

(J)

main67837-48050iNRE210,ZWE211¥80201906-201912

67841ECOVER, REAR DOOR SERVICE HOLE, RH

main67841-02500iNRE210..G,N;MZEA11,ZWE211..CVT201906-202303

(L)

67842ECOVER, REAR DOOR SERVICE HOLE, LH

main67842-02470iMZEA17,ZWE219201906-202303

(L)

67843BCOVER, REAR DOOR SERVICE HOLE, NO.2 RH

main67843-02080iNRE210..G,N;MZEA11,ZWE211..CVT201906-202303

67843DCLIP, REAR DOOR SERVICE HOLE

main67923-33100iNRE210..G,N;MZEA11,ZWE211..CVT¥240201906-202303

67844ACOVER, REAR DOOR SERVICE HOLE, NO.2 LH

main67844-02080iNRE210..G,N;MZEA11,ZWE211..CVT201906-202303

67847BSEAL, REAR DOOR VENT, RH NO.1

main67847-02160iNRE210..G,N;MZEA11,ZWE211..CVT201906-202303

67848ASEAL, REAR DOOR VENT, LH NO.1

main67848-02100iNRE210..G,N;MZEA11,ZWE211..CVT201906-202303

67857BPROTECTOR, REAR DOOR PANEL, RH

main67857-02170iNRE210..G,N;MZEA11,ZWE211..CVT201906-202303

67858APROTECTOR, REAR DOOR PANEL, LH

main67858-02170iMZEA17,ZWE219201906-202303

67867BCLIP, DOOR WEATHERSTRIP(FOR REAR DOOR)

main67868-30030iNRE210..E¥190201906-202303

67871WEATHERSTRIP, REAR DOOR, RH

main67871-02390iNRE210..G,N;MZEA11,ZWE211..CVT201906-202303

67871ARETAINER(FOR REAR DOOR WEATHERSTRIP)

main67867-12150iNRE210..G,N;MZEA11,ZWE211..CVT¥100201906-202303

67872WEATHERSTRIP, REAR DOOR, LH

main67872-02390iNRE210..G,N;MZEA11,ZWE211..CVT201906-202303

68103GLASS SUB-ASSY, REAR DOOR, RH

main68103-02650iNRE210,ZWE211201906-202007

main68103-02650iMZEA11,NRE210,ZWE211202007-202303

GLASS MARK=E000989

68104GLASS SUB-ASSY, REAR DOOR, LH

main68104-02650iNRE210,ZWE211201906-202007

main68104-02650iMZEA11,NRE210,ZWE211202007-202303

GLASS MARK=E000989

68123BGLASS, REAR DOOR QUARTER WINDOW, RH

main68123-02570iNRE210..G,N;MZEA11,ZWE211..CVT201906-202303

68124BGLASS, REAR DOOR QUARTER WINDOW, LH

main68124-02570iNRE210..G,N;MZEA11,ZWE211..CVT201906-202303

68142CRUN, REAR DOOR GLASS, RH

main68142-02420iNRE210,ZWE211201906-201912

sub68142-02421

main68142-02421iNRE210..G,N;MZEA11,ZWE211..CVT202001-202303

68152CRUN, REAR DOOR GLASS, LH

main68152-02420iNRE210,ZWE211201906-201912

sub68152-02421

main68152-02421iNRE210..G,N;MZEA11,ZWE211..CVT202001-202303

68188WEATHERSTRIP, REAR DOOR QUARTER WINDOW, RH

main68188-02310iNRE210..G,N;MZEA11,ZWE211..CVT201906-202303

68189WEATHERSTRIP, REAR DOOR QUARTER WINDOW, LH

main68189-02310iNRE210..E201906-202303

68630CHECK ASSY, REAR DOOR

main68630-02420iNRE210..G,N;MZEA11,ZWE211..CVT201906-202303

7503

90109C0028

main90109-C0028

90119C0099

main90119-C0099

90119C0107

main90119-C0107

90119C0108

main90119-C0108

90151C0001

main90151-C0001

9095001919

main90950-01919¥100

9095001956

main90950-01956¥100

90950C1011

main90950-C1011

90950C1036

main90950-C1036

38 parts on this diagram · 2 diagrams in section
