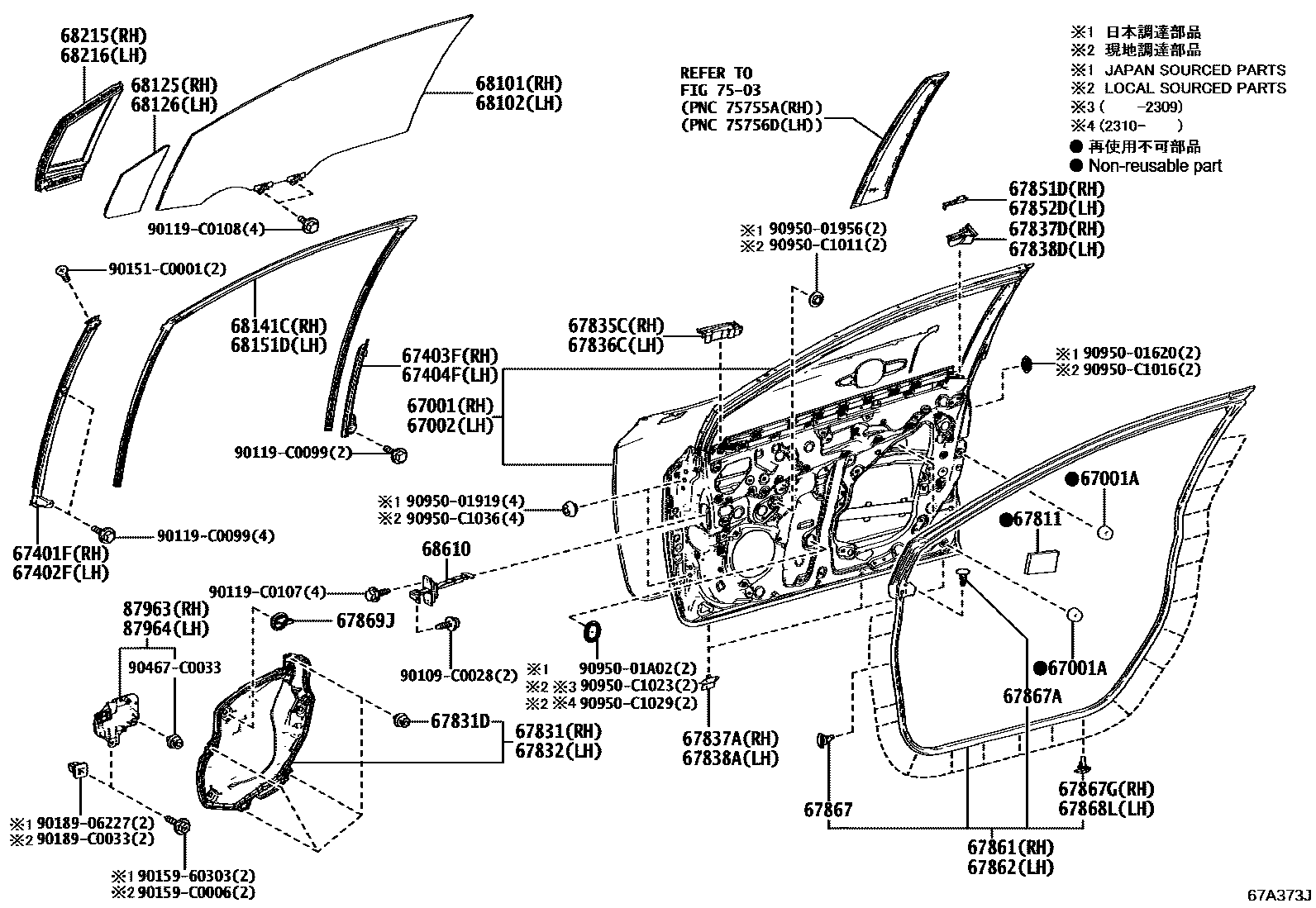

FRONT DOOR PANEL & GLASS

0001 1DOOR PANEL 0002 1DOOR TRIM

67001PANEL SUB-ASSY, FRONT DOOR, RH

main67001-02610iMZEA17,ZWE219201906-202303

67001ACUSHION, FRONT DOOR PANEL

main90541-09124iMZEA17,ZWE219¥100201906-202303

(J)

main90541-C0003iNRE210..E201906-202303

(L)

67002PANEL SUB-ASSY, FRONT DOOR, LH

main67002-02600iNRE210..G,N;MZEA11,ZWE211..CVT201906-202303

67401FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER RH

main67401-02100iNRE210..G,N;MZEA11,ZWE211..CVT201906-202303

67402FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER LH

main67402-02100iNRE210..G,N;MZEA11,ZWE211..CVT201906-202303

67403FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH

main67403-02320iNRE210..G,N;MZEA11,ZWE211..CVT201906-202303

67404FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH

main67404-02310iNRE210..G,N;MZEA11,ZWE211..CVT201906-202303

67811PAD, FRONT DOOR SILENCER

main67811-02400iMZEA11,NRE210,ZWE211..CVT201906-202209

67831COVER, FRONT DOOR SERVICE HOLE, RH

main67831-02510iMZEA17,ZWE219201906-202303

67831DCLIP(FOR FRONT DOOR SERVICE HOLE COVER)

main90467-C0033iNRE210..G,N;MZEA11,ZWE211..CVT201906-202303

67832COVER, FRONT DOOR SERVICE HOLE, LH

main67832-02510iNRE210..G,N;MZEA11,ZWE211..CVT201906-202303

67835CCOVER, FRONT DOOR SERVICE HOLE, NO.3 RH

main67835-02080iNRE210..G,N;MZEA11,ZWE211..CVT201906-202303

67836CCOVER, FRONT DOOR SERVICE HOLE, NO.3 LH

main67836-02140iNRE210..G,N;MZEA11,ZWE211..CVT201906-202303

67837ASEAL, FRONT DOOR VENT, RH

main67837-02230iNRE210..G,N;MZEA11,ZWE211..CVT201912-202303

(L)

main67837-48050iNRE210,ZWE211¥80201912-202303

(J)

main67837-48050iNRE210,ZWE211¥80201906-201912

67837DSEAL, FRONT DOOR VENT, RH

main67837-02190iNRE210..G,N;MZEA11,ZWE211..CVT201906-202303

67838ASEAL, FRONT DOOR VENT, LH

main67837-02230iNRE210..G,N;MZEA11,ZWE211..CVT201912-202303

(L)

main67837-48050iNRE210..E¥80201912-202303

(J)

main67837-48050iNRE210,ZWE211¥80201906-201912

67838DSEAL, FRONT DOOR VENT, LH

main67838-02150iNRE210..G,N;MZEA11,ZWE211..CVT201906-202303

67851DSEAL, FRONT DOOR REAR OUTSIDE, RH

main67851-02080iNRE210..G,N;MZEA11,ZWE211..CVT201906-202303

67852DSEAL, FRONT DOOR REAR OUTSIDE, LH

main67852-02080iNRE210..G,N;MZEA11,ZWE211..CVT201906-202303

67861WEATHERSTRIP, FRONT DOOR, RH

main67861-02400iNRE210..G,N;MZEA11,ZWE211..CVT201906-202303

67862WEATHERSTRIP, FRONT DOOR, LH

main67862-02400iNRE210..G,N;MZEA11,ZWE211..CVT201906-202303

67867CLIP, DOOR WEATHERSTRIP

main67867-0D110iNRE210..E202403

(L)

main67867-52030iMZEA17,ZWE219¥100201906-202403

main67867-52030iNRE210..E¥100202403

(J)

67867ACLIP, DOOR WEATHERSTRIP(FOR FRONT DOOR)

main67868-30030iMZEA17,ZWE219¥190201906-202303

67867GRETAINER, DOOR WEATHERSTRIP, RH

main67867-12150iNRE210..E¥100201906-202303

67868LRETAINER, DOOR WEATHERSTRIP, LH

main67867-12150iMZEA17,ZWE219¥100201906-202303

67869JCLIP, FRONT DOOR WEATHERSTRIP

main67869-47010iMZEA17,ZWE219¥140201906-202303

(J)

main67869-F4030iNRE210..E201906-202303

(L)

68101GLASS SUB-ASSY, FRONT DOOR, RH

main68101-02640iNRE210,ZWE211201906-202007

main68101-02640iNRE210..G,N;MZEA11,ZWE211..CVT202007-202303

GLASS MARK=E000989

68102GLASS SUB-ASSY, FRONT DOOR, LH

main68102-02640iNRE210,ZWE211201906-202007

main68102-02640iNRE210..G,N;MZEA11,ZWE211..CVT202007-202303

GLASS MARK=E000989

68125GLASS, FRONT DOOR FIX WINDOW, RH

main68125-02080iNRE210,ZWE211201906-202007

main68125-02080iNRE210..G,N;MZEA11,ZWE211..CVT202007-202303

GLASS MARK=E000989

68126GLASS, FRONT DOOR FIX WINDOW, LH

main68126-02080iNRE210,ZWE211201906-202007

main68126-02080iNRE210..G,N;MZEA11,ZWE211..CVT202007-202303

GLASS MARK=E000989

68141CRUN, FRONT DOOR GLASS, RH

main68141-02450iNRE210,ZWE211201906-201912

sub68141-02451

main68141-02451iNRE210..G,N;MZEA11,ZWE211..CVT202001-202303

68151DRUN, FRONT DOOR GLASS, LH

main68151-02440iNRE210,ZWE211201906-201912

sub68151-02441

main68151-02441iNRE210..G,N;MZEA11,ZWE211..CVT202001-202303

68215WEATHERSTRIP, FRONT DOOR FIX WINDOW, RH

main68215-02080iNRE210..G,N;MZEA11,ZWE211..CVT201906-202303

68216WEATHERSTRIP, FRONT DOOR FIX WINDOW, LH

main68216-02080iNRE210..G,N;MZEA11,ZWE211..CVT201906-202303

68610CHECK ASSY, FRONT DOOR

main68610-02410iNRE210..G,N;MZEA11,ZWE211..CVT201906-202303

7503

87963COVER, OUTER MIRROR INSTALL HOLE, RH

main87963-02050iNRE210..G,N;MZEA11,ZWE211..CVT201906-202303

87964COVER, OUTER MIRROR INSTALL HOLE, LH

main87964-02050iNRE210..G,N;MZEA11,ZWE211..CVT201906-202303

90109C0028

main90109-C0028

90119C0099

main90119-C0099

90119C0107

main90119-C0107

90119C0108

main90119-C0108

90151C0001

main90151-C0001

9015960303

main90159-60303¥70

90159C0006

main90159-C0006

9018906227

main90189-06227¥70

90189C0033

main90189-C0033

90467C0033

main90467-C0033

9095001620

main90950-01620¥110

9095001919

main90950-01919¥100

9095001956

main90950-01956¥100

9095001A02

main90950-01A02¥100

90950C1011

main90950-C1011

90950C1016

main90950-C1016

90950C1023

main90950-C1023

90950C1029

main90950-C1029

90950C1036

main90950-C1036

57 parts on this diagram · 2 diagrams in section
