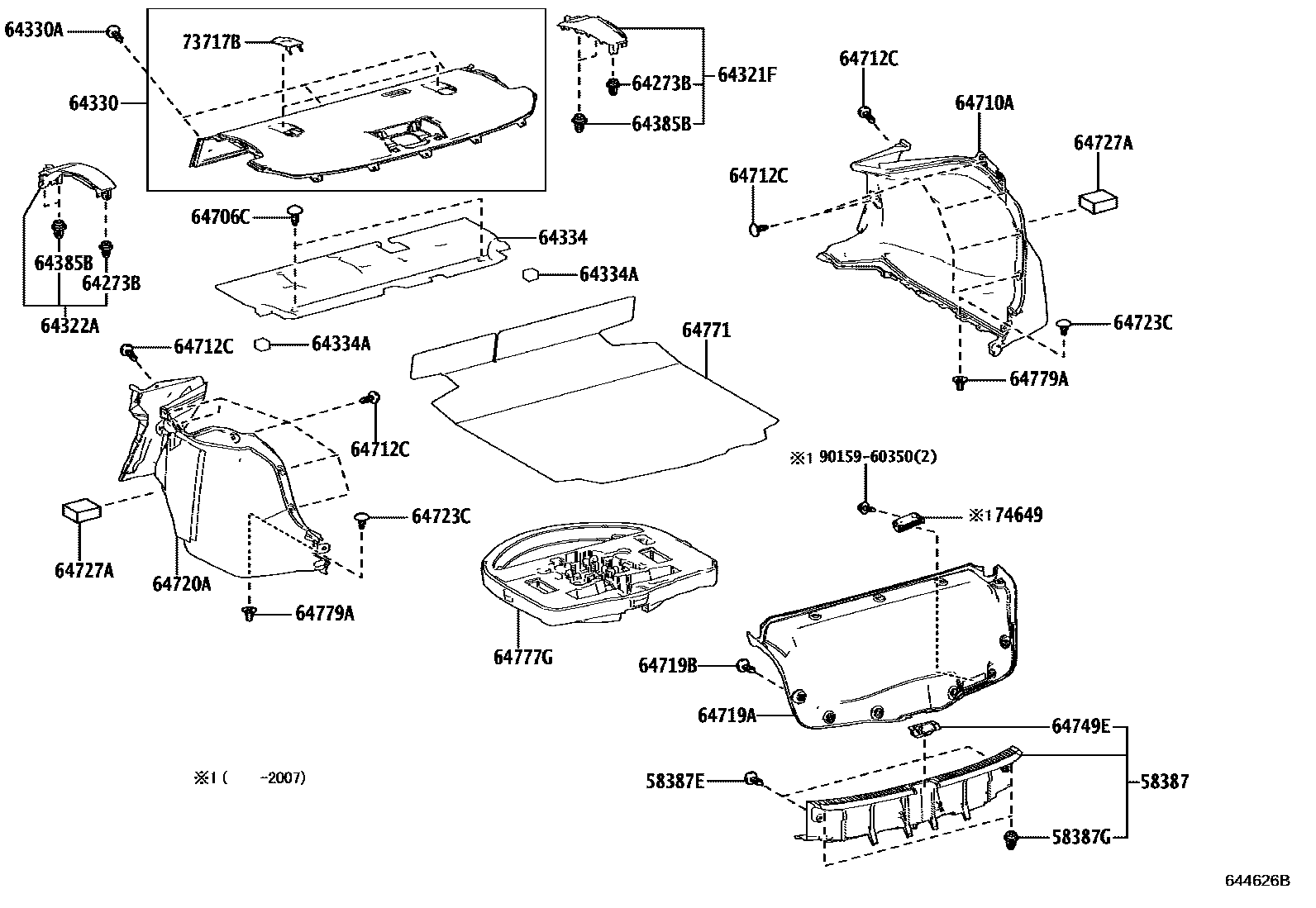

PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT

58387PLATE, REAR FLOOR FINISH

main58387-02390-C0iNRE210..E201906-202303

BLACK,TRIM1#,2#

main58387-02390-C0iMZEA17,ZWE219..E,N202304

BLACK,TRIM2#

main58387-02390-C0iMZEA17,ZWE219..E,N202304

BLACK,TRIM2#,4#

58387ECLIP(FOR REAR FLOOR FINISH PLATE)

main90467-C0012-C1iNRE210..G,N;MZEA11,ZWE211..CVT201906-202303

BLACK,TRIM1#,2#

main90467-C0012-C1iMZEA17,ZWE219..E,N202304

BLACK,TRIM2#

main90467-C0012-C1iMZEA17,ZWE219..E,N202304

BLACK,TRIM2#,4#

58387GCLIP(FOR REAR FLOOR FINISH PLATE)

main90467-10161iNRE210..G,N;MZEA11,ZWE211..CVT201906-202303

64273BCLIP

main90467-09240iNRE210..G,N;MZEA11,ZWE211201906-202303

64321FBRACKET, PACKAGE TRAY TRIM, RH

main64301-02090-C0iNRE210..G,N;MZEA11,ZWE211201906-202304

BLACK,TRIM1#,2#

main64301-02120-C0iNRE210..E202304

BLACK,TRIM1#,2#

main64301-02120-C0iNRE210..E202304

BLACK,TRIM2#

main64301-02120-C0iNRE210..E202304

BLACK,TRIM2#,4#

64322ABRACKET, PACKAGE TRAY TRIM, LH

main64302-02040-C0iMZEA17,ZWE219..G202304

BLACK,TRIM1#,2#

main64302-02040-C0iNRE210..E202304

BLACK,TRIM2#

main64302-02040-C0iNRE210..E202304

BLACK,TRIM2#,4#

main64302-02090-C0iNRE210..G,N;MZEA11,ZWE211201906-202304

BLACK,TRIM1#,2#

64330PANEL ASSY, PACKAGE TRAY TRIM

main64330-02J30-C0iNRE210..G,N;MZEA11,ZWE211201906-202304

BLACK,TRIM1#,2#

main64330-02K50-C2iMZEA17,ZWE219..E,N202304

BLACK,TRIM1#,2#

main64330-02K50-C2iMZEA17,ZWE219..E,N202304

BLACK,TRIM2#

main64330-02K50-C2iMZEA17,ZWE219..E,N202304

BLACK,TRIM2#,4#

64330ACLIP(FOR PACKAGE TRAY TRIM PANEL)

main90467-07215iMZEA17,ZWE219202304

main90467-C0012-C1iNRE210..G,N;MZEA11,ZWE211201906-202304

BLACK,TRIM1#,2#

64334PAD, PACKAGE TRAY TRIM SILENCER

main64334-02430iMZEA17,ZWE219201906-202303

64334APAD, PACKAGE TRAY TRIM

main64334-02530iNRE210..G,N;MZEA11,ZWE211201906-202304

64385BCLIP

main90467-C0036iNRE210..G,N;MZEA11,ZWE211201906-202303

64706CCLIP

main90467-06020-C0iNRE210..G,N;MZEA11,ZWE211..CVT201906-202303

BLACK

sub90467-06020

64710ACOVER ASSY, LUGGAGE COMPARTMENT TRIM, RH

main64710-02540-C0iMZEA17,ZWE219..E,N202304

BLACK,TRIM2#,4#

main64710-02540-C0iNRE210..G;MZEA11,ZWE211..CVT201906-202303

BLACK,TRIM1#,2#

main64710-02540-C0iMZEA17,ZWE219..E,N202304

BLACK,TRIM2#

main64710-02610-C0iNRE210..N201906-202303

BLACK,TRIM1#,2#

64712CCLIP(FOR LUGGAGE COMPARTMENT TRIM COVER)

main90467-C0012-C1iNRE210..G,N;MZEA11,ZWE211..CVT201906-202303

BLACK,TRIM1#,2#

main90467-C0012-C1iMZEA17,ZWE219..E,N202304

BLACK,TRIM2#

main90467-C0012-C1iMZEA17,ZWE219..E,N202304

BLACK,TRIM2#,4#

64719ACOVER, LUGGAGE COMPARTMENT DOOR

main64719-02340-C0iNRE210,ZWE211201906-202007

BLACK,TRIM1#,2#

main64719-02341-C0iNRE210..G,N;MZEA11,ZWE211..CVT202007-202303

BLACK,TRIM1#,2#

main64719-02341-C0iMZEA17,ZWE219..E,N202304

BLACK,TRIM2#

main64719-02341-C0iMZEA17,ZWE219..E,N202304

BLACK,TRIM2#,4#

64719BCLIP(FOR LUGGAGE COMPARTMENT DOOR)

main90467-C0012-C1iNRE210..E201906-202303

BLACK,TRIM1#,2#

main90467-C0012-C1iMZEA17,ZWE219..E,N202304

BLACK,TRIM2#

main90467-C0012-C1iMZEA17,ZWE219..E,N202304

BLACK,TRIM2#,4#

64720ACOVER ASSY, LUGGAGE COMPARTMENT TRIM, LH

main64720-02520-C0iMZEA17,ZWE219..G202304

BLACK,TRIM2#,4#

main64720-02520-C0iNRE210..G;MZEA11..CVT201906-202303

BLACK,TRIM1#,2#

main64720-02520-C0iMZEA17,ZWE219..G202304

BLACK,TRIM2#

main64720-02590-C0iNRE210..N201906-202303

BLACK,TRIM1#,2#

main64720-02600-C0iZWE211202007-202303

BLACK,TRIM1#,2#

64723CCLIP, LUGGAGE COMPARTMENT TRIM COVER

main64726-0D070iNRE210..G,N;MZEA11,ZWE211..CVT202101-202303

(L)

main64726-26010-C2iNRE210..G,N;MZEA11,ZWE211..CVT202101-202303

BLACK,TRIM1#,2#,(J)

main64726-26010-C2iMZEA17,ZWE219..G202304

BLACK,TRIM2#,4#,(J)

main64726-26010-C2iMZEA17,ZWE219..E,N202304

BLACK,TRIM2#,(J)

main64726-26010-C2iNRE210,ZWE211201906-202101

BLACK,TRIM1#,2#

64727APAD, LUGGAGE COMPARTMENT TRIM, INNER

main64727-02120iNRE210,ZWE211201906-201912

64749ECOVER, LUGGAGE COMPARTMENT DOOR STRIKER

main64749-02140-C0iMZEA17,ZWE219..G202304

BLACK,TRIM2#

main64749-02140-C0iNRE210..G,N;MZEA11,ZWE211..CVT201906-202303

BLACK,TRIM1#,2#

main64749-02140-C0iMZEA17,ZWE219..E,N202304

BLACK,TRIM2#,4#

64771COVER, SPARE WHEEL

main64771-02610-C0iNRE210..E201906-202304

BLACK,TRIM1#,2#

main64771-02680-C0iNRE210..E202304

BLACK,TRIM2#

main64771-02680-C0iNRE210..E202304

BLACK,TRIM2#,4#

main64771-02680-C0iMZEA17,ZWE219..E,N202304

BLACK,TRIM1#,2#

64777GCUSHION, SPARE WHEEL

main64777-02510iNRE210..G,N;MZEA11,ZWE211201906-202304

main64777-02570iNRE210..E202304

64779ASTOPPER, SPARE WHEEL COVER

main64779-26010iNRE210..E201906-202303

73717BCOVER, CHILD RESTRAINT SEAT TETHER ANCHOR

main73717-02790-C0iNRE210..E202304

BLACK,TRIM2#,4#

main73717-02790-C0iMZEA17,ZWE219..E,N202304

BLACK,TRIM1#,2#

main73717-02790-C0iMZEA17,ZWE219..E,N202304

BLACK,TRIM2#

74649GRIP, LUGGAGE COMPARTMENT DOOR ASSIST

main74649-51010-C3iNRE210,ZWE211201906-202007

BLACK,TRIM1#,2#

sub74649-51010

9015960350

main90159-60350

26 parts on this diagram · 1 diagram in section
