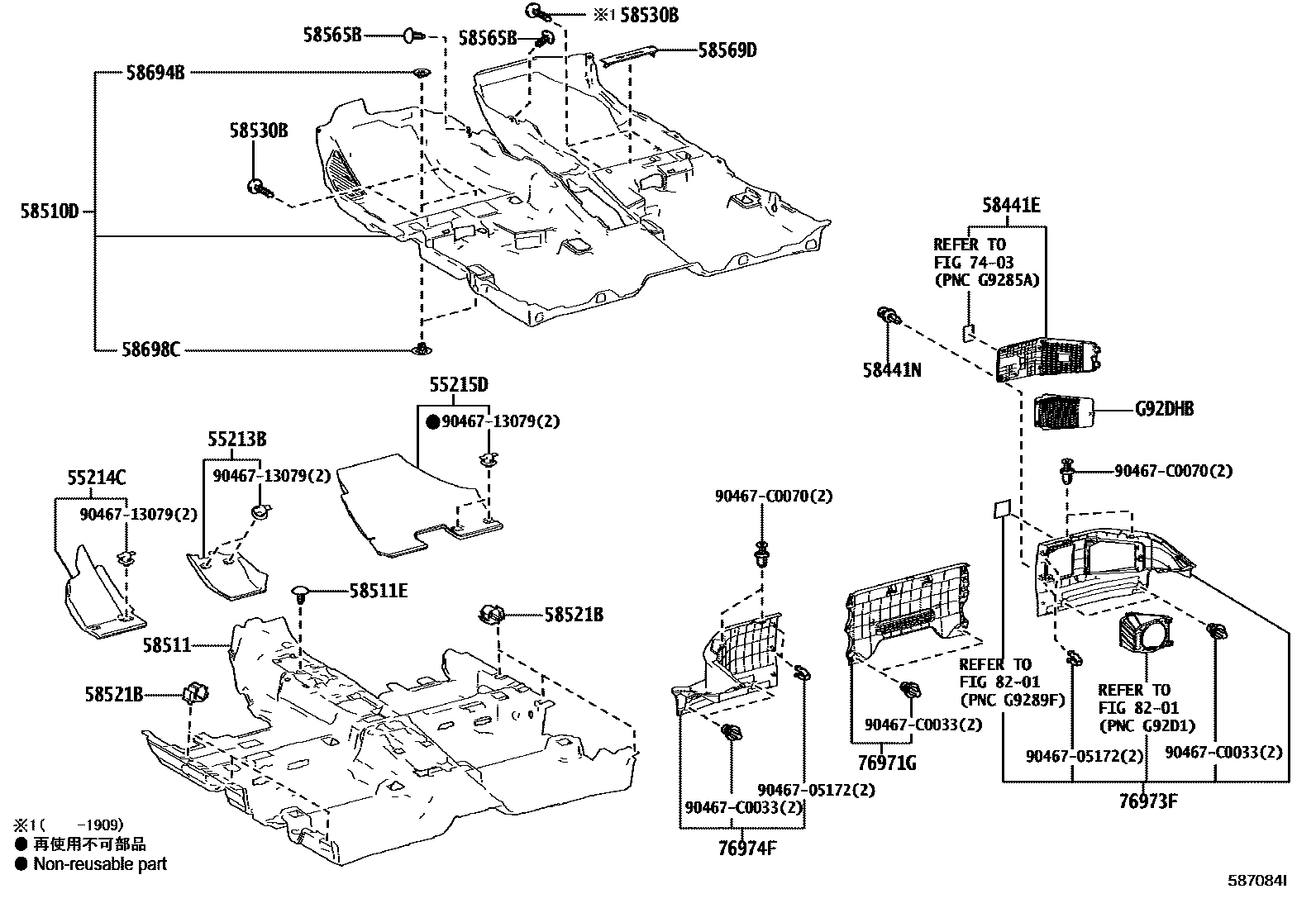

MAT & CARPET

0001 1 0002 1 0003 1 0004 1FLOOR MAT

55213BPAD, DASH PANEL INSULATOR, NO.1

main55213-02380iMZEA17,ZWE219201906-202303

55214CPAD, DASH PANEL INSULATOR, NO.2

main55214-02340iNRE210..G,N;MZEA11,ZWE211..CVT201906-202303

55215DPAD, DASH PANEL INSULATOR, NO.3

main55215-02240iNRE210..E201906-202303

58441ECOVER, BATTERY SERVICE HOLE

main58441-02110-C0iZWE211201906-202303

BLACK,TRIM1#,2#

main58441-02150-C0iZWE219..E,N202304

BLACK,TRIM2#

main58441-02150-C0iZWE219..G202304

BLACK,TRIM2#,4#

58441NCLIP(FOR BATTERY SERVICE HOLE COVER)

main90467-C0014-C1iZWE219..E,N202304

BLACK,TRIM2#

main90467-C0014-C1iZWE211201906-202303

BLACK,TRIM1#,2#

main90467-C0014-C1iZWE219..G202304

BLACK,TRIM2#,4#

58510DCARPET ASSY, FLOOR, FRONT

main58510-02T20-C0iMZEA11,NRE210..CVT201906-202110

BLACK,TRIM1#,2#

sub58510-02T21

main58510-02T21-C0iMZEA11..CVT;NRE210..G,N202111-202303

BLACK,TRIM1#,2#

main58510-02T21-C0iMZEA17..G202304

BLACK,TRIM2#

main58510-02T21-C0iMZEA17..G202304

BLACK,TRIM2#,4#

main58510-02T30-C0iZWE211201906-202110

BLACK,TRIM1#,2#

sub58510-02T31

main58510-02T31-C0iZWE219..G202304

BLACK,TRIM2#,4#

main58510-02T31-C0iZWE211202111-202303

BLACK,TRIM1#,2#

main58510-02T31-C0iZWE219..G202304

BLACK,TRIM2#

58511MAT, FLOOR, FRONT

main58511-02350iMZEA11..CVT;NRE210..G,N201906-202303

main58511-02370iZWE211201906-202303

58511ECLIP(FOR FRONT FLOOR MAT)

main90467-07042-C4iMZEA17,ZWE219..G202304

BLACK,TRIM2#,4#

sub90467-07042¥110

sub90467-06175¥220

main90467-07042-C4iNRE210..G,N;MZEA11,ZWE211..CVT201906-202303

BLACK,TRIM1#,2#

sub90467-07042¥110

sub90467-06175¥220

main90467-07042-C4iMZEA17,ZWE219..E,N202304

BLACK,TRIM2#

sub90467-07042¥110

sub90467-06175¥220

58521BHOOK, FLOOR CARPET

main58521-06180iNRE210..E201906-202303

58530BCLIP(FOR FRONT FLOOR CARPET)

main64726-10020-C2iMZEA17,ZWE219..G202304

BLACK,TRIM2#,4#

main64726-10020-C2iMZEA17,ZWE219..G202304

BLACK,TRIM2#

main64726-10020-C2iNRE210..G,N;MZEA11,ZWE211..CVT202009-202303

BLACK,TRIM1#,2#

main90467-C0049iNRE210,ZWE211201906-202008

58565BCLIP

main90467-C0016-C1iMZEA17,ZWE219..E,N202304

BLACK,TRIM2#

main90467-C0016-C1iNRE210..G,N;MZEA11,ZWE211..CVT201906-202303

BLACK,TRIM1#,2#

main90467-C0016-C1iMZEA17,ZWE219..E,N202304

BLACK,TRIM2#,4#

58569DCOVER, FRONT FLOOR CAUTION PLATE

main58569-02160-C0iNRE210..G,N;MZEA11,ZWE211..CVT201906-202303

BLACK,TRIM1#,2#

main58569-02160-C0iMZEA17,ZWE219..E,N202304

BLACK,TRIM2#

main58569-02160-C0iMZEA17,ZWE219..E,N202304

BLACK,TRIM2#,4#

58694BPLATE, MAT SET, UPPER

main58694-78010iNRE210..G,N;MZEA11,ZWE211..CVT¥130201906-202303

58698CPLATE, MAT SET, LOWER

main58698-78010iNRE210..G,N;MZEA11,ZWE211..CVT¥230201906-202303

7403

76971GCOVER, REAR UNDER

main76971-02070-C0iZWE211201906-202303

BLACK,TRIM1#,2#

main76971-02130-C0iZWE219..G202304

BLACK,TRIM2#,4#

main76971-02130-C0iZWE219..G202304

BLACK,TRIM2#

76973FCOVER, REAR UNDER SIDE, RH

main76973-02070-C0iZWE211201906-202111

BLACK,TRIM1#,2#

sub76973-02071

main76973-02071-C0iZWE211202112-202303

BLACK,TRIM1#,2#

main76973-02120-C0iZWE219..G202304

BLACK,TRIM2#,4#

main76973-02120-C0iZWE219..G202304

BLACK,TRIM2#

76974FCOVER, REAR UNDER SIDE, LH

main76974-02070-C0iZWE211201906-202303

BLACK,TRIM1#,2#

main76974-02140-C0iZWE219..G202304

BLACK,TRIM2#,4#

main76974-02140-C0iZWE219..G202304

BLACK,TRIM2#

8201

G92DHBFILTER, HV BATTERY INTAKE, NO.1

mainG92DH02030iZWE211201906-202303

9046705172

main90467-05172¥60

9046713079

main90467-13079¥120

90467C0033

main90467-C0033

90467C0070

main90467-C0070

24 parts on this diagram · 4 diagrams in section
