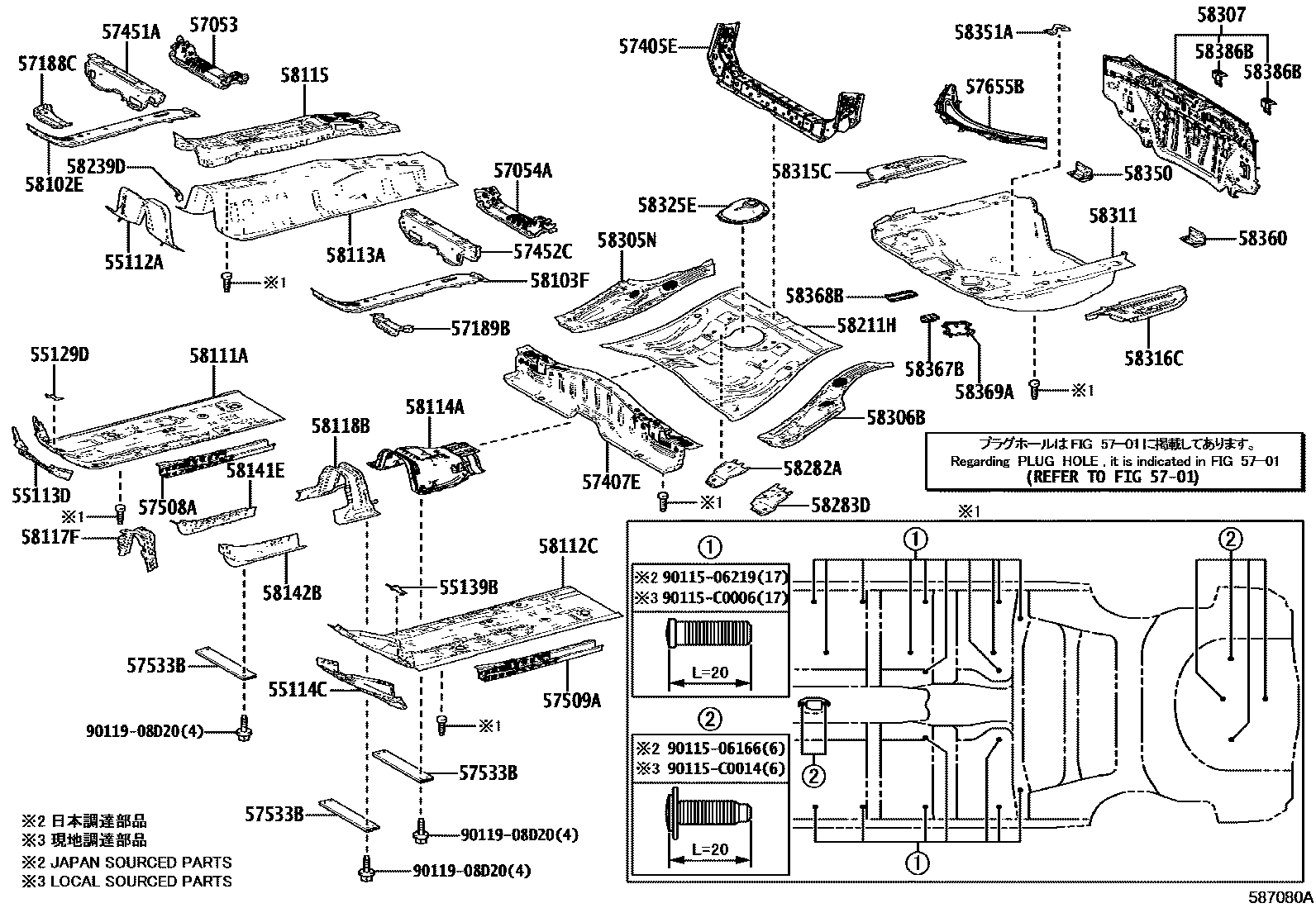

FLOOR PAN & LOWER BACK PANEL

0001 1 0003 1 0004 1 0005 1 0006 1

55112APANEL, DASH, NO.2

main55112-F4040iNRE210..E201906-202303

55113DPANEL, DASH, LOWER RH

main55113-F4040iNRE210..G,N;MZEA11,ZWE211..CVT201906-202303

55114CPANEL, DASH, LOWER LH

main55114-F4040iNRE210..G,N;MZEA11,ZWE211..CVT201906-202303

55129DCOVER, DASH PANEL HOLE, RH

main55129-F4040iNRE210..G,N;MZEA11,ZWE211..CVT201906-202303

55139BCOVER, DASH PANEL HOLE, LH

main55139-F4040iNRE210..G,N;MZEA11,ZWE211..CVT201906-202303

5701

57053REINFORCEMENT SUB-ASSY, FRONT FLOOR CROSSMEMBER, RH

main57053-02160iNRE210..G,N;MZEA11,ZWE211..CVT201906-202303

57054AREINFORCEMENT SUB-ASSY, FRONT FLOOR CROSSMEMBER, LH

main57054-02150iNRE210..G,N;MZEA11,ZWE211..CVT201906-202303

57188CREINFORCEMENT, FRONT SIDE MEMBER EXTENSION, RH

main57188-F4040iNRE210..G,N;MZEA11,ZWE211..CVT201906-202303

57189BREINFORCEMENT, FRONT SIDE MEMBER EXTENSION, LH

main57189-F4040iMZEA17,ZWE219201906-202303

57405EMEMBER SUB-ASSY, CENTER FLOOR CROSS, NO.2

main57405-F4040iMZEA17,ZWE219201906-202308

sub57405-F4041

main57405-F4041iMZEA17,ZWE219202309

57407EMEMBER SUB-ASSY, CENTER FLOOR CROSS

main57407-02310iZWE219201906-202303

main57407-F4070iNRE210..E201906-202303

57451AMEMBER, FRONT FLOOR CROSS, RH

main57451-F4040iNRE210..G,N;MZEA11,ZWE211..CVT201906-202303

57452CMEMBER, FRONT FLOOR CROSS, LH

main57452-F4040iNRE210..G,N;MZEA11,ZWE211..CVT201906-202303

57508AREINFORCEMENT SUB-ASSY, FRONT FLOOR, RH

main57508-02120iNRE210..E201906-202303

57509AREINFORCEMENT SUB-ASSY, FRONT FLOOR, LH

main57508-02120iNRE210..G,N;MZEA11,ZWE211..CVT201906-202303

57533BBRACE, FRONT FLOOR, CENTER

main57533-F4050iZWE211;NRE210..G,N201906-202303

57655BMEMBER, REAR FLOOR CROSS, NO.4

main57655-02030iMZEA11,NRE210,ZWE211..CVT201906-202210

58102EREINFORCEMENT SUB-ASSY, FRONT FLOOR, RH

main58102-F4040iNRE210..G,N;MZEA11,ZWE211..CVT201906-202303

58103FREINFORCEMENT SUB-ASSY, FRONT FLOOR, LH

main58102-F4040iNRE210..E201906-202303

58111APAN, FRONT FLOOR, RH

main58111-02440iMZEA11,NRE210,ZWE211..CVT201906-202103

main58111-02441iNRE210..G,N;MZEA11,ZWE211..CVT202104-202303

58112CPAN, FRONT FLOOR, LH

main58112-02190iMZEA11,NRE210,ZWE211201906-202103

main58112-02191iMZEA11,NRE210,ZWE211202104-202209

main58112-02192iMZEA11,NRE210,ZWE211202210-202303

sub58112-02191

58113APANEL, FRONT FLOOR, CENTER

main58113-02230iNRE210..G,N;MZEA11,ZWE211..CVT201906-202303

58114AREINFORCEMENT, FRONT FLOOR PANEL

main58105-02070iNRE210..G,N;MZEA11,ZWE211..CVT201906-202303

58115REINFORCEMENT, FRONT FLOOR PANEL, FRONT

main58115-02130iNRE210..G,N;MZEA11,ZWE211..CVT201906-202303

58117FPANEL, FRONT FLOOR, REAR LOWER

main58117-F4040iNRE210..E201906-202303

58118BREINFORCEMENT, FRONT FLOOR PANEL, NO.2

main58118-F4040iMZEA17,ZWE219201906-202303

58141EREINFORCEMENT, FRONT SIDE MEMBER TO FLOOR PAN, RH

main58141-F4040iMZEA17,ZWE219201906-202401

main58141-F4041iMZEA17,ZWE219202402

58142BREINFORCEMNET, FRONT SIDE MEMBER TO FLOOR PAN, LH

main58142-F4040iMZEA11,NRE210,ZWE211..CVT201906-202106

sub58142-F4041

main58142-F4041iNRE210..G,N;MZEA11,ZWE211..CVT202107-202303

58211HPAN, CENTER FLOOR

main58211-02610iZWE211201906-202303

main58211-0A060iMZEA17202304

main58211-F4070iNRE210..E201906-202303

58239DBRACKET, CABLE CLAMP

main58239-F4040iNRE210..E201906-202303

58282ABASE, BELT ANCHOR TO FLOOR PAN, NO.3 RH

main58282-0A050iMZEA17202304

main58282-F4040iNRE210..E201906-202303

58283DBASE, BELT ANCHOR TO FLOOR PAN, NO.3 LH

main58283-0A050iMZEA17202304

main58283-F4040iNRE210..G,N;MZEA11,ZWE211..CVT201906-202303

58305NEXTENSION SUB-ASSY, REAR FLOOR TO QUARTER, RH

main58305-02050iZWE219201906-202303

main58305-02250iMZEA11..CVT;NRE210..G,N201906-202303

58306BEXTENSION SUB-ASSY, REAR FLOOR TO QUARTER, LH

main58306-02050iZWE211201906-201909

sub58306-02051

main58306-02051iZWE211201909-202303

main58306-02080iZWE219202304

main58306-02260iMZEA11..CVT;NRE210..G,N201906-202303

58307PANEL SUB-ASSY, BODY LOWER BACK

main58307-02560iNRE210..E201906-202303

58311PAN, REAR FLOOR

main58311-02440iMZEA11,NRE210,ZWE211201906-202301

sub58311-02441

main58311-02441iNRE210..G,N;MZEA11,ZWE211202301-202303

58315CEXTENSION, REAR FLOOR SIDE PANEL, RH

main58315-02160iMZEA11,NRE210,ZWE211..CVT201906-202203

sub58315-02210

main58315-02210iNRE210..G,N;MZEA11,ZWE211..CVT202204-202303

58316CEXTENSION, REAR FLOOR SIDE PANEL, LH

main58316-02120iMZEA11,NRE210,ZWE211..CVT201906-202203

sub58316-02140

main58316-02140iNRE210..E202204-202303

58325ECOVER, REAR FLOOR SERVICE HOLE

main58325-02300iZWE219201906-202303

main58325-02370iMZEA17202304

main58325-F4070iNRE210..E201906-202303

58350REINFORCEMENT ASSY, REAR FLOOR PANEL, RH

main58350-F4040iNRE210..G,N;MZEA11,ZWE211..CVT201906-202303

58351ABRACKET, SPARE WHEEL CARRIER

main58351-02120iNRE210..G,N;MZEA11,ZWE211..CVT201906-202303

58360REINFORCEMENT ASSY, REAR FLOOR PANEL, LH

main58350-F4040iNRE210..E201906-202303

58367BBRACKET, FUEL TUBE

main58367-06030iNRE210..G,N;MZEA11,ZWE211..CVT201906-202303

58368BBRACKET, FUEL TUBE, NO.2

main58368-06030iMZEA17,ZWE219201906-202303

58369ABRACKET, FUEL TUBE, NO.3

main58369-06080iMZEA17201906-202303

main58369-06090iZWE219201906-202303

58386BBRACKET, REAR BUMPER COVER, NO.2

main58386-02170iNRE210..G,N;MZEA11,ZWE211..CVT201906-202303

9011506166

main90115-06166

9011506219

main90115-06219

90115C0006

main90115-C0006

90115C0014

main90115-C0014

9011908D20

main90119-08D20
