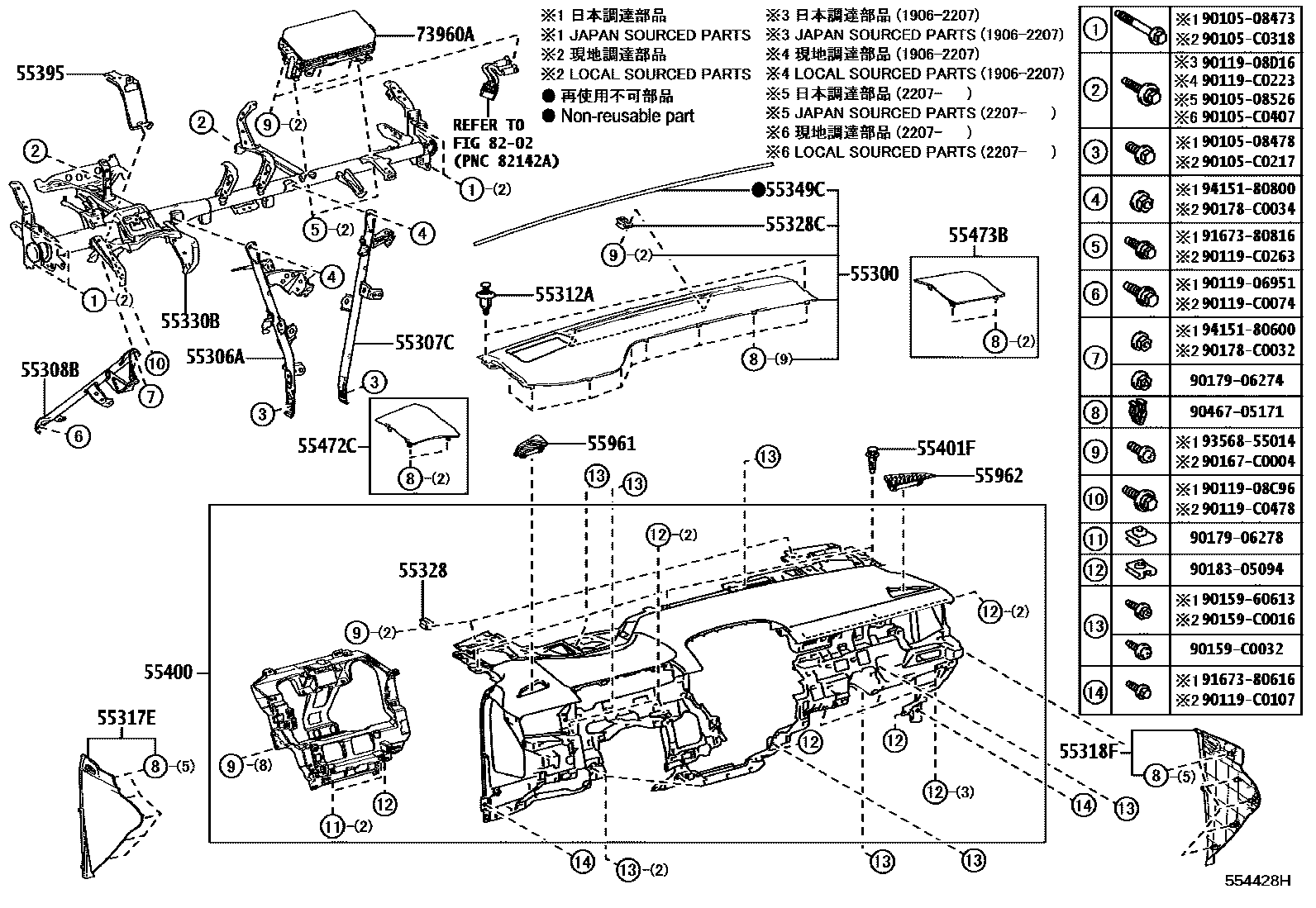

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1W(LARGE DISPLAY) 0002 1DRIVER SIDE, W(LARGE DISPLAY)0003 1CENTER, W(LARGE DISPLAY) 0004 1PASSENGER SIDE, W(LARGE DISPL0005 1 0006 1DRIVER SIDE 0007 1CENTER 0009 1PASSENGER SIDE 0010 1SOFT 0011 1HARD 0012 1DRIVER SIDE 0013 1CENTER 0015 1PASSENGER SIDE

55300PANEL ASSY, INSTRUMENT, UPPER

main55300-02200-C0iNRE210..G,N;MZEA11,ZWE211201906-202303

BLACK,TRIM1#,2#

main55300-02230-C0iMZEA17,ZWE219..E202304

BLACK,TRIM2#

main55300-02230-C0iMZEA17,ZWE219..E202304

SEAT COVER MATERIAL-SYNTHETIC LEATHER,BLACK,TRIM2#

main55300-02230-C0iMZEA17,ZWE219..N202304

BLACK,TRIM1#,2#

main55300-02230-C0iMZEA17,ZWE219..N202304

BLACK,TRIM2#,4#

55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1

main55306-02770iNRE210..G,N;MZEA11,ZWE211201906-202512

main55306-02820iMZEA17,ZWE219202304

55307CBRACE SUB-ASSY, INSTRUMENT PANEL, NO.2

main55307-02610iMZEA17,ZWE219201906-202303

55308BBRACE SUB-ASSY, INSTRUMENT PANEL TO COWL, NO.3

main55308-02260iNRE210..E201906-202512

main55308-02280iMZEA17,ZWE219202304

55312ACLIP, INSTRUMENT PANEL

main90467-07217iMZEA17,ZWE219..E,G¥80202304

SEAT COVER MATERIAL-SYNTHETIC LEATHER,(J)

main90467-07217iNRE210..G,N;MZEA11,ZWE211¥80201906-202303

(J)

main90467-C0051iNRE210..E201906-202303

(L)

main90467-C0051iMZEA17,ZWE219..E,G202304

SEAT COVER MATERIAL-SYNTHETIC LEATHER,(L)

55317EPANEL, INSTRUMENT SIDE, NO.1

main55317-02650-C0iMZEA17,ZWE219..N202304

BLACK,TRIM2#

main55317-02780-C0iMZEA17,ZWE219..N202304

SEAT COVER MATERIAL-SYNTHETIC LEATHER,BLACK,TRIM2#

main55317-02780-C0iNRE210..G,N;MZEA11,ZWE211..CVT201906-202303

BLACK,TRIM1#,2#

main55317-02780-C0iMZEA17,ZWE219..G202304

BLACK,TRIM2#,4#

main55317-02780-C0iMZEA17,ZWE219..G202304

BLACK,TRIM2#

55318FPANEL, INSTRUMENT SIDE, NO.2

main55318-02290-C0iMZEA17,ZWE219..N202304

BLACK,TRIM2#

main55318-02410-C0iNRE210..G,N;MZEA11,ZWE211..CVT201906-202303

BLACK,TRIM1#,2#

main55318-02410-C0iMZEA17,ZWE219..G202304

BLACK,TRIM2#,4#

main55318-02410-C0iMZEA17,ZWE219..G202304

BLACK,TRIM2#

main55318-02410-C0iMZEA17,ZWE219..G202304

SEAT COVER MATERIAL-SYNTHETIC LEATHER,BLACK,TRIM2#

55328PIN, INSTRUMENT PANEL, NO.1

main55328-0E100iNRE210..E201906-202303

main55328-0E100iMZEA17,ZWE219..E,G202304

SEAT COVER MATERIAL-SYNTHETIC LEATHER

55328CPIN, INSTRUMENT PANEL, NO.2

main55328-02800iNRE210..E201906-202303

55330BREINFORCEMENT ASSY, INSTRUMENT PANEL

main55330-02690iMZEA17,ZWE219202304

main55330-02B80iNRE210..E201906-202512

AUDIO(OVERSEAS MARKET)-AVN(12.1INCH) & 4SPEAKER

main55330-02B80iNRE210..G,N;MZEA11,ZWE211201906-202303

55349CCUSHION, INSTRUMENT PANEL

main55349-02360iMZEA17,ZWE219..E,G202304

SEAT COVER MATERIAL-SYNTHETIC LEATHER

main55349-02360iNRE210..G,N;MZEA11,ZWE211201906-202303

55395BRACKET, INSTRUMENT PANEL TO PEDAL

main55395-02130iMZEA17,ZWE219201906-202303

55400PAD ASSY, INSTRUMENT PANEL SAFETY

main55400-02210-C1iMZEA17,ZWE219..N202304

BLACK,TRIM2#

main55400-02500-C1iMZEA17,ZWE219..N202304

SEAT COVER MATERIAL-SYNTHETIC LEATHER,SOFT BLACK,TRIM2#

main55400-02500-C1iNRE210..N;MZEA11,ZWE211..E,N201906-202303

SOFT BLACK,TRIM1#,2#

main55400-02500-C1iMZEA17,ZWE219..G202304

SOFT BLACK,TRIM2#,4#

main55400-02500-C1iMZEA17,ZWE219..G202304

SOFT BLACK,TRIM2#

main55400-02510-C1iMZEA11,NRE210,ZWE211..G201906-202303

SOFT BLACK,TRIM1#,2#

55401FCLIP(FOR SAFETY PAD)

main52161-02040iMZEA17,ZWE219..E,G201906-202303

(L)

main52161-02040iMZEA17,ZWE219..N202304

SEAT COVER MATERIAL-SYNTHETIC LEATHER,(L)

main52161-16010iNRE210..G,N;MZEA11,ZWE211¥120201906-202303

(J)

sub52161-0K040¥120

main52161-16010iMZEA17,ZWE219..N¥120202304

SEAT COVER MATERIAL-SYNTHETIC LEATHER,(J)

sub52161-0K040¥120

55472CPANEL, INSTRUMENT PANEL SPEAKER, NO.1

main55472-02070-C0iMZEA17,ZWE219..N202304

BLACK,TRIM2#

main55472-02180-C0iMZEA17,ZWE219..G202304

SEAT COVER MATERIAL-SYNTHETIC LEATHER,BLACK,TRIM2#

main55472-02180-C0iMZEA17,ZWE219..E202304

BLACK,TRIM2#,4#

main55472-02180-C0iMZEA17,ZWE219..E202304

BLACK,TRIM2#

main55472-02180-C0iNRE210..G,N;MZEA11,ZWE211..CVT201906-202303

BLACK,TRIM1#,2#

55473BPANEL, INSTRUMENT PANEL SPEAKER, NO.2

main55473-02160-C0iNRE210..G,N;MZEA11,ZWE211..CVT201906-202303

BLACK,TRIM1#,2#

main55473-02160-C0iMZEA17,ZWE219..G202304

BLACK,TRIM2#,4#

main55473-02160-C0iMZEA17,ZWE219..G202304

BLACK,TRIM2#

main55473-02160-C0iMZEA17,ZWE219..G202304

SEAT COVER MATERIAL-SYNTHETIC LEATHER,BLACK,TRIM2#

main55473-02200-C0iMZEA17,ZWE219..N202304

BLACK,TRIM2#

55961NOZZLE, SIDE DEFROSTER, NO.1

main55961-02280-C0iMZEA17,ZWE219..G202304

SEAT COVER MATERIAL-SYNTHETIC LEATHER,BLACK,TRIM2#

main55961-02280-C0iMZEA17,ZWE219..E202304

BLACK,TRIM2#,4#

main55961-02280-C0iMZEA17,ZWE219..E202304

BLACK,TRIM2#

main55961-02280-C0iNRE210..G,N;MZEA11,ZWE211201906-202303

BLACK,TRIM1#,2#

55962NOZZLE, SIDE DEFROSTER, NO.2

main55962-02240-C0iMZEA17,ZWE219..E202304

BLACK,TRIM2#,4#

main55962-02240-C0iNRE210..G,N;MZEA11,ZWE211201906-202303

BLACK,TRIM1#,2#

main55962-02240-C0iMZEA17,ZWE219..G202304

BLACK,TRIM2#

main55962-02240-C0iMZEA17,ZWE219..G202304

SEAT COVER MATERIAL-SYNTHETIC LEATHER,BLACK,TRIM2#

73960AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR

main73960-02340iMZEA17,ZWE219..E,G202304

SEAT COVER MATERIAL-SYNTHETIC LEATHER

main73960-02350iMZEA17,ZWE219..N202304

main73960-02460iNRE210..G,N;MZEA11,ZWE211201906-202512

8202

9010508473

main90105-08473¥100

9010508478

main90105-08478¥80

9010508526

main90105-08526¥100

90105C0217

main90105-C0217

90105C0318

main90105-C0318

90105C0407

main90105-C0407

9011906951

main90119-06951¥80

9011908C96

main90119-08C96¥80

9011908D16

main90119-08D16¥100

90119C0074

main90119-C0074

90119C0107

main90119-C0107

90119C0223

main90119-C0223

90119C0263

main90119-C0263

90119C0478

main90119-C0478

9015960613

main90159-60613¥60

90159C0016

main90159-C0016

90159C0032

main90159-C0032

90167C0004

main90167-C0004

90178C0032

main90178-C0032

90178C0034

main90178-C0034

9017906274

main90179-06274¥70

9017906278

main90179-06278¥100

9018305094

main90183-05094¥90

9046705171

main90467-05171¥60

9167380616

main91673-80616¥60

9167380816

main91673-80816¥80

9356855014

main93568-55014¥70

9415180600

main94151-80600¥60

9415180800

main94151-80800¥80

49 parts on this diagram · 13 diagrams in section
