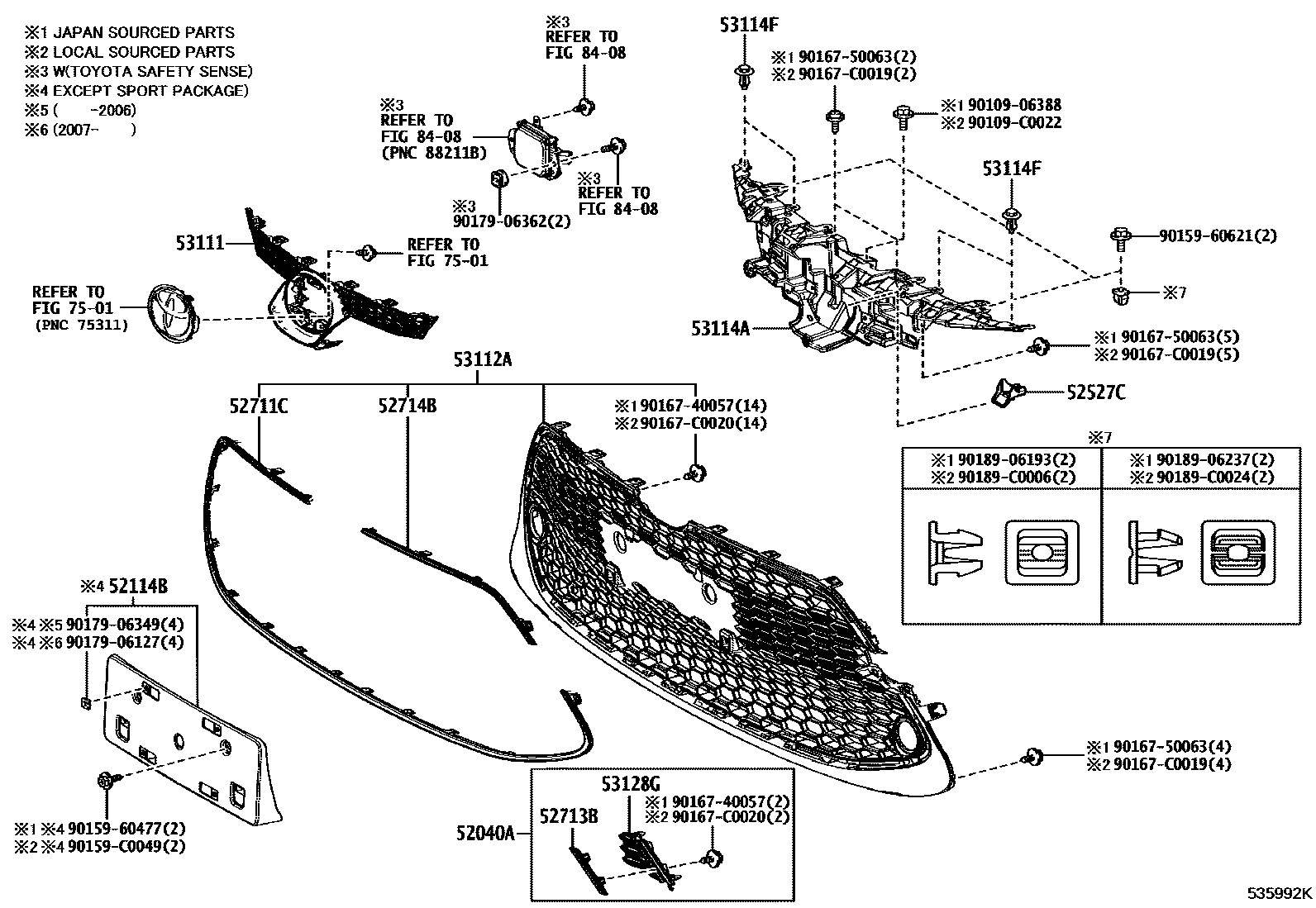

RADIATOR GRILLE

0001 1 0003 1 0004 1SPORT PACKAGE 0006 1 0007 1

52040ACOVER ASSY, FRONT BUMPER HOLE, LH

main52040-02380iMZEA17,ZWE219..E202304

main52040-02410iNRE210..E201906-202303

52114BBRACKET, FRONT BUMPER EXTENSION MOUNTING

main52114-02280iNRE210..G,N;MZEA11,ZWE211201906-202303

52527CRETAINER, FRONT BUMPER, LOWER NO.2

main52527-02090iMZEA17,ZWE219201906-202303

52711CMOULDING, FRONT BUMPER

main52711-02290iNRE210..G;MZEA11,ZWE211..E,G201906-202303

52713BMOULDING, FRONT BUMPER SIDE, LH

main52713-02090iNRE210..G;MZEA11,ZWE211..E,G201906-202303

52714BMOULDING, FRONT BUMPER, NO.2

main52714-02020iNRE210..G;MZEA11,ZWE211..E,G201906-202303

main52714-02040iMZEA17,ZWE219..N202304

main52714-02060iMZEA17,ZWE219..E202304

53111GRILLE, RADIATOR

main53111-02A30iNRE210..G,N;MZEA11,ZWE211201906-202303

NO PAINT REQ.

53112AGRILLE, RADIATOR, LOWER

main53102-02420iMZEA11,NRE210,ZWE211..G201906-202303

main53102-02520iMZEA11,ZWE211..E201906-202303

main53112-02C80iMZEA11,NRE210,ZWE211..N201906-202303

main53112-02E60iMZEA17,ZWE219..N202304

main53112-02E70iMZEA17,ZWE219..E202304

main53112-02E80iMZEA17,ZWE219..G202304

53114AGRILLE, RADIATOR, INNER

main53114-02350iNRE210..G,N;MZEA11,ZWE211201906-202303

main53114-02520iMZEA17,ZWE219..G202304

53114FCLIP, RADIATOR GRILLE

main90467-05063-C0iNRE210..E202203-202303

BLACK,(J)

sub90467-05063

main90467-05063-C0iZWE211..N;MZEA11,NRE210..G,N202203-202303

ACTIVE SAFETY PACKAGE-TOYOTA SAFETY SENSE,BLACK

sub90467-05063

main90467-05063-C0iMZEA17,ZWE219201906-202310

BLACK

sub90467-05063

main90467-05063-C0iZWE211..N;MZEA11,NRE210..G,N202203-202303

TECH PACKAGE&CLEARANCE & BACK SONAR-WITH,BLACK,(J)

sub90467-05063

main90467-C0086-C0iZWE211..N;MZEA11,NRE210..G,N202203-202303

TECH PACKAGE&CLEARANCE & BACK SONAR-WITH,BLACK,(L)

main90467-C0086-C0iZWE211..N;MZEA11,NRE210..G,N202203-202303

BLACK,(L)

53128GGRILLE, RADIATOR, LOWER SIDE LH

main53128-02180iMZEA11,NRE210,ZWE211..N201906-202303

main53128-02190iNRE210..G;MZEA11,ZWE211..E,G201906-202303

main53128-02420iMZEA17,ZWE219..N202304

main53128-02430iMZEA17,ZWE219..E202304

main53128-02900iMZEA17,ZWE219..G202304

7501

8408

9010906388

main90109-06388

90109C0022

main90109-C0022

9015960477

main90159-60477

9015960621

main90159-60621

90159C0049

main90159-C0049

9016740057

main90167-40057

9016750063

main90167-50063

90167C0019

main90167-C0019

90167C0020

main90167-C0020

9017906127

main90179-06127

9017906349

main90179-06349

9017906362

main90179-06362

9018906193

main90189-06193

9018906237

main90189-06237

90189C0006

main90189-C0006

90189C0024

main90189-C0024

29 parts on this diagram · 5 diagrams in section
