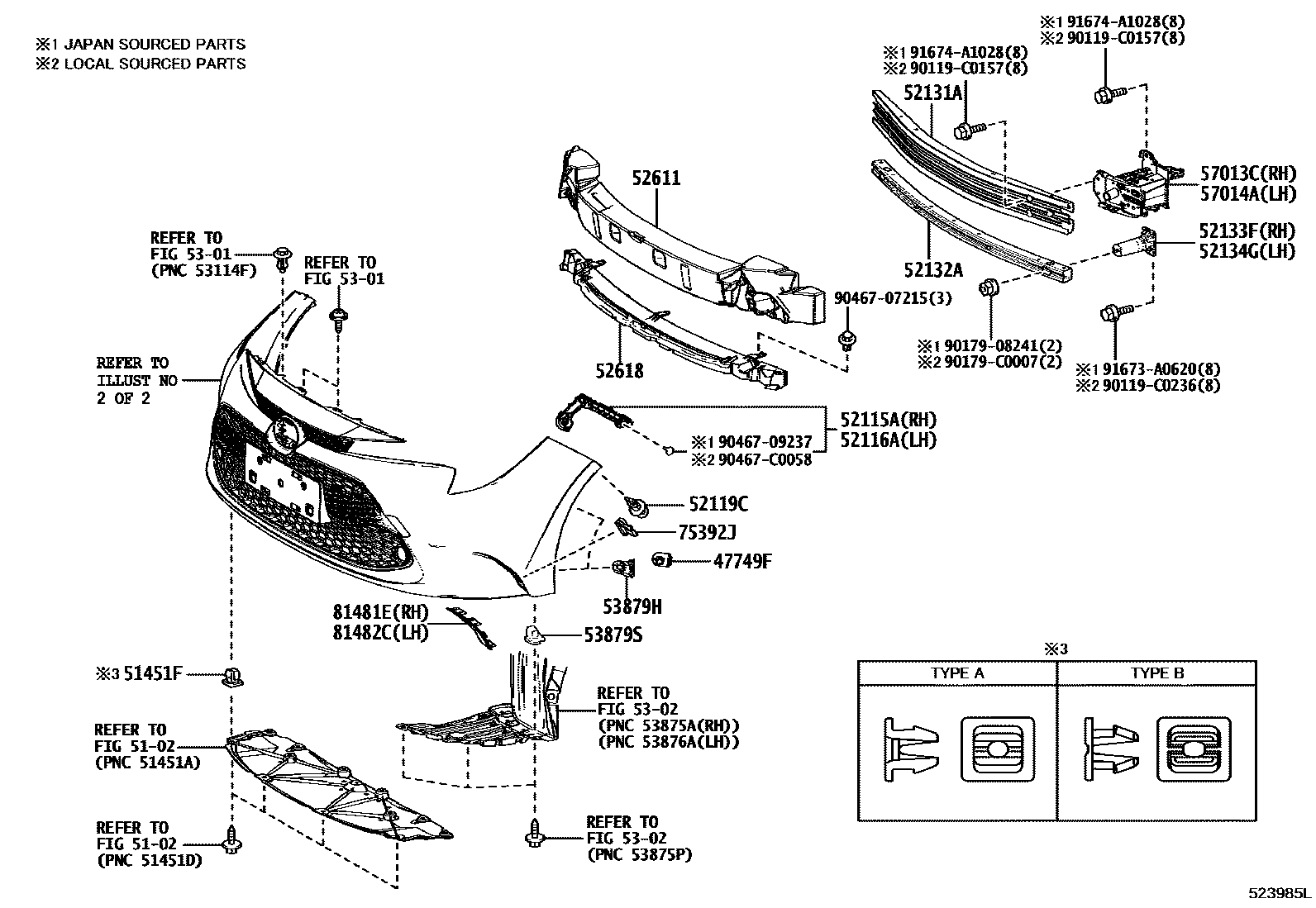

FRONT BUMPER & BUMPER STAY

0001 1 0003 1 0005 1SPORT PACKAGE 0007 1SPORT PACKAGE 0009 1 0010 1 0011 1 0013 1

47749FCLIP, PIN HOLD

main47749-02080iNRE210..E202202-202303

(L)

main47749-30090iMZEA17,ZWE219¥200202202-202303

(J)

main47749-33030iMZEA11,NRE210,ZWE211¥200201906-202202

5102

51451FGROMMET, NO.1

main90189-06193iMZEA17,ZWE219¥80201906-202303

(J),T/P A:REF.ILLUST

main90189-06237iMZEA17,ZWE219¥100201906-202303

(J),T/P B:REF.ILLUST

main90189-C0006iNRE210..E201906-202303

(L),T/P A:REF.ILLUST

main90189-C0024iNRE210..G,N;MZEA11,ZWE211201906-202303

(L),T/P B:REF.ILLUST

52115ASUPPORT, FRONT BUMPER SIDE, RH

main52115-02540iNRE210..E201906-202303

52116ASUPPORT, FRONT BUMPER SIDE, LH

main52116-02530iNRE210..E201906-202303

52119CCLIP, FRONT BUMPER COVER

main90467-05170iNRE210..G,N;MZEA11,ZWE211¥80201906-202303

(J)

main90467-C0032iNRE210..G,N;MZEA11,ZWE211201906-202303

(L)

52131AREINFORCEMENT, FRONT BUMPER

main52131-02350iNRE210..G,N;MZEA11,ZWE211..CVT201906-202303

52132AREINFORCEMENT, FRONT BUMPER, NO.2

main52132-02130iNRE210..G,N;MZEA11,ZWE211..CVT201906-202303

52133FBRACKET, FRONT BUMPER, RH

main52133-02190iNRE210..G,N;MZEA11,ZWE211..CVT201906-202303

52134GBRACKET, FRONT BUMPER, LH

main52133-02190iNRE210..G,N;MZEA11,ZWE211..CVT201906-202303

52611ABSORBER, FRONT BUMPER ENERGY

main52611-02630iNRE210..G,N;MZEA11,ZWE211201906-202303

main52611-02730iMZEA17,ZWE219..E,N202304

main52611-02740iMZEA17,ZWE219..G202304

52618ABSORBER, FRONT BUMPER, LOWER

main52618-02250iNRE210..G,N;MZEA11,ZWE211201906-202303

main52618-02360iMZEA17,ZWE219..G202304

5301

5302

53879HRETAINER, FRONT FENDER LINER

main53879-02080iNRE210..E202202-202303

(L)

main53879-30090iMZEA17,ZWE219¥270202202-202303

(J)

main53879-33030iMZEA11,NRE210,ZWE211¥270201906-202202

53879SRETAINER, FRONT FENDER LINER

main53879-17020iMZEA17,ZWE219¥180201906-202303

57013CBRACKET SUB-ASSY, FRONT SIDE MEMBER, RH

main57013-02260iNRE210..G,N;MZEA11,ZWE211..CVT201906-202303

57014ABRACKET SUB-ASSY, FRONT SIDE MEMBER, LH

main57014-02260iNRE210..G,N;MZEA11,ZWE211..CVT201906-202303

75392JRETAINER, OUTSIDE MOULDING

main75392-0R030iMZEA17..N201910-202303

(L)

main75392-0R030iMZEA17,ZWE219..E,N202304

VFM PACKAGE,(J)

main75392-0R040iMZEA17,ZWE219..E,N202304

#,(L)

main75392-35220iNRE210,ZWE211¥130201906-201910

SPORT PACKAGE&CLEARANCE & BACK SONAR-WITH

main75392-35220iNRE210..E¥130201910-202303

(J)

main75392-35220iMZEA17,ZWE219..E,N¥130202304

VFM PACKAGE,(L)

81481ECOVER, FOG LAMP, RH

main81481-02921iMZEA17,ZWE219..G202304

PAINT REQ.

main81481-02B80iNRE210..E201906

NO PAINT REQ.

main81481-02B80iNRE210..G,N;MZEA11,ZWE211201906-202303

81482CCOVER, FOG LAMP, LH

main81482-02900iMZEA17,ZWE219..G202304

PAINT REQ.

main81482-02B80iMZEA17,ZWE219..E,N201906

NO PAINT REQ.

main81482-02B80iNRE210..G,N;MZEA11,ZWE211201906-202303

90119C0157

main90119-C0157

90119C0236

main90119-C0236

9017908241

main90179-08241¥80

90179C0007

main90179-C0007

9046707215

main90467-07215¥80

9046709237

main90467-09237¥80

90467C0058

main90467-C0058

91673A0620

main91673-A0620¥60

91674A1028

main91674-A1028¥120

30 parts on this diagram · 8 diagrams in section
