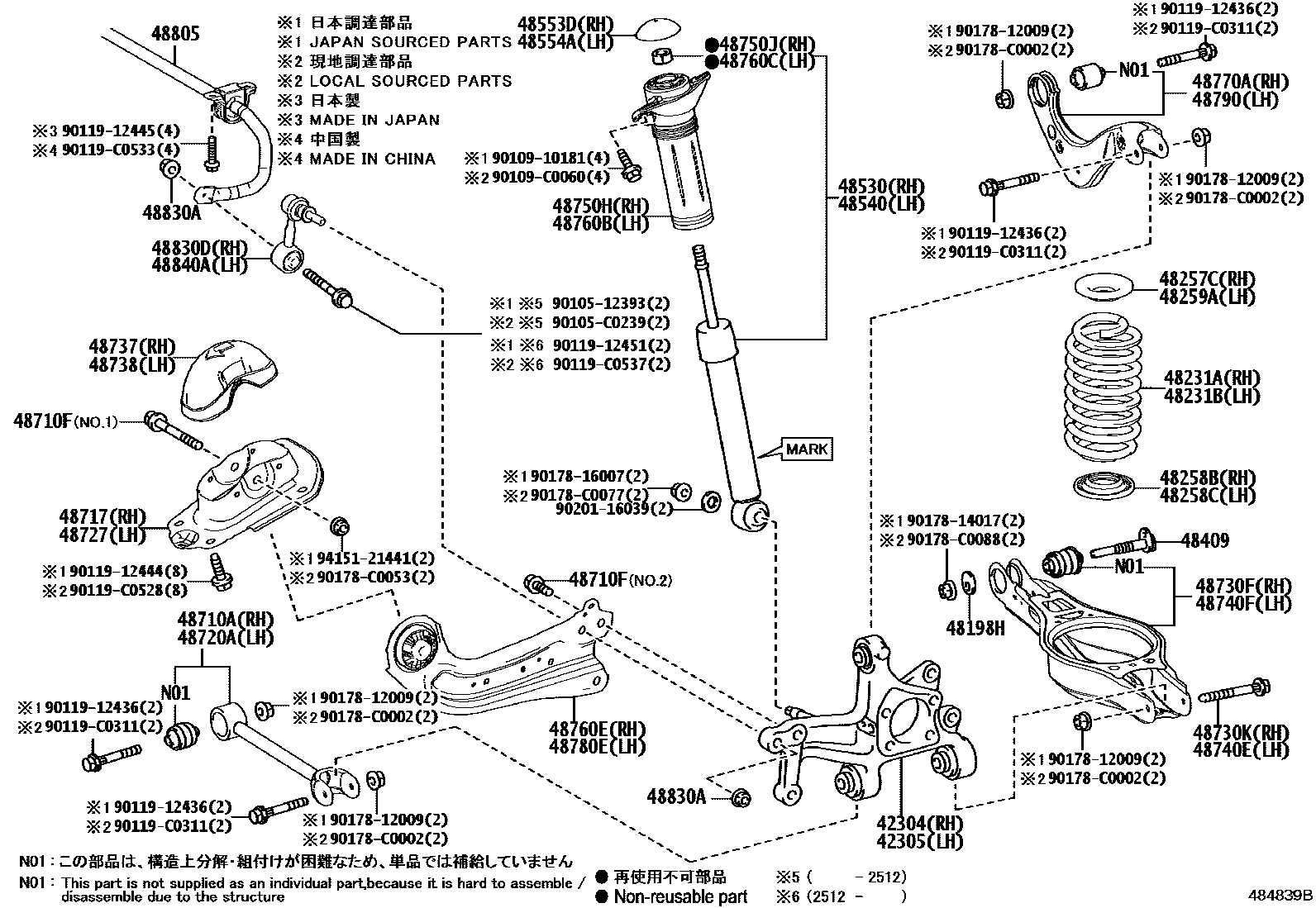

REAR SPRING & SHOCK ABSORBER

0001 1 0003 1 0004 1

42304CARRIER SUB-ASSY, REAR AXLE, RH

main42304-02380iNRE210..E201906-202303

42305CARRIER SUB-ASSY, REAR AXLE, LH

main42305-02380iNRE210..G,N;MZEA11,ZWE211..CVT201906-202303

48198HCAM, CAMBER ADJUST, NO.2

main48198-02020iNRE210..E201906-202303

(L)

main48198-47010iNRE210..E¥520201906-202303

(J)

48231ASPRING, COIL, REAR RH

main48231-02S10iNRE210,ZWE211201906-202009

sub48231-02S11

main48231-02S11iZWE211;NRE210..G,N202010-202512

main48231-02S21iMZEA11202101-202303

main48231-02U30iZWE219..E,G202304

main48231-02U50iMZEA17202304

main48231-02Y40iZWE219..N202304

48231BSPRING, COIL, REAR LH

main48231-02S10iNRE210,ZWE211201906-202009

sub48231-02S11

main48231-02S11iZWE211;NRE210..G,N202010-202512

main48231-02S21iMZEA11202101-202303

main48231-02U30iZWE219..E,G202304

main48231-02U50iMZEA17202304

main48231-02Y40iZWE219..N202304

48257CINSULATOR, REAR COIL SPRING, UPPER RH

main48257-06040iNRE210..G,N;MZEA11,ZWE211..CVT201906-202303

48258BINSULATOR, REAR COIL SPRING, LOWER RH

main48258-06240iNRE210..E201906-202303

main48258-0A060iMZEA17202304

48258CINSULATOR, REAR COIL SPRING, LOWER LH

main48258-06240iNRE210..G,N;MZEA11,ZWE211..CVT201906-202303

main48258-0A060iMZEA17202304

48259AINSULATOR, REAR COIL SPRING, UPPER LH

main48257-06040iNRE210..G,N;MZEA11,ZWE211..CVT201906-202303

48409CAM SUB-ASSY, REAR SUSPENSION TOE ADJUST

main48409-02010iNRE210..E201906-202303

(L)

main48409-47011iZWE219¥640201906-202303

(J)

48530ABSORBER ASSY, SHOCK, REAR RH

main48530-8Z144iNRE210..G,N;MZEA11,ZWE211..CVT201906-202303

MARK 48530-02S00

main48530-8Z233iZWE219202304

MARK 48530-02T70

main48530-8Z234iMZEA17202304

MARK 48530-02T80

48540ABSORBER ASSY, SHOCK, REAR LH

main48530-8Z144iNRE210..G,N;MZEA11,ZWE211..CVT201906-202303

MARK 48530-02S00

main48530-8Z233iZWE219202304

MARK 48530-02T70

main48530-8Z234iMZEA17202304

MARK 48530-02T80

48553DCAP, REAR SHOCK ABSORBER, RH

main48553-06020iNRE210..G,N;MZEA11,ZWE211..CVT201906-202303

48554ACAP, REAR SHOCK ABSORBER, LH

main48553-06020iNRE210..G,N;MZEA11,ZWE211..CVT201906-202303

48710AARM ASSY, REAR SUSPENSION, NO.1 RH

main48710-F4040iNRE210..G,N;MZEA11,ZWE211..CVT201906-202303

48710FBOLT(FOR REAR TRAILING ARM)

main90105-14195iZWE219¥310201906-202303

(J),NO.1

main90105-14197iZWE219¥190201906-202303

(J),NO.2

main90105-C0241iNRE210..E201906-202303

(L),NO.1

main90105-C0245iNRE210..E201906-202303

(L),NO.2

48717BRACKET, REAR SUSPENSION ARM, RH

main48717-06040iNRE210..G,N;MZEA11,ZWE211..CVT201906-202303

main48717-0A070iMZEA17202304

48720AARM ASSY, REAR SUSPENSION, NO.1 LH

main48710-F4040iNRE210..G,N;MZEA11,ZWE211..CVT201906-202303

48727BRACKET, REAR SUSPENSION ARM, LH

main48727-06070iNRE210..G,N;MZEA11,ZWE211..CVT201906-202303

main48727-0A070iMZEA17202304

48730FARM ASSY, REAR SUSPENSION, NO.2 RH

main48730-F4050iNRE210..E201906-202303

48730KBOLT(FOR REAR SUSPENSION ARM NO.2 RH)

main90119-12426iNRE210..G,N;MZEA11,ZWE211..CVT¥240201906-202303

(J)

main90119-C0310iZWE219201906-202303

(L)

48737COVER, REAR SUSPENSION ARM, RH

main48753-06100iNRE210..G,N;MZEA11,ZWE211..CVT201906-202303

48738COVER, REAR SUSPENSION ARM, LH

main48753-06110iNRE210..G,N;MZEA11,ZWE211..CVT201906-202303

48740EBOLT(FOR REAR SUSPENSION ARM NO.2 LH)

main90119-12426iNRE210..G,N;MZEA11,ZWE211..CVT¥240201906-202303

(J)

main90119-C0310iZWE219201906-202303

(L)

48740FARM ASSY, REAR SUSPENSION, NO.2 LH

main48730-F4050iNRE210..G,N;MZEA11,ZWE211..CVT201906-202303

48750HSUPPORT ASSY, REAR SUSPENSION, RH

main48750-0A080iMZEA17202304

main48750-F4030iNRE210..E201906-202303

48750JNUT(FOR REAR SUPPORT TO REAR SHOCK ABSORBER RH)

main90170-C0010iNRE210..G,N;MZEA11,ZWE211..CVT201906-202303

main90170-C0010iZWE219202304

(L)

main94130-61200iZWE219¥100202304

(J)

48760BSUPPORT ASSY REAR SUSPENSION, LH

main48750-F4030iNRE210..G,N;MZEA11,ZWE211..CVT201906-202303

main48760-0A090iMZEA17202304

48760CNUT(FOR REAR SUPPORT TO REAR SHOCK ABSORBER LH)

main90170-C0010iNRE210..G,N;MZEA11,ZWE211..CVT201906-202303

main90170-C0010iZWE219202304

(L)

main94130-61200iZWE219¥100202304

(J)

48760EARM ASSY, TRAILING, REAR RH

main48760-F4050iNRE210..G,N;MZEA11,ZWE211..CVT201906-202303

48770AARM ASSY, UPPER CONTROL, REAR RH

main48770-06040iNRE210..E201906-202303

48780EARM ASSY, TRAILING, REAR LH

main48780-F4050iNRE210..G,N;MZEA11,ZWE211..CVT201906-202303

48790ARM ASSY, UPPER CONTROL, REAR LH

main48790-06040iNRE210..G,N;MZEA11,ZWE211..CVT201906-202303

48805BAR SUB-ASSY, REAR STABILIZER

main48805-02080iZWE219..E,G202304

main48805-02160iNRE210..G,N;MZEA11,ZWE211201906-202512

48830ANUT(FOR REAR STABILIZER LINK)

main90178-C0018iZWE219..N201906-202512

(L)

main94151-21241iNRE210..E¥100201906-202512

(J)

48830DLINK ASSY, REAR STABILIZER, RH

main48830-02050iNRE210..E202304-202512

main48830-F4020iNRE210..E201906-202409

sub48830-02050

48840ALINK ASSY, REAR STABILIZER, LH

main48830-02050iNRE210..E202304-202512

main48830-F4020iNRE210..G,N;MZEA11,ZWE211201906-202409

sub48830-02050

9010512393

main90105-12393¥190

90105C0239

main90105-C0239

9010910181

main90109-10181¥160

90109C0060

main90109-C0060

9011912436

main90119-12436¥240

9011912444

main90119-12444¥190

9011912445

main90119-12445¥160

9011912451

main90119-12451¥190

90119C0311

main90119-C0311

90119C0528

main90119-C0528

90119C0533

main90119-C0533

90119C0537

main90119-C0537

9017812009

main90178-12009¥120

9017814017

main90178-14017¥120

9017816007

main90178-16007¥160

90178C0002

main90178-C0002

90178C0053

main90178-C0053

90178C0077

main90178-C0077

90178C0088

main90178-C0088

9020116039

main90201-16039¥120

9415121441

main94151-21441¥120

58 parts on this diagram · 3 diagrams in section
