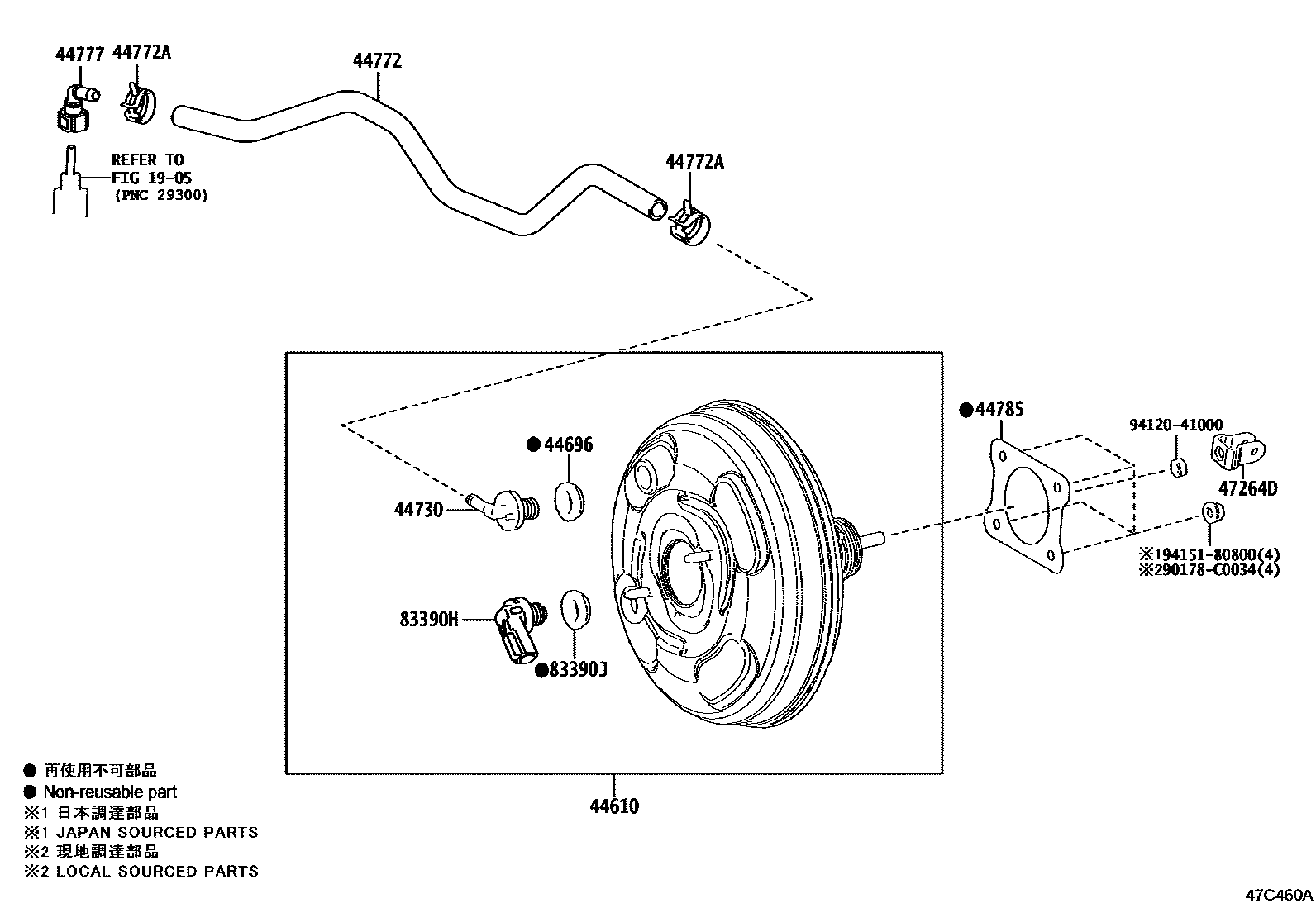

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1 0003 1

1905

44610BOOSTER ASSY, BRAKE

main44610-02K00iNRE210..E201906-202512

main44610-02K10iMZEA11202101-202303

44696GROMMET, CHECK VALVE

main90016-AT003iMZEA17202304

main90016-AT003iMZEA11;NRE210..G,N202201-202512

##

main90080-48071iMZEA11201906-202303

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-52010iMZEA11;NRE210..G,N201906-202303

44772HOSE, CHECK VALVE TO CONNECTOR TUBE

main44772-02300iNRE210..E201906-202303

main44772-02310iMZEA17202101-202303

44772ACLIP(FOR CHECK VALVE TO CONNECTOR TUBE)

main90466-C0034iMZEA11..CVT;NRE210..G,N201906-202303

(L)

main90467-16014iMZEA17201906-202303

(J)

44777CONNECTOR, VACUUM HOSE, NO.1

main44777-12010iMZEA17202210-202303

(J)

main44777-12010iMZEA11..CVT202101-202210

main44777-F4010iMZEA17202210-202303

(L)

44785GASKET, BRAKE BOOSTER

main44785-02050iNRE210..G,N201906-202303

47264DCLEVIS, BRAKE MASTER CYLINDER PUSH ROD

main47264-0P010iMZEA17201906-202303

83390HSWITCH ASSY, VACUUM WARNING

main83390-28120iMZEA11202101-202303

83390JGROMMET, VACUUM WARNING SWITCH

main90016-AT003iMZEA11;NRE210..G,N202201-202512

##

main90016-AT003iMZEA17202304

main90080-48071iMZEA11201906-202303

90178C0034

main90178-C0034

9412041000

main94120-41000

9415180800

main94151-80800

14 parts on this diagram · 3 diagrams in section
