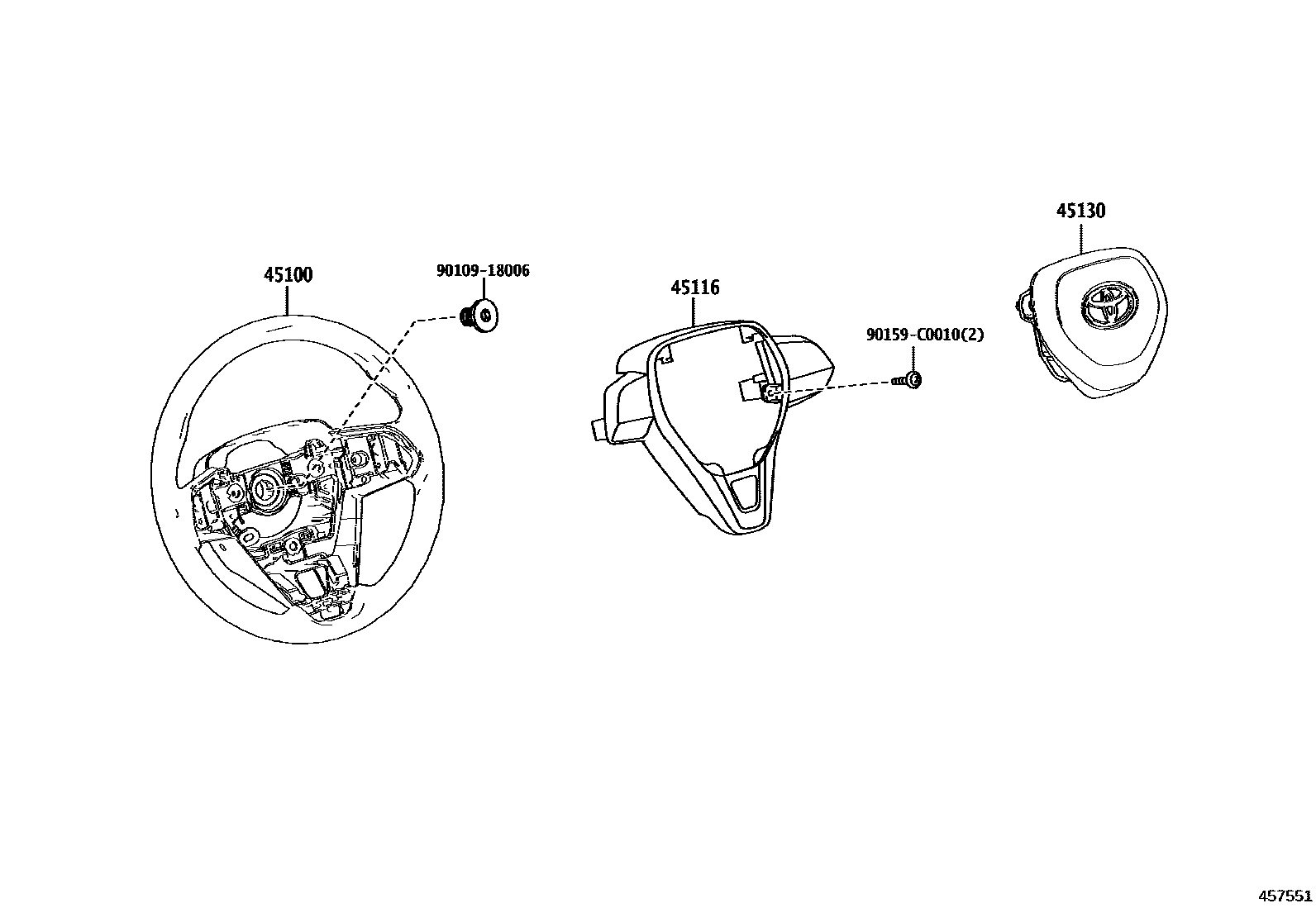

STEERING WHEEL

45100WHEEL ASSY, STEERING

main45100-0Z410-C0iMZEA17,ZWE219..G202304

3-SPOKE,URETHANE,BLACK,TRIM2#,4#

main45100-0Z410-C0iNRE210..N;MZEA11,ZWE211..CVT..(E,N)201906-202303

3-SPOKE,URETHANE,BLACK,TRIM1#,2#

main45100-0Z410-C0iMZEA17,ZWE219..E,N202304

3-SPOKE,URETHANE,BLACK,TRIM2#

main45100-0Z420-C0iMZEA11,NRE210,ZWE211..G201906-202303

3-SPOKE,LEATHER,BLACK,TRIM1#,2#

45116ORNAMENT, STEERING WHEEL, NO.1

main45116-02230iMZEA11,NRE210..CVT..N201906-202303

45130BUTTON ASSY, HORN

main45130-02890-C0iNRE210..G,N;MZEA11,ZWE211..CVT201906-202303

BLACK,TRIM1#,2#

main45130-02890-C0iMZEA17,ZWE219..E,N202304

BLACK,TRIM2#

main45130-02890-C0iMZEA17,ZWE219..E,N202304

BLACK,TRIM2#,4#

9010918006

main90109-18006

90159C0010

main90159-C0010

5 parts on this diagram · 1 diagram in section
