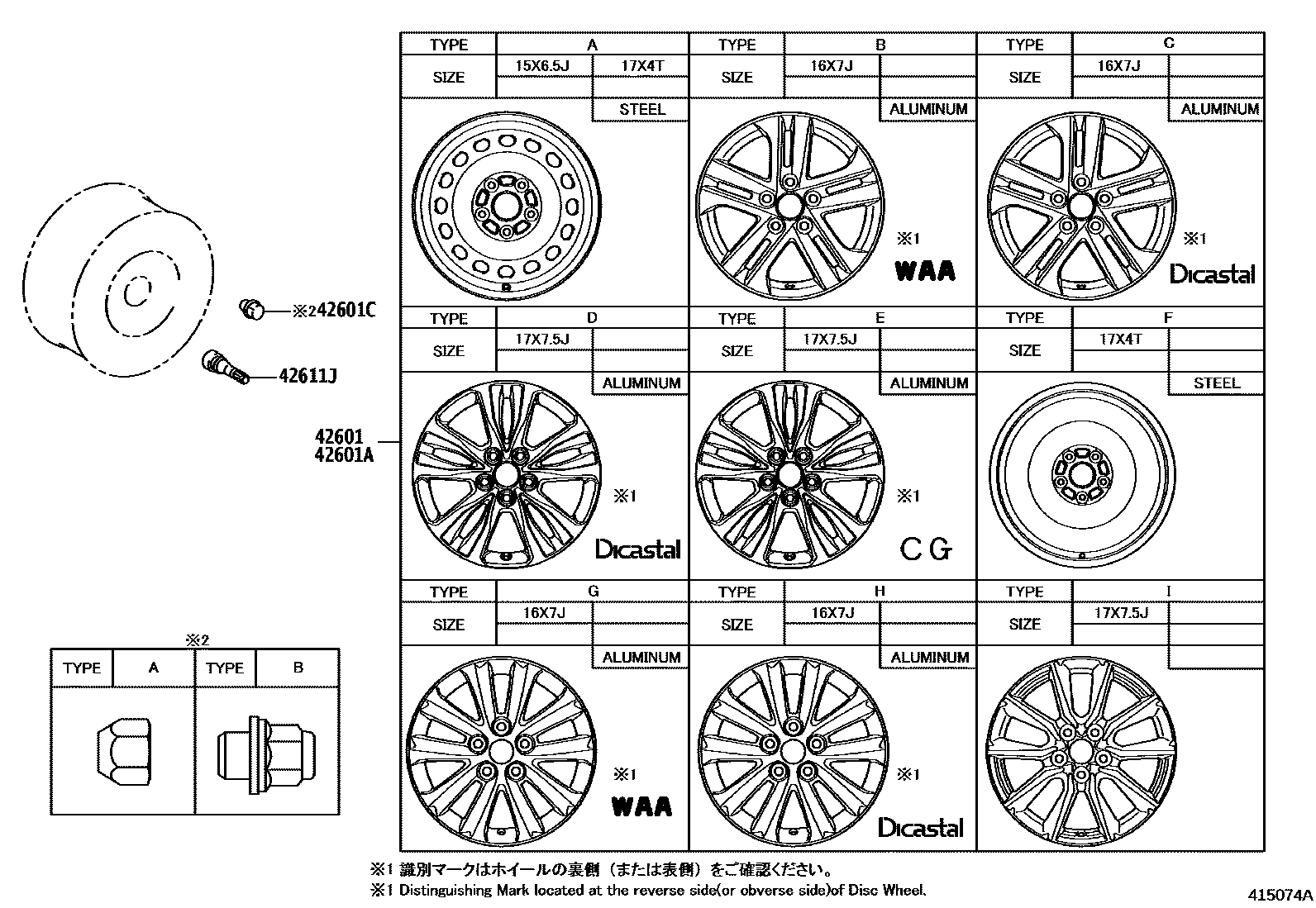

DISC WHEEL & WHEEL CAP

0001 1 0002 1 0003 1

42601WHEEL, DISC

main42611-02T70iNRE210..N201906-202303

15X6.5J,#,TIRE & DISC WHEEL-195/65R15 STEEL,TYPE A:REFER ILLUST.

main42611-02T80iNRE210..E201906-202304

16X7J,#,TYPE B:REFER ILLUST.

main42611-02T90iNRE210..G,N;MZEA11,ZWE211201906-202304

16X7J,#,TYPE C:REFER ILLUST.

main42611-02U00iZWE211..E201906-202304

17X7.5J,#,SPORT PACKAGE,TYPE E:REFER ILLUST.

main42611-02U10iNRE210..E201906-202304

17X7.5J,#,SPORT PACKAGE,TYPE D:REFER ILLUST.

main42611-02X40iZWE219..E202304

16X7J,#,BE,TYPE G:REFER ILLUST.

main42611-02X40iNRE210..E202304

16X7J,#,TYPE G:REFER ILLUST.

main42611-02X50iNRE210..E202304

16X7J,#,TYPE H:REFER ILLUST.

main42611-02X60iZWE219..G202304

17X7.5J,#,TYPE I:REFER ILLUST.

main42611-02X60iZWE219..G202304

17X7.5J,#,SPORT PACKAGE,TYPE I:REFER ILLUST.

main42611-0Z080iZWE219..E202407

17X7.5J, #,BE,TYPE I:REFER ILLUST.

42601AWHEEL, DISC (FOR SPARE)

main42611-02J70iNRE210,ZWE211201906-201908

17X4T,TYPE F:REFER ILLUST.

sub42611-02J71

main42611-02J71iNRE210..G,N;MZEA11,ZWE211201909-202304

17X4T,TYPE F:REFER ILLUST.

main4261B-02010iMZEA17,ZWE219202304

17X4T,TYPE A:REFER ILLUST.

42601CNUT, HUB (FOR AXLE)

main90942-C1001iMZEA17,ZWE219201906-202303

TYPE B:REFER ILLUST.

main90942-C1002iMZEA11..N201906-202303

TIRE & DISC WHEEL-195/65R15 STEEL,TYPE A:REFER ILLUST.

42611JVALVE (FOR TUBELESS TIRE SPARE)

main90942-05009iMZEA17,ZWE219201906-202303

(J)

main90942-C5005iNRE210..E201912-202303

(L)

4 parts on this diagram · 3 diagrams in section
