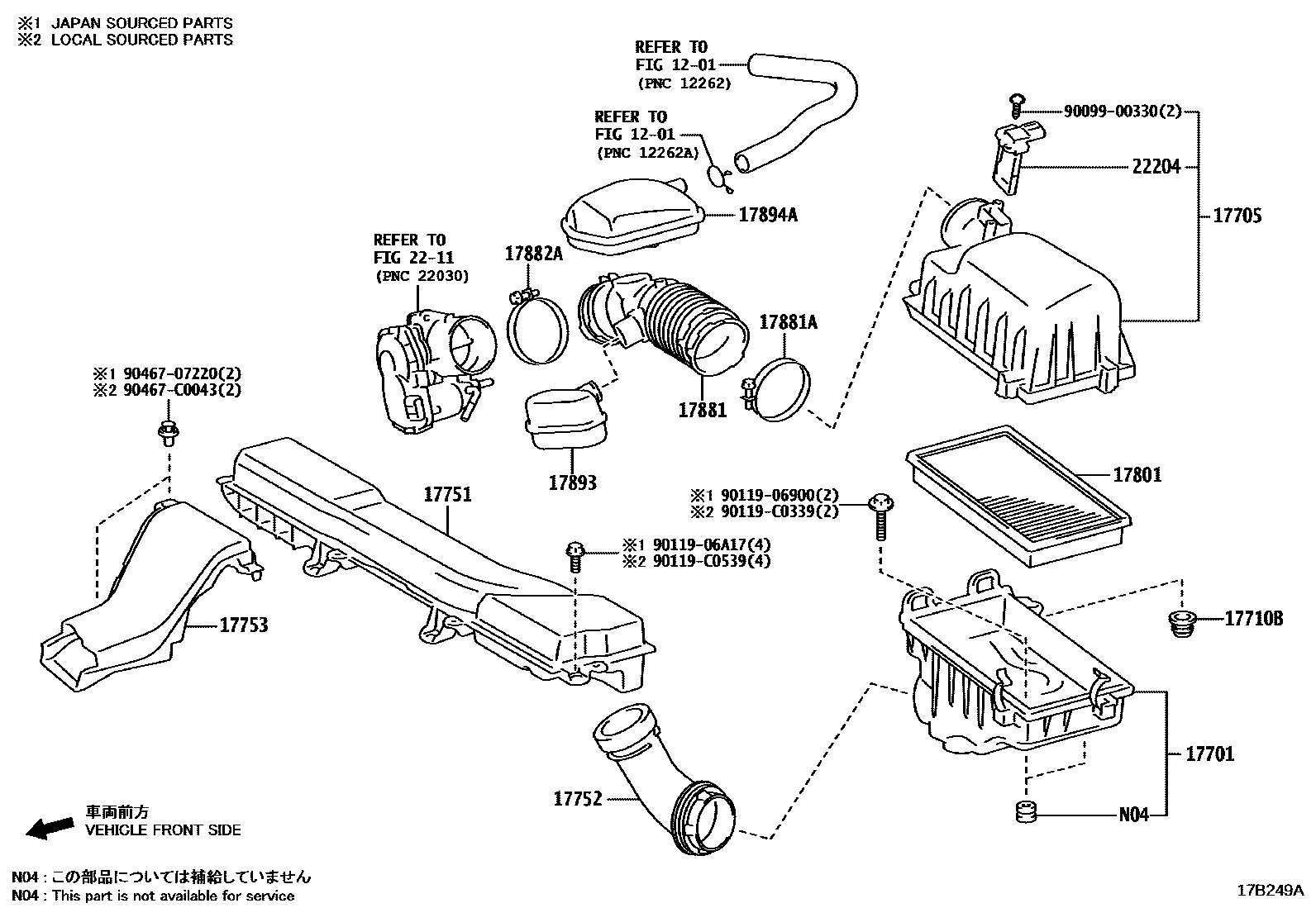

AIR CLEANER
1201
17701CASE SUB-ASSY, AIR CLEANER
17710BGROMMET
17751INLET, AIR CLEANER, NO.1
17752INLET, AIR CLEANER, NO.2
(J)
(L)
17753INLET, AIR CLEANER, NO.3
17801ELEMENT SUB-ASSY, AIR CLEANER FILTER
(L)
(J)
(J)
(L)
17881HOSE, AIR CLEANER, NO.1
17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)
17882ACLAMP(FOR AIR CLEANER HOSE, NO.2)
17893RESONATOR, INTAKE AIR
17894ARESONATOR, INTAKE AIR, NO.2
2211
22204METER SUB-ASSY, INTAKE AIR FLOW
(L)
(J)
9009900330
main90099-00330
9011906900
main90119-06900
9011906A17
main90119-06A17
90119C0339
main90119-C0339
90119C0539
main90119-C0539
9046707220
main90467-07220
90467C0043
main90467-C0043
22 parts on this diagram · 6 diagrams in section
