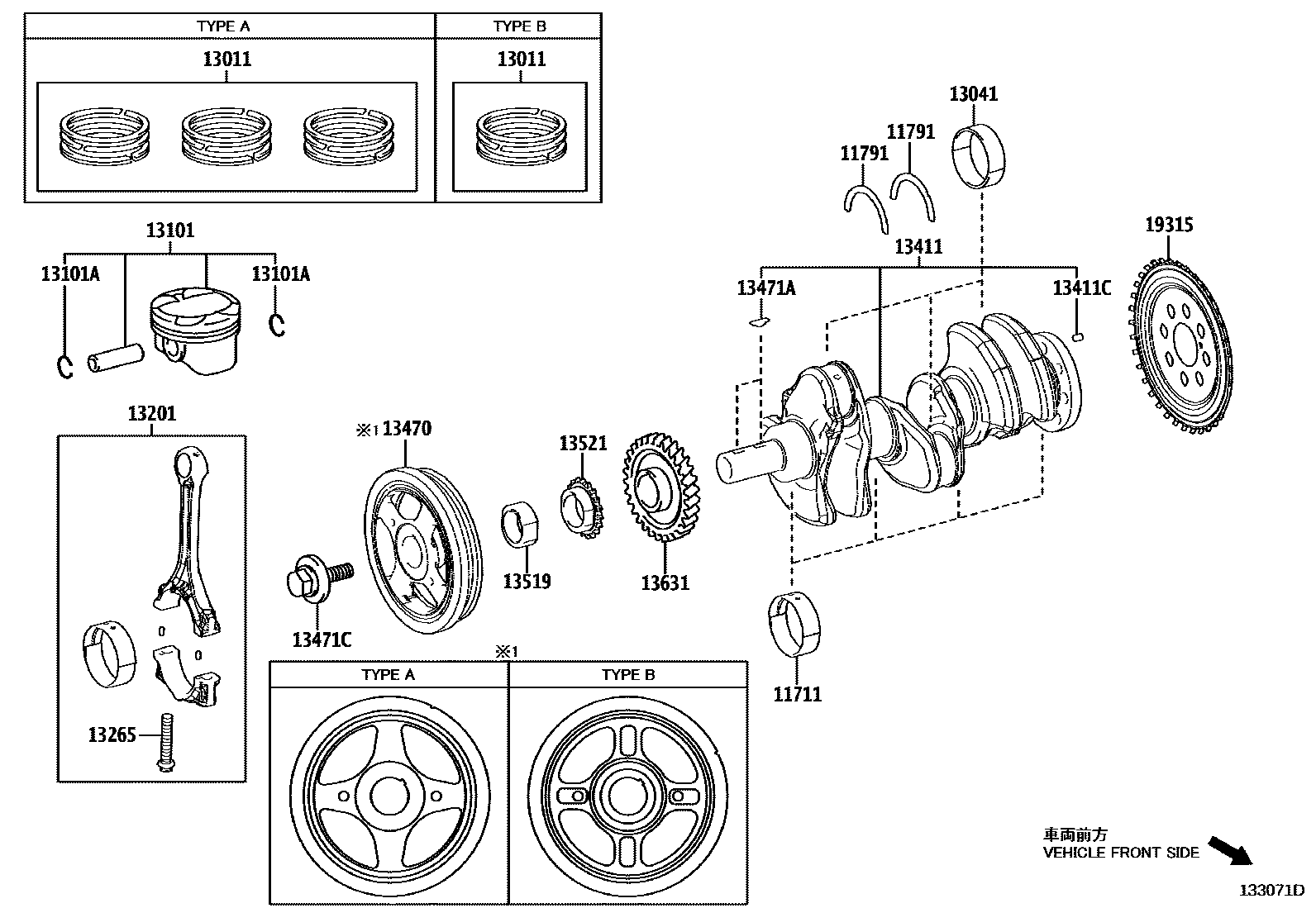

CRANKSHAFT & PISTON
11711BEARING, CRANKSHAFT
MARK1,REFER REPAIR MANUAL
MARK2,REFER REPAIR MANUAL
MARK3,REFER REPAIR MANUAL
MARK4,REFER REPAIR MANUAL
MARK 2,*497,*615:REFER R/M
MARK 2,REFER REPAIR MANUAL
MARK 3,*497,*615:REFER R/M
MARK 3,REFER REPAIR MANUAL
MARK 4,*497,*615:REFER R/M
MARK 4,REFER REPAIR MANUAL
MARK 5,*497,*615:REFER R/M
MARK 5,REFER REPAIR MANUAL
MARK1,*474:REFER R/M
MARK2,*474:REFER R/M
MARK3,*474:REFER R/M
MARK4,*474:REFER R/M
MARK5,*474:REFER R/M
MARK 1,*617:REFER R/M
MARK 1,REFER REPAIR MANUAL
MARK 2,*617:REFER R/M
MARK 2,REFER REPAIR MANUAL
MARK 3,*617:REFER R/M
MARK 3,REFER REPAIR MANUAL
MARK 4,*617:REFER R/M
MARK 4,REFER REPAIR MANUAL
MAK 5,REFER REPAIR MANUAL
MAK 5,*617:REFER R/M
MARK 6,*617:REFER R/M
MARK 6,REFER REPAIR MANUAL
11791WASHER, CRANKSHAFT THRUST, UPPER
STD
STD,*497,*615
STD
STD,*616
STD,*474
STD,*617
STD
13011RING SET, PISTON
STD
STD
STD,(L),*497,*615
STD
STD,TYPE A:REFER ILLUST.
STD,(J),*497,*615
STD,*474
STD,TYPE B:REFER ILLUST.
13041BEARING, CONNECTING ROD
MARK1,REFER R/M
MARK2,REFER R/M
MARK3,REFER R/M
MARK 1,*497,*615:REFER R/M
MARK 1,REFER REPAIR MANUAL
MARK 2,*497,*615:REFER R/M
MARK 2,REFER REPAIR MANUAL
MARK 3,REFER REPAIR MANUAL
MARK 3,*497,*615:REFER R/M
MARK 1,*616:REFER R/M
MARK 2,*616:REFER R/M
MARK 3,*616:REFER R/M
MARK1,*474:REFER R/M
MARK2,*474:REFER R/M
MARK3,*474:REFER R/M
MARK 1,*617:REFER R/M
MARK 1,REFER REPAIR MANUAL
MARK 2,REFER REPAIR MANUAL
MARK 2,*617:REFER R/M
MARK 3,*617:REFER R/M
MARK 3,REFER REPAIR MANUAL
13101PISTON SUB-ASSY, W/PIN
STD
STD,*497,*615
STD
STD,*616
STD,*474
STD,*617
STD
13101ARING, HOLE SNAP(FOR PISTON PIN)
*617,*616
*474
*497,*615
13201ROD SUB-ASSY, CONNECTING
*497,*615
MARK A,*616:REFER R/M
MARK B,*616:REFER R/M
MARK C,*616:REFER R/M
*474
MARK A,REFER REPAIR MANUAL
MARK A,*617:REFER R/M
MARK B,*617:REFER R/M
MARK B,REFER REPAIR MANUAL
MARK C,*617:REFER R/M
MARK C,REFER REPAIR MANUAL
13265BOLT, CONNECTING ROD
*616
*474
*617
13411CRANKSHAFT
*497,*615
*616
*474
*617
13411CPIN, STRAIGHT(FOR CRANKSHAFT)
*617,*616
(J)
(L)
13470PULLEY ASSY, CRANKSHAFT
*474
*497,*615
*617T/P A:REF.ILLUST,*616
TYPE A:REFER ILLUST.
TYPE B:REFER ILLUST.
*617T/P B:REF.ILLUST
13471PULLEY, CRANKSHAFT
13471AKEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET)
*617,*616
13519GEAR, OIL PUMP DRIVE
*497,*615
*616
*474
*617
13521GEAR OR SPROCKET, CRANKSHAFT TIMING
*497,*615
*616
*474
*617
13631GEAR, BALANCESHAFT DRIVE
*616
*617
19315PLATE, CRANK ANGLE SENSOR, NO.1
*616
*617
18 parts on this diagram · 4 diagrams in section
