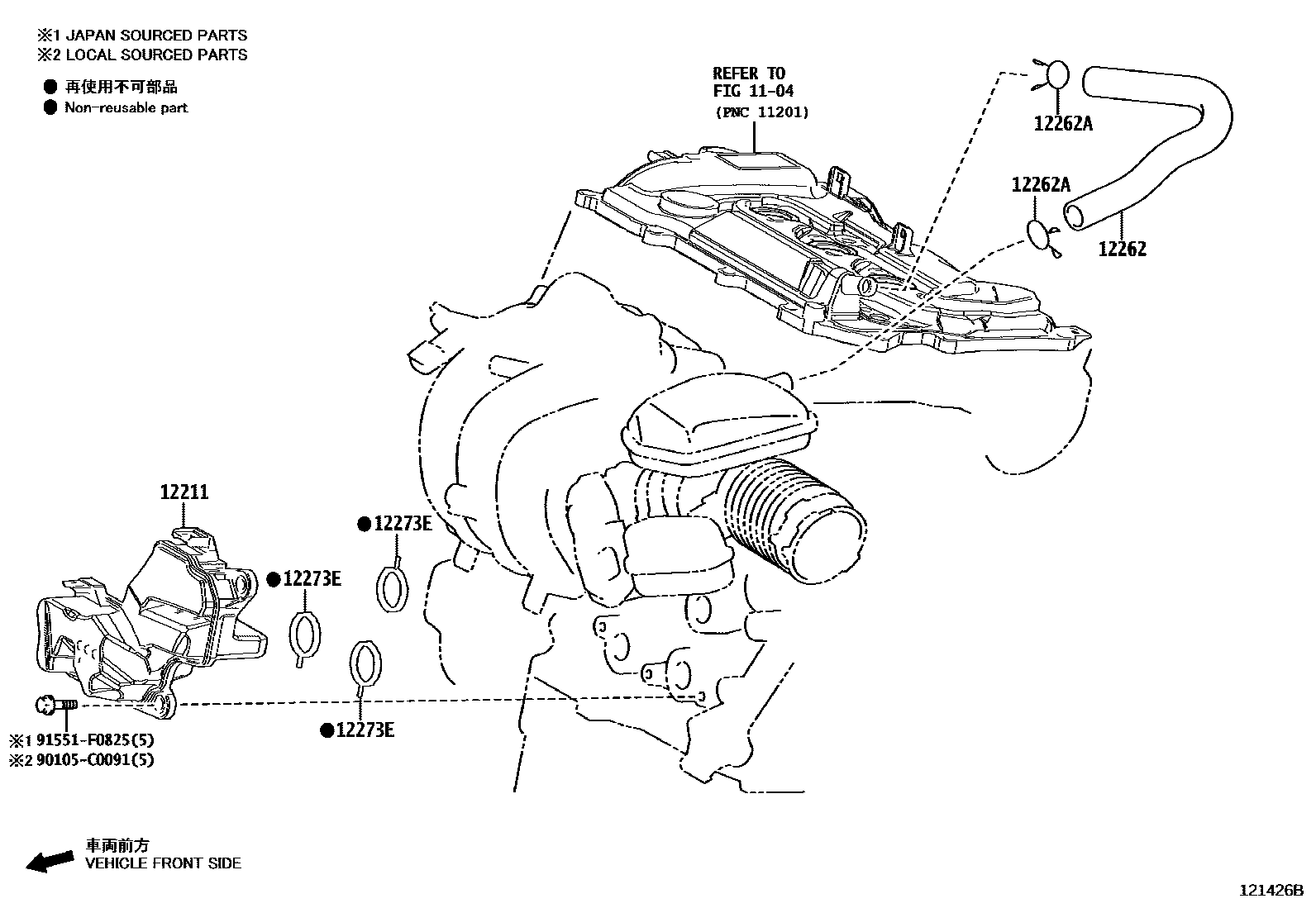

VENTILATION HOSE

0001 1 0002 1 0003 1 0004 1

1104

12211CASE, VENTILATION, NO.1

main12211-0T030i8ZRFXE..ZWE211201906-202303

sub12211-0T050

main12211-0T050i8ZRFXE..ZWE219202304

main12211-15060iM15..MZEA11¥8,000202101-202303

*616

sub12211-15061¥7,300

main12211-F3030iM15..MZEA11202101-202202

*617

sub12211-F3031

main12211-F3031iM15..MZEA17202304

main12211-F3031iM15..MZEA11202203-202303

*617

12262HOSE, VENTILATION, NO.2

main12262-0T070i8ZRFXE..ZWE211201906-202303

main12262-F3030iM15..MZEA11202101-202303

12262ACLIP(FOR VENTILATION HOSE NO.2)

main90467-21004i8ZRFXE..ZWE211¥130201906-202303

12273EGASKET(FOR VENTILATION CASE)

main12273-15010iM15..MZEA11¥340202101-202303

*616

main12273-F3010iM15..MZEA17202304

main12273-F3010iM15..MZEA11202101-202303

*617

90105C0091

main90105-C0091

91551F0825

main91551-F0825¥80

7 parts on this diagram · 4 diagrams in section
