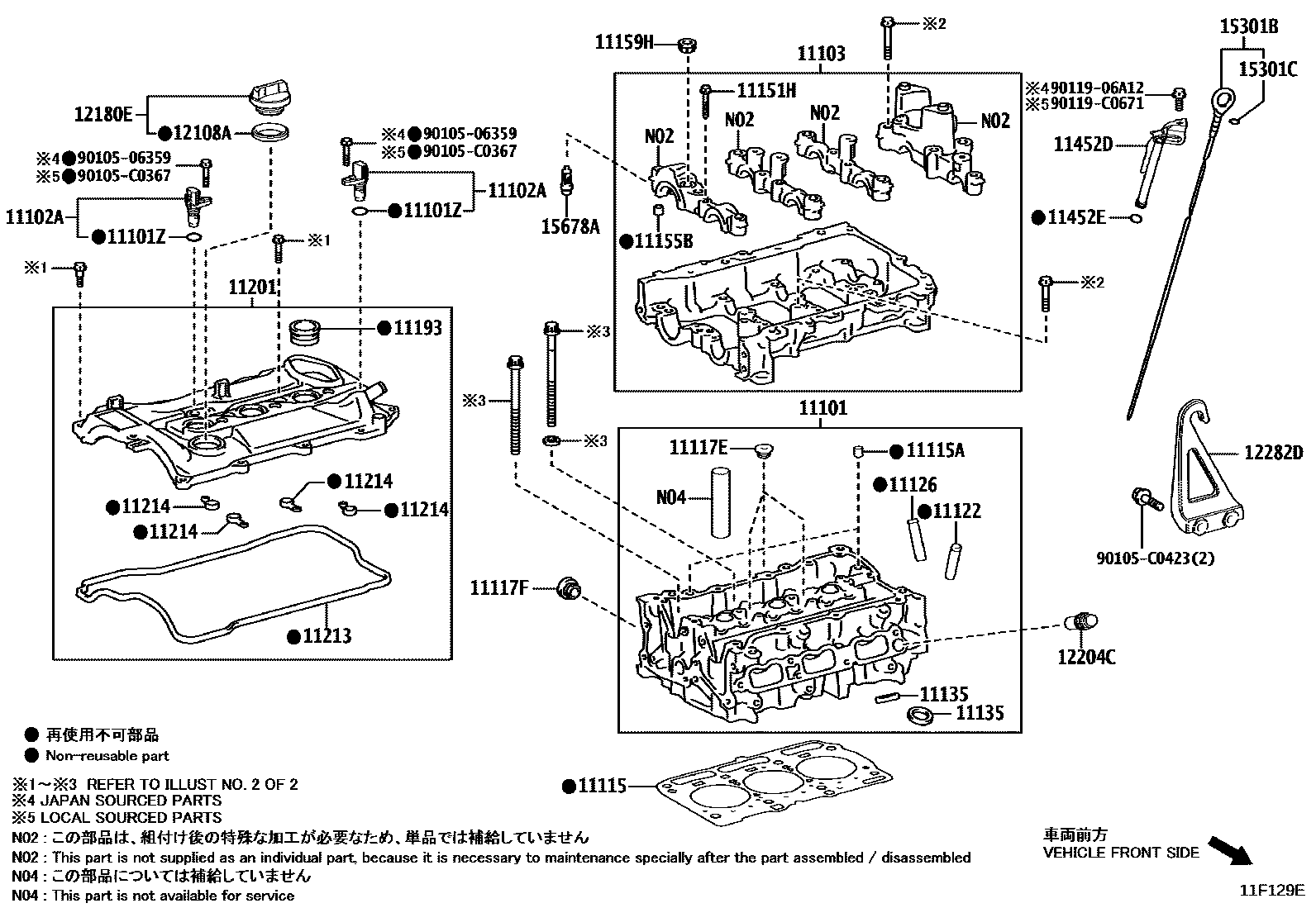

CYLINDER HEAD
11101HEAD SUB-ASSY, CYLINDER
*497,*615
(L)
*616
*474
(J)
11101ZO RING, CAM POSITION SENSOR
*617,*616
*474
*497,*615
11102ASENSOR, CAMSHAFT POSITION
*474
*617,*616
(J)
*497,*615
(L)
11103HOUSING SUB-ASSY, CAMSHAFT
*497,*615
*616
*474
*617
11115APIN, RING
*616
*617
11117EPLUG, W/HEAD STRAIGHT SCREW, NO.1
*616
*474
*497,*615
*617
11117FPLUG, W/HEAD STRAIGHT SCREW, NO.2
*497,*615
*474
*617,*616
11122BUSH, INTAKE VALVE GUIDE
STD
STD,*617,*616
STD,(L)
STD,*497,*615
STD,*474
O/S 0.05,(J)
O/S 0.05,(L)
O/S 0.05
O/S 0.05,*617,*616
O/S 0.05,*497,*615
O/S 0.05,*474
11126BUSH, EXHAUST VALVE GUIDE
STD,*497,*615
STD,*617
STD,*474
STD
O/S 0.05,*497,*615
O/S 0.05,*474
O/S 0.05
O/S 0.05,*617
STD,(L)
O/S 0.05,(L)
11135SEAT, EXHAUST VALVE
STD
STD,*497,*615
STD
STD,*616
STD,*474
STD,*617
STD
O/S 0.03,MADE IN JAPAN
O/S 0.03
O/S 0.03,MADE IN CHINA
O/S 0.03,*497,*615
O/S 0.03,*474
11151HBOLT(FOR CAMSHAFT BEARING CAP TO HOUSING)
(J),*617,*616
(J)
(L)
(L),*617
11155BPIN, RING
*617
*616
(J),*617
(J)
(L),*617
(L)
11159HGASKET, CAMSHAFT BEARING CAP OIL HOLE
*616
*617
*474
*497,*615
11193GASKET, SPARK PLUG TUBE
*616
*617
11201COVER SUB-ASSY, CYLINDER HEAD
*616
*617
*497,*615
11213GASKET, CYLINDER HEAD COVER
*497,*615
*617,*616
*474
11214GASKET, CYLINDER HEAD COVER, NO.2
*617,*616
11452DGUIDE, OIL LEVEL GAGE
*616
*617
11452ERING, O(FOR OIL LEVEL GAGE GUIDE)
(L)
(L),*617
*616
*617
(J),*617
(J)
12108CAP SUB-ASSY, OIL FILLER
12108AGASKET(FOR OIL FILLER CAP)
*474
*497,*615
*617,*616
12180ECAP ASSY, OIL FILLER
*497,*615
*617
*474
*616
12204CVALVE SUB-ASSY, VENTILATION
*616
*617
12282DHANGER, ENGINE, NO.2
*497,*615
*616
*474
*617
15301BGAGE SUB-ASSY, OIL LEVEL
*616
*617
15301CRING, O(FOR OIL LEVEL GAGE)
(L)
(L),*617
(J),*617,*616
(J)
15678AFILTER, OIL CONTROL VALVE
*497,*615
*474
*617,*616
9010506359
90105C0367
main90105-C0367
90105C0423
main90105-C0423
9011906A12
90119C0671
main90119-C0671
33 parts on this diagram · 6 diagrams in section
