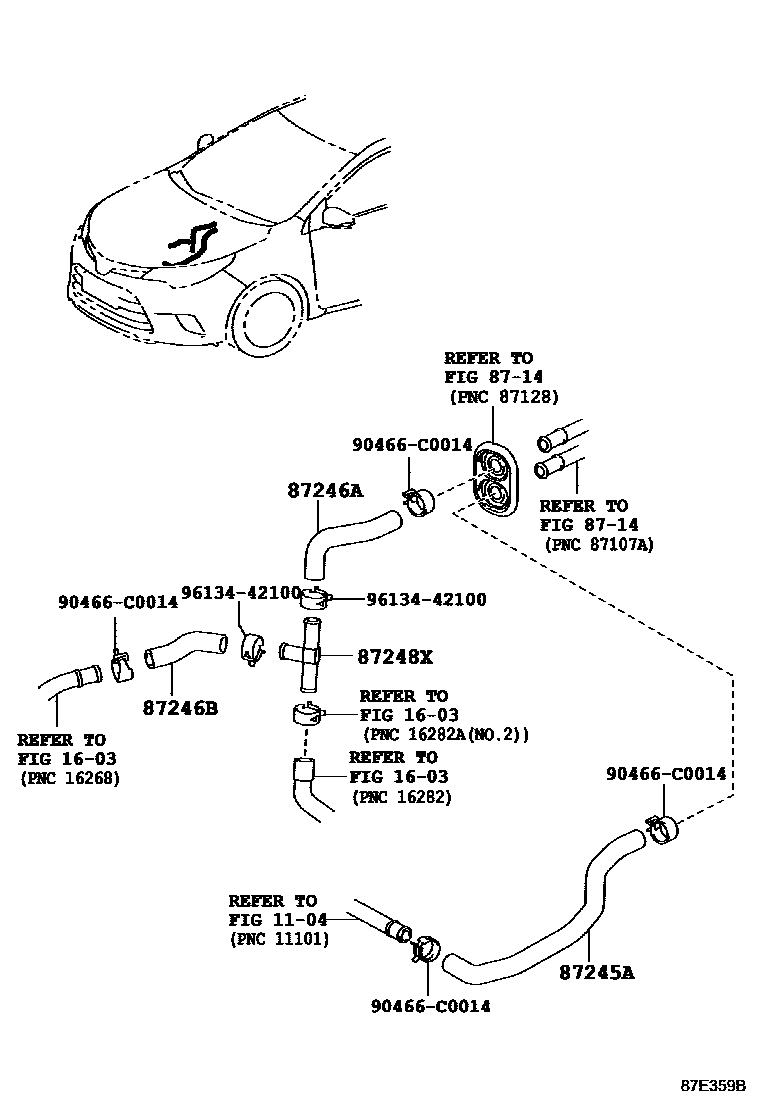

HEATING & AIR CONDITIONING - WATER PIPING

0001 1 0002 1 0003 1 0004 1 0005 1

1104

1603

8714

87245AHOSE, HEATER WATER, INLET A

main87245-02P30iZWE182201512-201706

main87245-02Q20iNRE181201612-201706

main87245-0F190iZRE182201408-201706

87246AHOSE, HEATER WATER, OUTLET A

main87245-02P40iZWE182201512-201706

main87245-02Q70iNRE181..6F201612-201706

main87245-02Q80iNRE181..CVT201612-201706

main87245-0F200iZRE18#..MTM201408-201611

main87245-0F240iZRE181..CVT201408-201706

87246BHOSE, HEATER WATER, OUTLET B

main87245-0F250iZRE181..CVT201408-201706

87248XPIPE, HEATER WATER

main87248-12300iZRE181..CVT201408-201706

90466C0014

main90466-C0014

9613442100

main96134-42100

9 parts on this diagram · 5 diagrams in section
