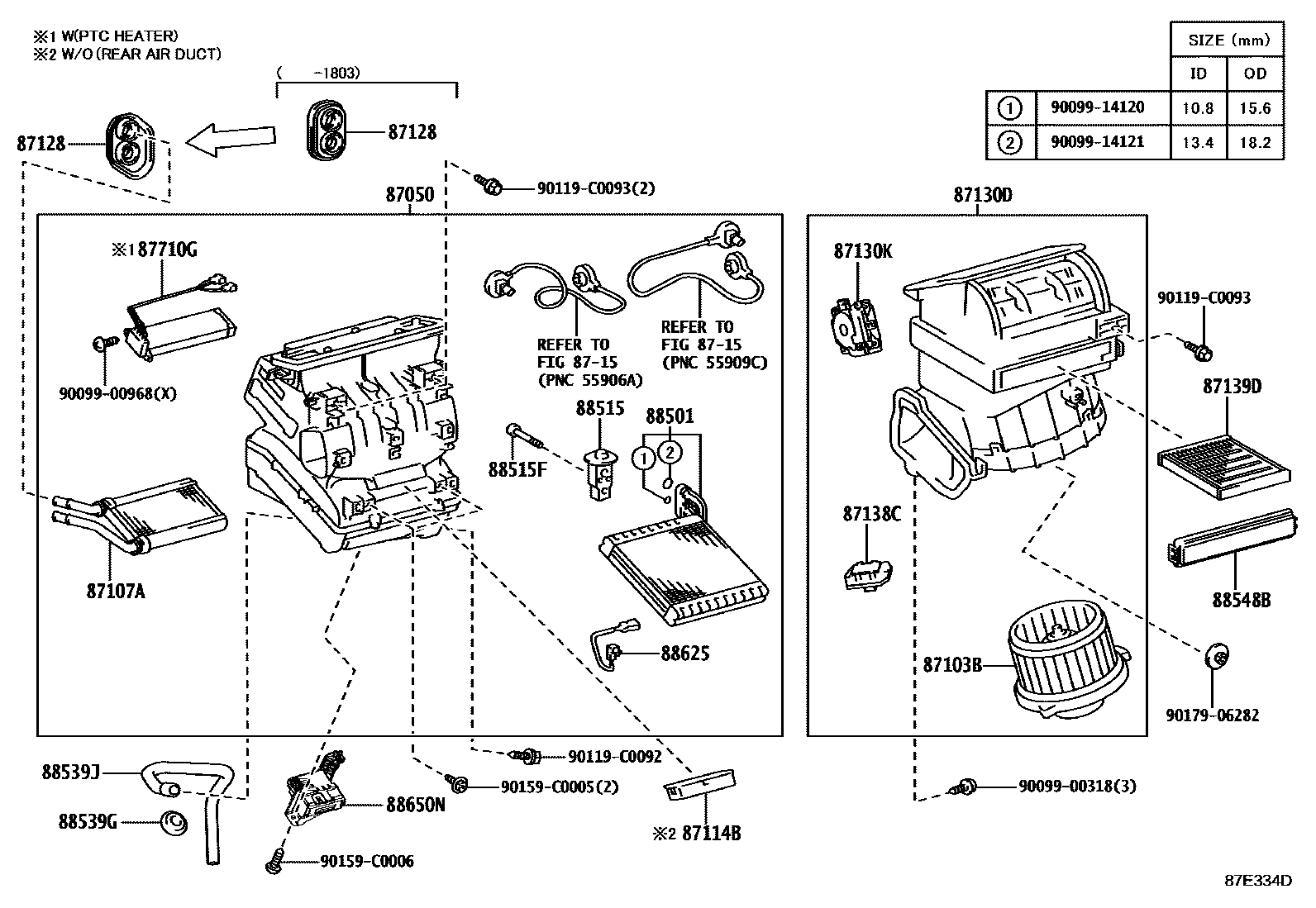

HEATING & AIR CONDITIONING - COOLER UNIT
87050RADIATOR ASSY, AIR CONDITIONER
COMBI SEAT(DRIVER POWER SEAT)
LEATHER SEAT&WITH(AUTO AIR CONDITIONER)
COMBI SEAT(DRIVER POWER SEAT)&COLD AREA SPEC
COLD AREA SPEC
LEATHER SEAT&WITH(AUTO AIR CONDITIONER)&COLD AREA SPEC
COLD AREA SPEC
87103BMOTOR SUB-ASSY, BLOWER W/FAN
COMBI SEAT(DRIVER POWER SEAT)
LEATHER SEAT&WITH(AUTO AIR CONDITIONER)
LEATHER SEAT&WITH(AUTO AIR CONDITIONER)&COLD AREA SPEC
COMBI SEAT(DRIVER POWER SEAT)&COLD AREA SPEC
87107AUNIT SUB-ASSY, HEATER RADIATOR
87114BCOVER, HEATER
COLD AREA SPEC
87128GROMMET, HEATER
87130DBLOWER ASSY
LEATHER SEAT&WITH(AUTO AIR CONDITIONER)
COMBI SEAT(DRIVER POWER SEAT)
LEATHER SEAT&WITH(AUTO AIR CONDITIONER)&COLD AREA SPEC
COMBI SEAT(DRIVER POWER SEAT)&COLD AREA SPEC
COLD AREA SPEC
COLD AREA SPEC
87130KDAMPER SERVO SUB-ASSY, BLOWER, NO.1
COMBI SEAT(DRIVER POWER SEAT)
COMBI SEAT(DRIVER POWER SEAT)&COLD AREA SPEC
LEATHER SEAT&WITH(AUTO AIR CONDITIONER)
LEATHER SEAT&WITH(AUTO AIR CONDITIONER)&COLD AREA SPEC
87138CRESISTOR, BLOWER
87139DELEMENT, AIR REFINER
MICRO DUST FILTER
*DPF
8715
87710GQUICK HEATER ASSY
LEATHER SEAT&WITH(AUTO AIR CONDITIONER)&COLD AREA SPEC
COMBI SEAT(DRIVER POWER SEAT)&COLD AREA SPEC
COLD AREA SPEC
88501EVAPORATOR SUB-ASSY, COOLER, NO.1
88515FBOLT(FOR COOLER EXPANSION VALVE)
88539GGROMMET (FOR COOLER UNIT DRAIN HOSE)
88539JHOSE, DRAIN COOLER
88548BCASE, AIR FILTER
88625THERMISTOR, COOLER, NO.1
88650NAMPLIFIER ASSY, AIR CONDITIONER
COMBI SEAT(DRIVER POWER SEAT)&COLD AREA SPEC
COMBI SEAT(DRIVER POWER SEAT)
LEATHER SEAT&WITH(AUTO AIR CONDITIONER)
LEATHER SEAT&WITH(AUTO AIR CONDITIONER)&COLD AREA SPEC
COLD AREA SPEC
9009900318
main90099-00318
9009900968
main90099-00968
9009914120
main90099-14120
9009914121
main90099-14121
90119C0092
main90119-C0092
90119C0093
main90119-C0093
90159C0005
main90159-C0005
90159C0006
main90159-C0006
9017906282
main90179-06282
28 parts on this diagram · 2 diagrams in section
