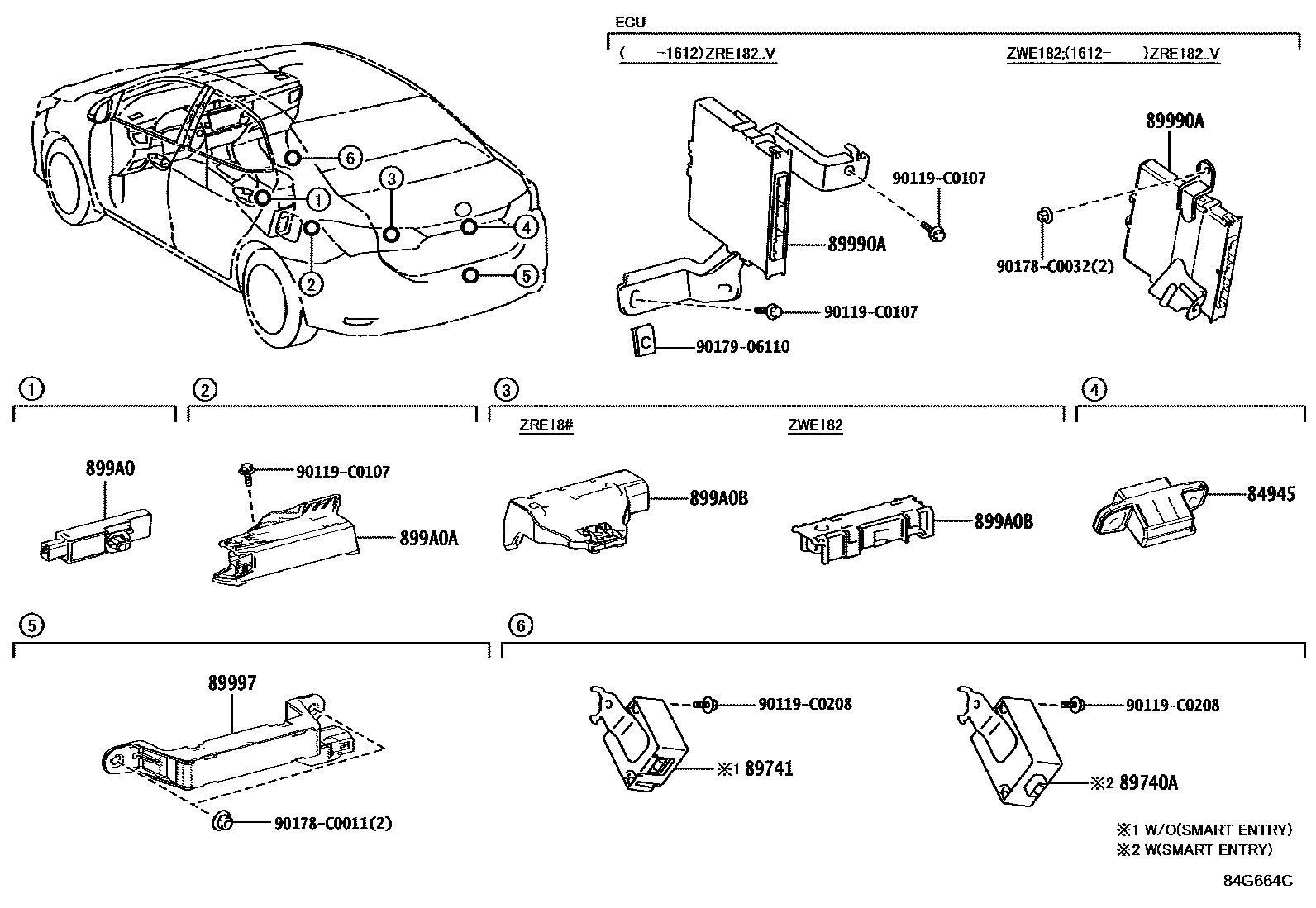

WIRELESS DOOR LOCK

0001 1 0002 1

84945SWITCH, LUGGAGE ELECTRICAL KEY

main84945-02030iZRE182,ZWE182201408-201706

89740ARECEIVER ASSY, SMART DOOR CONTROL

main89740-02190iZWE182;ZRE182..V201408-201706

89741RECEIVER, DOOR CONTROL

main89741-02200iZRE181;ZRE182..6F201408-201706

89990ACOMPUTER ASSY, SMART KEY

main89990-02290iZRE182..V201408-201612

main89990-02340iZWE182..G,V201512-201706

main89990-02350iZWE182..E201512-201706

main89990-02440iZRE182..V201612-201706

89997ANTENNA, ELECTRICAL KEY

main89997-30070iZWE182;ZRE182..V¥4,090201408-201706

899A0ANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.1

main899A0-0F010iZRE182,ZWE182201408-201706

899A0AANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.2

main899A0-02150iZWE182;ZRE182..V201408-201706

899A0BANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.3

main899A0-02160iZRE182..V201408-201706

main899A0-0F020iZWE182201512-201706

90119C0107

main90119-C0107

90119C0208

main90119-C0208

90178C0011

main90178-C0011

90178C0032

main90178-C0032

9017906110

main90179-06110¥90

13 parts on this diagram · 2 diagrams in section
