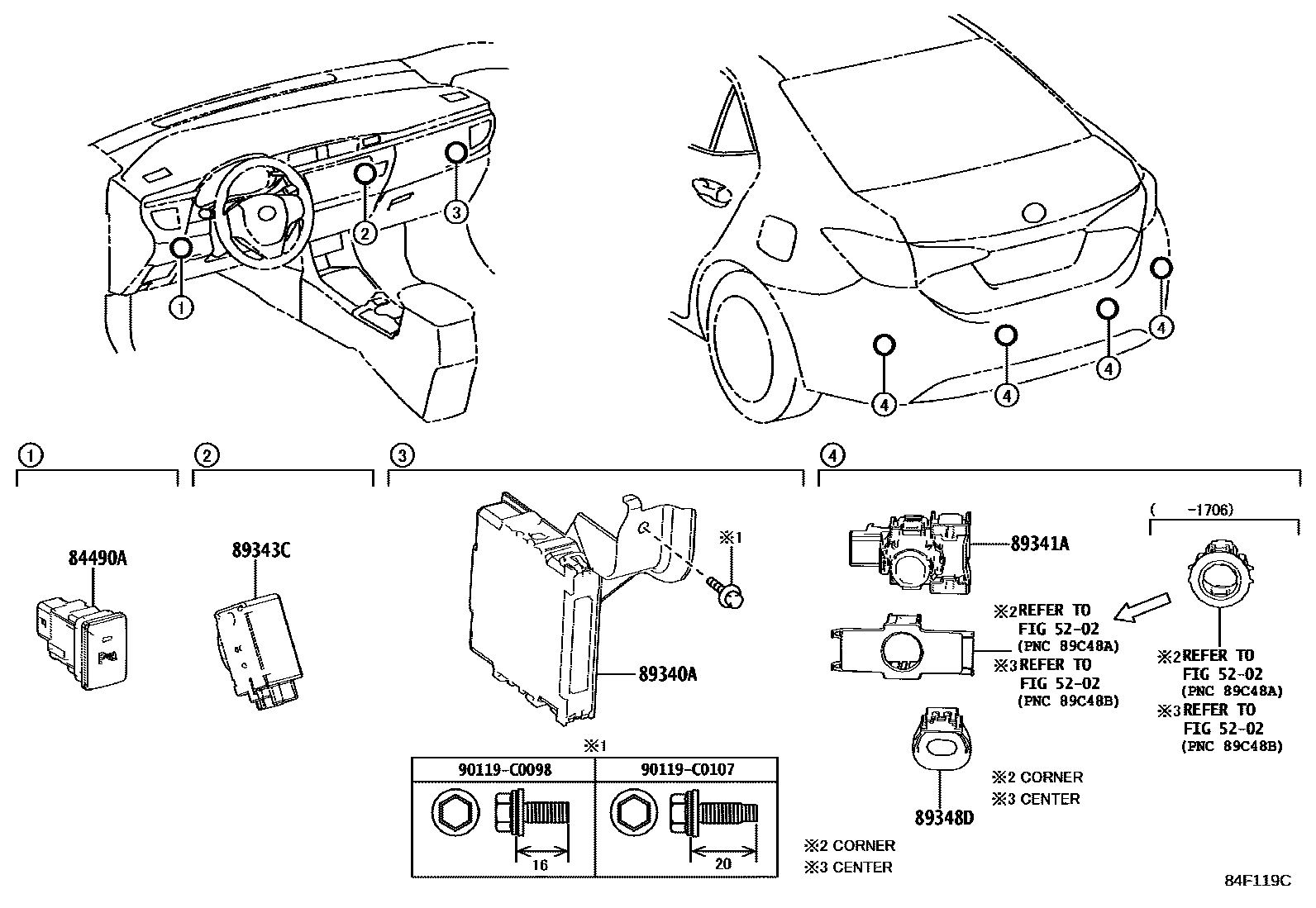

CLEARANCE & BACK SONAR

5202

84490ASWITCH ASSY, BACK SONAR OR CLEARANCE SONAR

main84490-02080iZRE181..E201408-201502

sub84490-02081

main84490-02081iNRE181,ZRE181..E201503-201905

89340ACOMPUTER ASSY, CLEARANCE WARNING

main89340-02080iZWE182..G201706-201905

AUDIO-AVN(ACCESSORY) & 6SPEAKER

main89340-02080iZRE182,ZWE182..V201706-201905

LEATHER SEAT & 16INCH ALUMINUM WHEEL

main89340-02080iZRE182,ZWE182..V201706-201905

AUDIO-*DA(ACCESSORY) & *BT & 4SPEAKER

main89340-02080iZRE182,ZWE182..V201706-201905

AUDIO-*DA(ACCESSORY) & *BT & 6SPEAKER

main89340-02080iZRE182,ZWE182..V201706-201905

AUDIO-AVN(ACCESSORY) & 4SPEAKER

main89340-02080iZRE181..E201408-201706

89341ASENSOR, ULTRASONIC, NO.1

main89341-02030-A0iNRE181,ZRE181..E201408-201706

WHITE PEARL CS.,070

main89341-02030-B0iNRE181,ZRE181..E201408-201706

SILVER ME.,1D4

main89341-02030-B1iZRE181..E201408-201611

GRAY ME.,1G3

main89341-02030-C0iNRE181,ZRE181..E201408-201706

ATTITUDE BLACK MC.,218

main89341-02030-D0iNRE181,ZRE181..E201408-201706

RED M.M.,3R3

main89341-02030-E0iNRE181,ZRE181..E201408-201706

ORANGE ME.,4R8

main89341-02030-E2iNRE181..E201612-201706

DK. BROWN M.M.,4U3

main89341-02030-J0iNRE181,ZRE181..E201408-201706

BLUE ME.,8T7

main89341-02050-A0iZWE182..G;NRE181,ZRE182..E,G201706-201905

WHITE PEARL CS.,070

main89341-02050-A0iZWE182..G;NRE181,ZRE182..E,G201706-201905

LEATHER SEAT & 16INCH ALUMINUM WHEEL,WHITE PEARL CS.,070

main89341-02050-A0iZWE182..G;NRE181,ZRE182..E,G201706-201905

AUDIO-*DA(ACCESSORY) & *BT & 4SPEAKER,WHITE PEARL CS.,070

main89341-02050-A0iZWE182..G;NRE181,ZRE182..E,G201706-201905

AUDIO-*DA(ACCESSORY) & *BT & 6SPEAKER,WHITE PEARL CS.,070

main89341-02050-A0iZWE182..G;NRE181,ZRE182..E,G201706-201905

AUDIO-AVN(ACCESSORY) & 4SPEAKER,WHITE PEARL CS.,070

main89341-02050-A0iZWE182..G;NRE181,ZRE182..E,G201706-201905

AUDIO-AVN(ACCESSORY) & 6SPEAKER,WHITE PEARL CS.,070

main89341-02050-B0iNRE181,ZRE182..CVT..(E,G)201706-201905

AUDIO-AVN(ACCESSORY) & 6SPEAKER,SILVER ME.,1D4

main89341-02050-B0iZWE182..G,V;NRE181,ZRE182..E,G,V201706-201905

SILVER ME.,1D4

main89341-02050-B0iZWE182..G,V;NRE181,ZRE182..E,G,V201706-201905

LEATHER SEAT & 16INCH ALUMINUM WHEEL,SILVER ME.,1D4

main89341-02050-B0iZWE182..G,V;NRE181,ZRE182..E,G,V201706-201905

AUDIO-*DA(ACCESSORY) & *BT & 4SPEAKER,SILVER ME.,1D4

main89341-02050-B0iZWE182..G,V;NRE181,ZRE182..E,G,V201706-201905

AUDIO-*DA(ACCESSORY) & *BT & 6SPEAKER,SILVER ME.,1D4

main89341-02050-B0iZWE182..G,V;NRE181,ZRE182..E,G,V201706-201905

AUDIO-AVN(ACCESSORY) & 4SPEAKER,SILVER ME.,1D4

main89341-02050-C0iZWE182..G,V;NRE181,ZRE182..E,G,V201706-201905

ATTITUDE BLACK MC.,218

main89341-02050-C0iZWE182..G,V;NRE181,ZRE182..E,G,V201706-201905

LEATHER SEAT & 16INCH ALUMINUM WHEEL,ATTITUDE BLACK MC.,218

main89341-02050-C0iZWE182..G,V;NRE181,ZRE182..E,G,V201706-201905

AUDIO-*DA(ACCESSORY) & *BT & 4SPEAKER,ATTITUDE BLACK MC.,218

main89341-02050-C0iZWE182..G,V;NRE181,ZRE182..E,G,V201706-201905

AUDIO-*DA(ACCESSORY) & *BT & 6SPEAKER,ATTITUDE BLACK MC.,218

main89341-02050-C0iZWE182..G,V;NRE181,ZRE182..E,G,V201706-201905

AUDIO-AVN(ACCESSORY) & 4SPEAKER,ATTITUDE BLACK MC.,218

main89341-02050-C0iZWE182..G,V;NRE181,ZRE182..E,G,V201706-201905

AUDIO-AVN(ACCESSORY) & 6SPEAKER,ATTITUDE BLACK MC.,218

main89341-02050-D0iZWE182..G,V;NRE181,ZRE182..E,G,V201706-201905

RED M.M.,3R3

main89341-02050-D0iZWE182..G,V;NRE181,ZRE182..E,G,V201706-201905

LEATHER SEAT & 16INCH ALUMINUM WHEEL,RED M.M.,3R3

main89341-02050-D0iZWE182..G,V;NRE181,ZRE182..E,G,V201706-201905

AUDIO-*DA(ACCESSORY) & *BT & 4SPEAKER,RED M.M.,3R3

main89341-02050-D0iZWE182..G,V;NRE181,ZRE182..E,G,V201706-201905

AUDIO-*DA(ACCESSORY) & *BT & 6SPEAKER,RED M.M.,3R3

main89341-02050-D0iZWE182..G,V;NRE181,ZRE182..E,G,V201706-201905

AUDIO-AVN(ACCESSORY) & 4SPEAKER,RED M.M.,3R3

main89341-02050-D0iZWE182..G,V;NRE181,ZRE182..E,G,V201706-201905

AUDIO-AVN(ACCESSORY) & 6SPEAKER,RED M.M.,3R3

main89341-02050-E0iZRE182,ZWE182..V201706-201905

AUDIO-AVN(ACCESSORY) & 4SPEAKER,ORANGE ME.,4R8

main89341-02050-E0iZWE182..G,V;NRE181,ZRE182..E,G,V201706-201905

ORANGE ME.,4R8

main89341-02050-E0iZWE182..G,V;NRE181,ZRE182..E,G,V201706-201905

LEATHER SEAT & 16INCH ALUMINUM WHEEL,ORANGE ME.,4R8

main89341-02050-E0iZWE182..G,V;NRE181,ZRE182..E,G,V201706-201905

AUDIO-*DA(ACCESSORY) & *BT & 4SPEAKER,ORANGE ME.,4R8

main89341-02050-E0iZWE182..G,V;NRE181,ZRE182..E,G,V201706-201905

AUDIO-*DA(ACCESSORY) & *BT & 6SPEAKER,ORANGE ME.,4R8

main89341-02050-E0iZWE182..G,V;NRE181,ZRE182..E,G,V201706-201905

AUDIO-AVN(ACCESSORY) & 6SPEAKER,ORANGE ME.,4R8

main89341-02050-E1iZWE182..G,V;NRE181,ZRE182..E,G,V201706-201905

LEATHER SEAT & 16INCH ALUMINUM WHEEL,DK. BROWN M.M.,4U3

main89341-02050-E1iZWE182..G,V;NRE181,ZRE182..E,G,V201706-201905

AUDIO-*DA(ACCESSORY) & *BT & 4SPEAKER,DK. BROWN M.M.,4U3

main89341-02050-E1iZWE182..G,V;NRE181,ZRE182..E,G,V201706-201905

AUDIO-*DA(ACCESSORY) & *BT & 6SPEAKER,DK. BROWN M.M.,4U3

main89341-02050-E1iZWE182..G,V;NRE181,ZRE182..E,G,V201706-201905

AUDIO-AVN(ACCESSORY) & 4SPEAKER,DK. BROWN M.M.,4U3

main89341-02050-E1iZWE182..G,V;NRE181,ZRE182..E,G,V201706-201905

AUDIO-AVN(ACCESSORY) & 6SPEAKER,DK. BROWN M.M.,4U3

main89341-02050-E1iNRE181,ZRE182..CVT..(E,G)201706-201905

DK. BROWN M.M.,4U3

main89341-02050-J1iZWE182..G,V;NRE181,ZRE182..E,G,V201706-201905

BLUE ME.,8X7

main89341-02050-J1iZWE182..G,V;NRE181,ZRE182..E,G,V201706-201905

LEATHER SEAT & 16INCH ALUMINUM WHEEL,BLUE ME.,8X7

main89341-02050-J1iZWE182..G,V;NRE181,ZRE182..E,G,V201706-201905

AUDIO-*DA(ACCESSORY) & *BT & 4SPEAKER,BLUE ME.,8X7

main89341-02050-J1iZWE182..G,V;NRE181,ZRE182..E,G,V201706-201905

AUDIO-*DA(ACCESSORY) & *BT & 6SPEAKER,BLUE ME.,8X7

main89341-02050-J1iZWE182..G,V;NRE181,ZRE182..E,G,V201706-201905

AUDIO-AVN(ACCESSORY) & 4SPEAKER,BLUE ME.,8X7

main89341-02050-J1iZWE182..G,V;NRE181,ZRE182..E,G,V201706-201905

AUDIO-AVN(ACCESSORY) & 6SPEAKER,BLUE ME.,8X7

main89341-02050-K0iZWE182..G201706-201905

AUDIO-AVN(ACCESSORY) & 4SPEAKER,DEEP AMETHYST M.M.,9AH

main89341-02050-K0iZWE182..G,V201706-201905

DEEP AMETHYST M.M.,9AH

main89341-02050-K0iZWE182..G,V201706-201905

AUDIO-*DA(ACCESSORY) & *BT & 4SPEAKER,DEEP AMETHYST M.M.,9AH

main89341-02050-K0iZWE182..G,V201706-201905

AUDIO-*DA(ACCESSORY) & *BT & 6SPEAKER,DEEP AMETHYST M.M.,9AH

main89341-02050-K0iZWE182..G,V201706-201905

AUDIO-AVN(ACCESSORY) & 6SPEAKER,DEEP AMETHYST M.M.,9AH

89343CBUZZER, CLEARANCE WARNING, NO.1

main89343-02010iZWE182..G,V;NRE181,ZRE182..E,G,V201706-201804

LEATHER SEAT & 16INCH ALUMINUM WHEEL

main89343-02010iZWE182..G,V;NRE181,ZRE182..E,G,V201706-201804

AUDIO-*DA(ACCESSORY) & *BT & 4SPEAKER

main89343-02010iZWE182..G,V;NRE181,ZRE182..E,G,V201706-201804

AUDIO-*DA(ACCESSORY) & *BT & 6SPEAKER

main89343-02010iZWE182..G,V;NRE181,ZRE182..E,G,V201706-201804

AUDIO-AVN(ACCESSORY) & 4SPEAKER

main89343-02010iZWE182..G,V;NRE181,ZRE182..E,G,V201706-201804

AUDIO-AVN(ACCESSORY) & 6SPEAKER

main89343-02010iZRE181..E201408-201905

main89343-48010iNRE181,ZRE182..CVT..(E,G)201805-201808

AUDIO-AVN(ACCESSORY) & 4SPEAKER

main89343-48010iZWE182..G,V;NRE181,ZRE182..E,G,V201805-201808

LEATHER SEAT & 16INCH ALUMINUM WHEEL

main89343-48010iZWE182..G,V;NRE181,ZRE182..E,G,V201805-201808

AUDIO-*DA(ACCESSORY) & *BT & 4SPEAKER

main89343-48010iZWE182..G,V;NRE181,ZRE182..E,G,V201805-201808

AUDIO-*DA(ACCESSORY) & *BT & 6SPEAKER

main89343-48010iZWE182..G,V;NRE181,ZRE182..E,G,V201805-201808

AUDIO-AVN(ACCESSORY) & 6SPEAKER

89348DCLIP, ULTRASONIC SENSOR

main89348-02110iNRE181,ZRE181..E201408-201706

main89348-02110iZWE182..G,V;NRE181,ZRE182..E,G,V201706-201905

LEATHER SEAT & 16INCH ALUMINUM WHEEL

main89348-02110iZWE182..G,V;NRE181,ZRE182..E,G,V201706-201905

AUDIO-*DA(ACCESSORY) & *BT & 4SPEAKER

main89348-02110iZWE182..G,V;NRE181,ZRE182..E,G,V201706-201905

AUDIO-*DA(ACCESSORY) & *BT & 6SPEAKER

main89348-02110iZWE182..G,V;NRE181,ZRE182..E,G,V201706-201905

AUDIO-AVN(ACCESSORY) & 4SPEAKER

main89348-02110iZWE182..G,V;NRE181,ZRE182..E,G,V201706-201905

AUDIO-AVN(ACCESSORY) & 6SPEAKER

90119C0098

main90119-C0098

90119C0107

main90119-C0107

8 parts on this diagram · 1 diagram in section
