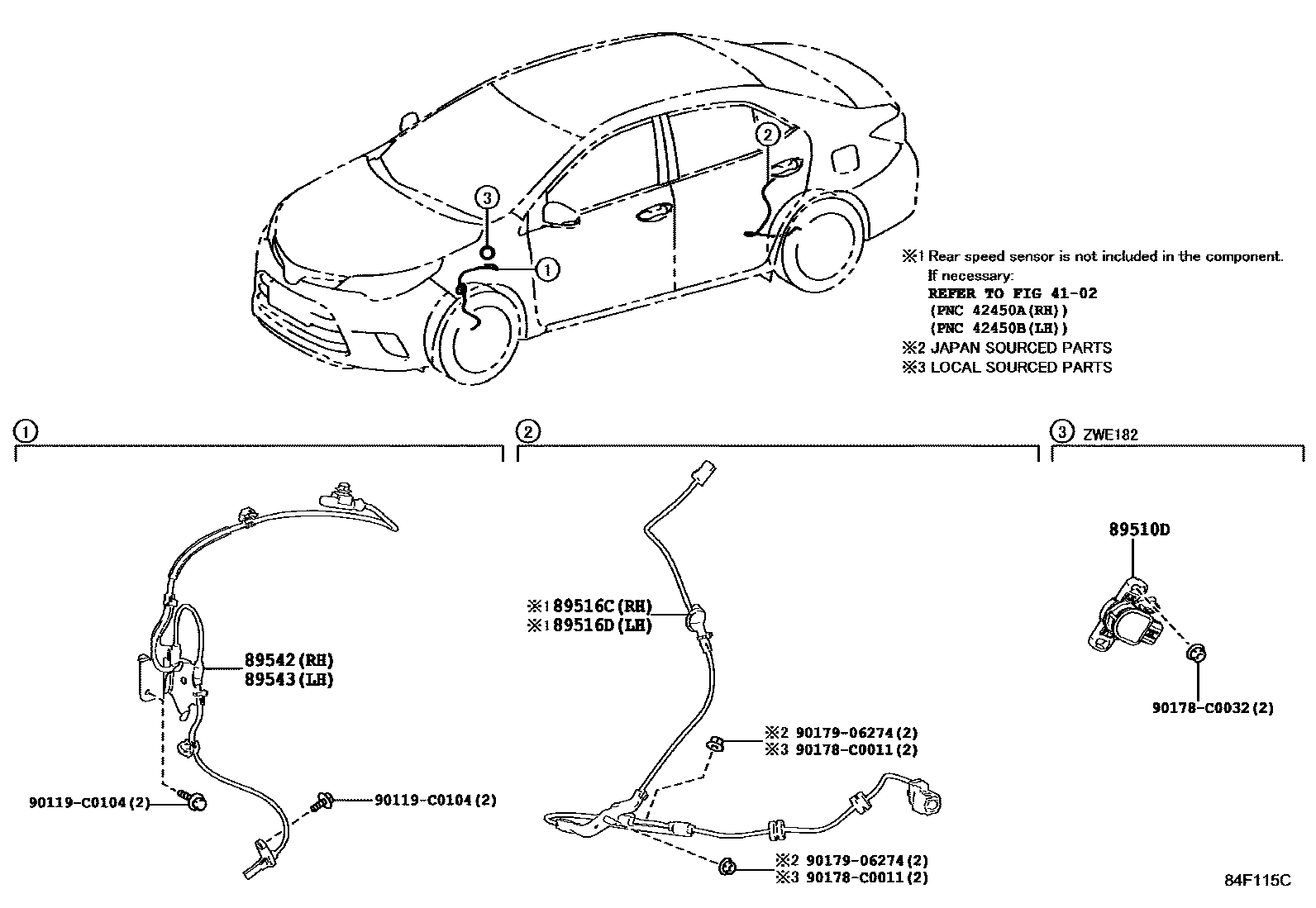

ABS & VSC

4102

89510DSENSOR ASSY, BRAKE PEDAL STROKE

main89510-47050iZWE182201706

89516CWIRE, SKID CONTROL SENSOR, RH

main89516-02250iNRE181,ZRE18#,ZWE182201408-201706

89516DWIRE, SKID CONTROL SENSOR, LH

main89516-02260iZRE181;ZRE182..6F201408-201611

89542SENSOR, SPEED, FRONT RH

main89542-02070iZRE182..CVT;NRE181,ZWE182201408-201706

BOSCH

main89542-02080iZRE182..CVT;NRE181,ZWE182201408-201706

DENSO

89543SENSOR, SPEED, FRONT LH

main89543-02070iZRE181;ZRE182..6F201408-201611

BOSCH

main89543-02080iZRE181;ZRE182..6F201408-201611

DENSO

90119C0104

main90119-C0104

90178C0011

main90178-C0011

90178C0032

main90178-C0032

9017906274

main90179-06274

10 parts on this diagram · 1 diagram in section
