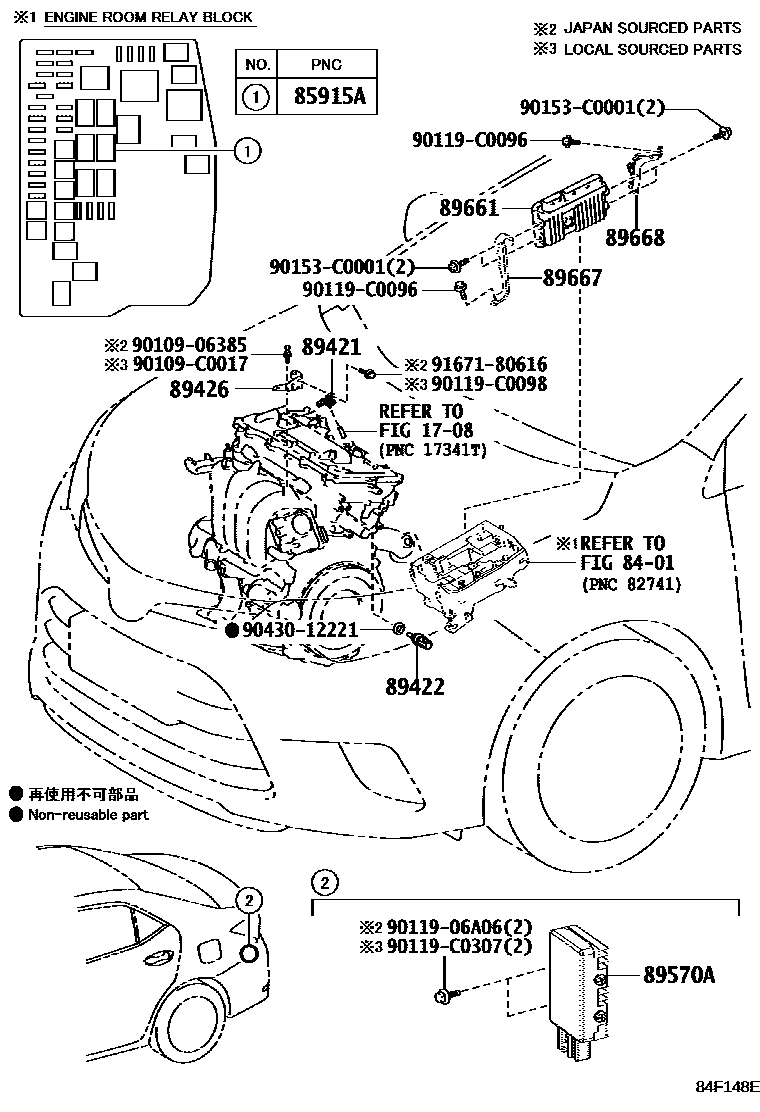

ELECTRONIC FUEL INJECTION SYSTEM
1708
8401
85915ARELAY, MAIN
(J)
(L)
89421SENSOR ASSY, VACUUM (FOR E.F.I.)
89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)
(L)
(J)
89426BRACKET, VACUUM SENSOR
(L)
(J)
89570ACOMPUTER ASSY, FUEL PUMP CONTROL
89661COMPUTER, ENGINE CONTROL
EXHAUST EMISSION CONTROL-JING 6
EXHAUST EMISSION CONTROL-CHINA 6B
DENSO,EXHAUST EMISSION CONTROL-CHINA 6B
89667BRACKET, ENGINE CONTROL COMPUTER
EXHAUST EMISSION CONTROL-JING 6
89668BRACKET, ENGINE CONTROL COMPUTER, NO.2
EXHAUST EMISSION CONTROL-JING 6
9010906385
main90109-06385
90109C0017
main90109-C0017
9011906A06
main90119-06A06
90119C0096
main90119-C0096
90119C0098
main90119-C0098
90119C0307
main90119-C0307
90153C0001
main90153-C0001
9043012221
main90430-12221
9167180616
main91671-80616
19 parts on this diagram · 3 diagrams in section
