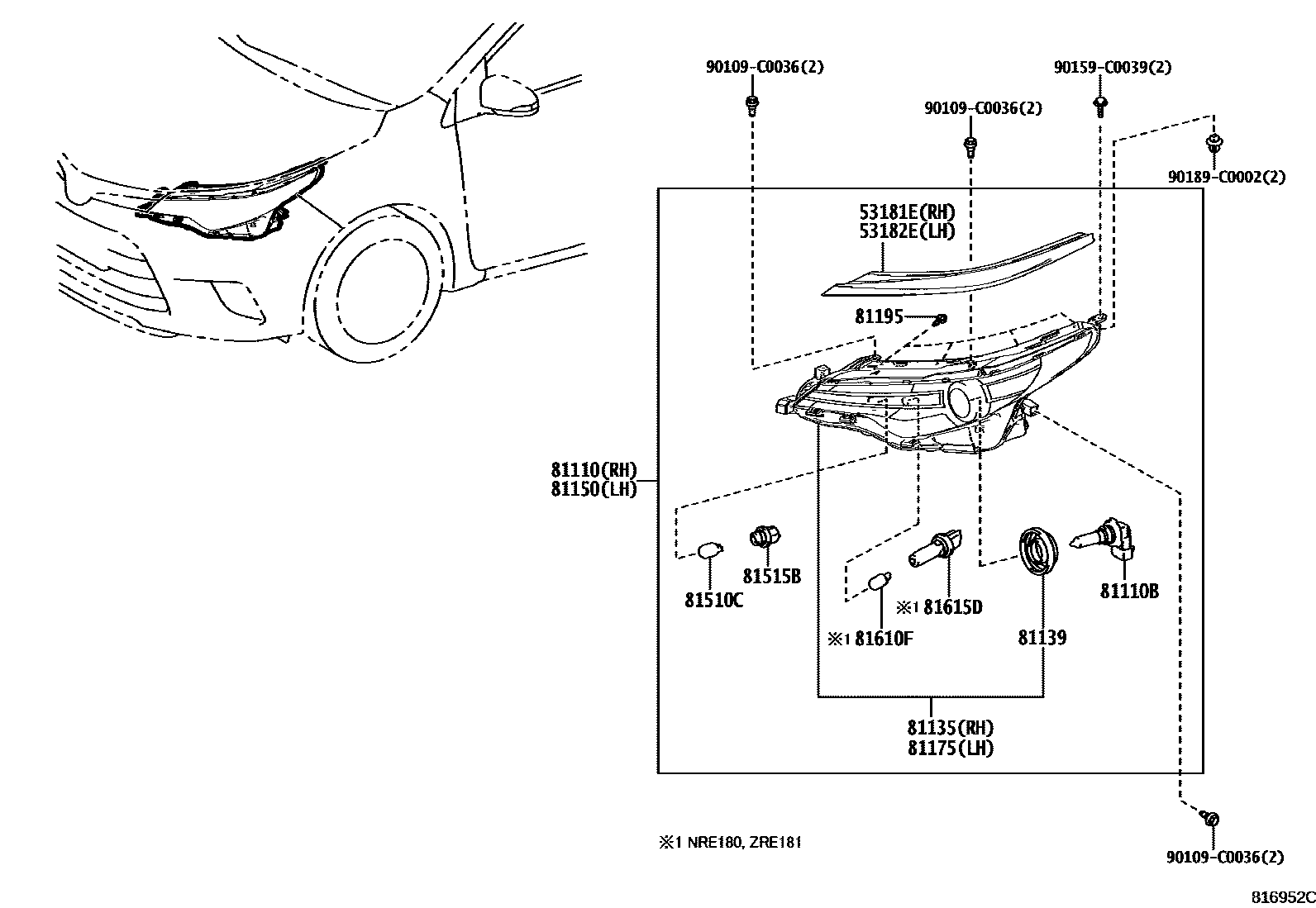

HEADLAMP

0001 1 0002 1 0003 1LED HEADLAMP 0004 1HALOGEN HEADLAMP

53181ECOVER, HEADLAMP, RH

main81116-02J20iNRE181;ZRE182..CVT201408-201706

main81116-02K20iZWE182201706

main81116-02S00iNRE181,ZRE182201706

53182ECOVER, HEADLAMP, LH

main81156-02J20iZRE181;ZRE182..6F201408-201611

main81156-02K20iZWE182201706

main81156-02S00iNRE181,ZRE182201706

81110HEADLAMP ASSY, RH

main81110-02J20iNRE181201408-201706

main81110-02J30iZRE182..CVT201408-201706

main81110-02K20iZWE182201512-201706

main81110-02S00iNRE181,ZRE182..E,G,N201706

main81110-02S10iZRE182..V201706

LEATHER SEAT & 16INCH ALUMINUM WHEEL

81110BBULB(FOR HEADLAMP, NO.1)

main90981-13091×2iNRE181;ZRE182..CVT201408-201706

12V 55W,HALOGEN

81135UNIT ASSY, HEADLAMP, RH

main81130-02J20iNRE181201408-201706

main81130-02J30iZRE182..6F201408-201611

main81130-02S00iNRE181,ZRE182..E,G,N201706

HALOGEN HEADLAMP

81139COVER, HEADLAMP SOCKET

main90075-65006×2iZRE181;ZRE182..6F201408-201611

81150HEADLAMP ASSY, LH

main81150-02J20iNRE181201408-201706

main81150-02J30iZRE182..CVT201408-201706

main81150-02K20iZWE182201512-201706

main81150-02S00iNRE181,ZRE182..E,G,N201706

main81150-02S10iZRE182..V201706

LEATHER SEAT & 16INCH ALUMINUM WHEEL

81175UNIT ASSY, HEADLAMP, LH

main81170-02J20iZRE181201408-201611

main81170-02J30iZRE182..CVT201408-201706

main81170-02S00iNRE181,ZRE182..E,G,N201706

HALOGEN HEADLAMP

81195SCREW, HEADLAMP

main90075-02063×6iNRE181,ZRE182,ZWE182201706

81510CBULB (FOR FRONT TURN SIGNAL LAMP)

main90981-15021×2iZRE181;ZRE182..6F201408-201611

12V 21W,AMBER

81515BSOCKET, FRONT TURN SIGNAL LAMP

main90075-60028×2iZRE181;ZRE182..6F201408-201611

81610FBULB(FOR CLEARANCE LAMP)

main99132-12050×2iZRE181201408-201611

12V 5W

81615DSOCKET, CLEARANCE LAMP

main90075-60077×2iZRE181201408-201611

90109C0036

main90109-C0036

90159C0039

main90159-C0039

90189C0002

main90189-C0002

16 parts on this diagram · 4 diagrams in section
