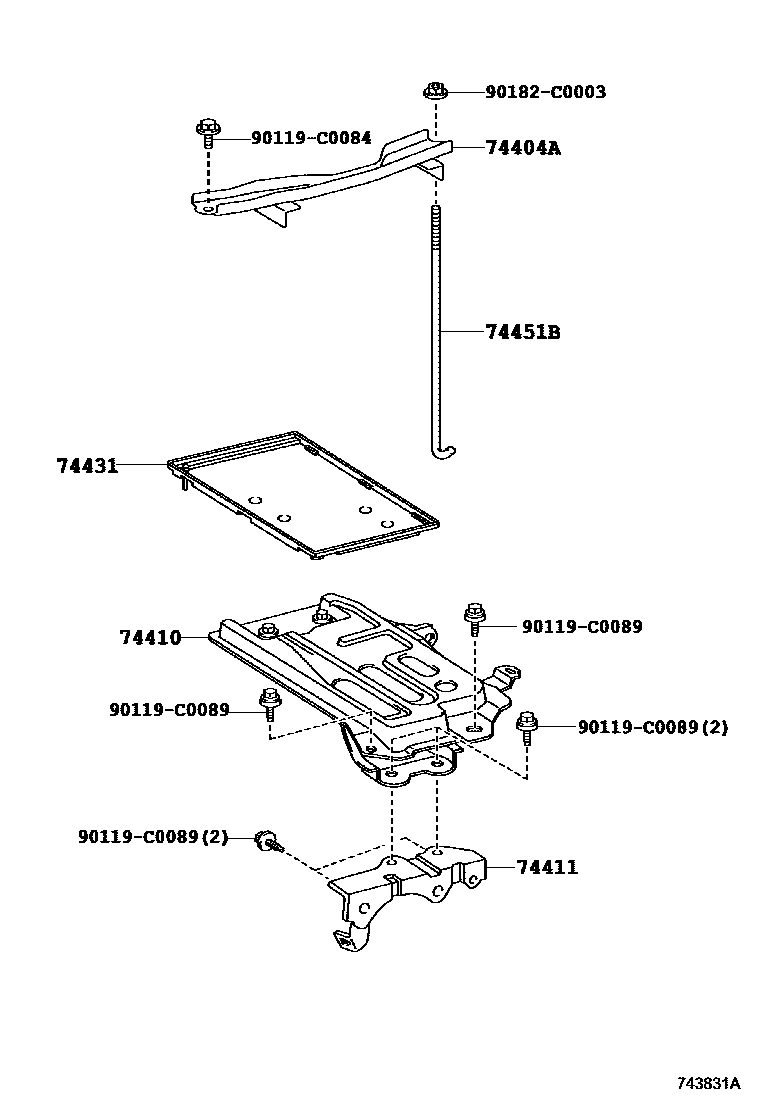

BATTERY CARRIER

0001 1 0002 1

74404ACLAMP SUB-ASSY, BATTERY

main74404-02490iNRE181;ZRE182..CVT201408-201706

74410CARRIER ASSY, BATTERY

main74410-02200iZRE181;ZRE182..6F201408-201706

74411CARRIER, BATTERY

main74401-02080iNRE181,ZRE182201408-201706

main74403-02040iZWE182201512-201706

74431TRAY, BATTERY

main74431-02240iZRE181;ZRE182..6F201408-201706

74451BBOLT, BATTERY CLAMP

main74451-0F010iZRE181;ZRE182..6F201408-201706

90119C0084

main90119-C0084

90119C0089

main90119-C0089

90182C0003

main90182-C0003

8 parts on this diagram · 2 diagrams in section
