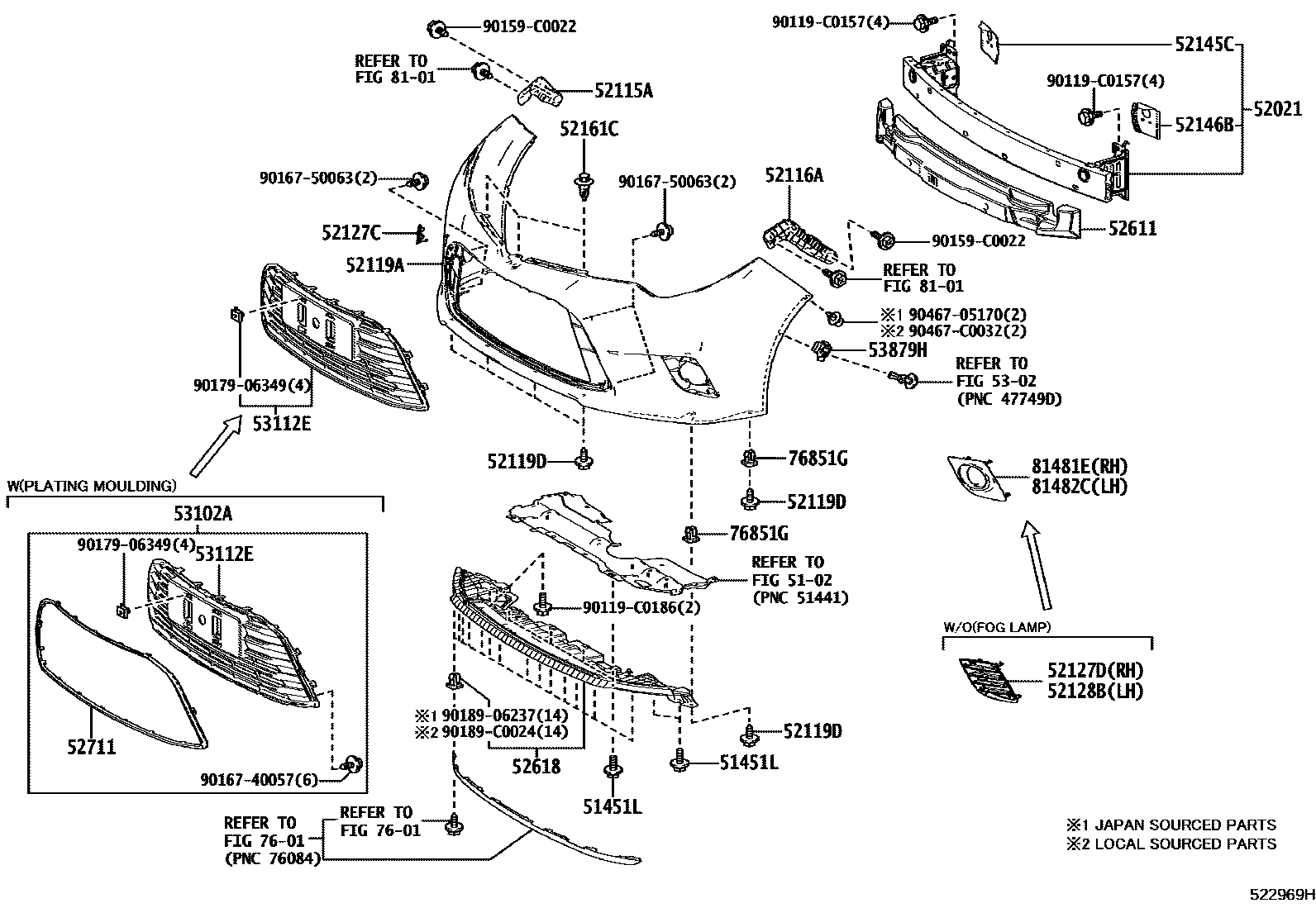

FRONT BUMPER & BUMPER STAY

0001 1 0002 1 0003 1

5102

51451LBOLT, NO.1

main90119-C0186iNRE181,ZRE182,ZWE182201706-201905

52021REINFORCEMENT SUB-ASSY, FRONT BUMPER

main52021-02290iZRE181;ZRE182..6F201408-201706

52115ASUPPORT, FRONT BUMPER SIDE, RH

main52115-02300iZRE181;ZRE182..6F201408-201706

main52115-02470iNRE181,ZRE182201706

52116ASUPPORT, FRONT BUMPER SIDE, LH

main52116-02300iZRE181;ZRE182..6F201408-201706

main52116-02450iNRE181,ZRE182201706

52119ACOVER, FRONT BUMPER

main52119-0Z951iNRE181,ZRE18#201408-201706

PAINT REQ.

main52119-0Z954iZWE182201512-201706

PAINT REQ.

sub52119-F2923

main52119-F2903iNRE181,ZRE182201706

PAINT REQ.

52119DSCREW, NO.1

main90159-60477iNRE181,ZRE182,ZWE182201706-201905

main90159-C0012iNRE181,ZRE18#,ZWE182201408-201706

52127CCOVER, FRONT BUMPER HOLE

main52127-02923iZRE181;ZRE182..6F201408-201706

main52127-02925iZWE182201512-201706

main52127-02942iNRE181,ZRE182201706

52127DCOVER, FRONT BUMPER HOLE, RH

main81481-02500iNRE181..N201408-201706

52128BCOVER, FRONT BUMPER HOLE, LH

main81482-02490iZRE181..N201408-201706

52145CBRACKET, FRONT BUMPER SIDE MOUNTING, RH

main52145-02180iNRE181,ZRE182,ZWE182201408-201706

52146BBRACKET, FRONT BUMPER SIDE MOUNTING, LH

main52146-02160iZRE181;ZRE182..6F201408-201706

52161CPIECE, FRONT BUMPER

main52161-02040iZRE18#201408-201706

(L)

main52161-02040iNRE181,ZRE182,ZWE182201706

main52161-0E030iZRE181;ZRE182..6F201610-201706

(L)

main52161-16010iZRE181;ZRE182..6F201408-201706

(J)

sub52161-0K040

52611ABSORBER, FRONT BUMPER ENERGY

main52611-02350iZRE18#201408-201509

sub52611-02370

main52611-02370iZRE182..CVT;NRE181,ZWE182201510-201706

main52611-02480iNRE181,ZRE182,ZWE182201706

52618ABSORBER, FRONT BUMPER, LOWER

main52618-02120iNRE181,ZRE18#,ZWE182201408-201706

52711MOULDING, FRONT BUMPER

main52711-02070iNRE181,ZRE182201706

PLATED

main52711-02090iZRE182..6F201408-201706

PLATED

5302

53102AGRILLE SUB-ASSY, RADIATOR, LWR

main53102-02230iNRE181,ZRE182..E,G,V201408-201706

main53102-02260iNRE181,ZRE182..E,G,V201706

main53102-02270iNRE181..N201706

53112EGRILLE, RADIATOR, LOWER NO.1

main53112-02610iZRE181..N201408-201706

NO PAINT REQ.

main53112-02620iZRE181..E201408-201706

NO PAINT REQ.

main53112-02660iZWE182201512-201706

NO PAINT REQ.

53879HRETAINER, FRONT FENDER LINER

main53879-06080iZRE182..CVT;NRE181,ZWE182201408-201706

7601

76851GGROMMET, SCREW, NO.1

main90189-06237iZRE182..6F;ZRE181,ZWE182201408-201709

main90189-06237iNRE181,ZRE182201705-201905

(J)

main90189-C0024iNRE181,ZRE182201705-201905

(L)

8101

81481ECOVER, FOG LAMP, RH

main81481-02510iNRE181..E;ZRE182..CVT201408-201706

main81481-02550iZWE182201512-201706

main81481-02830iNRE181..N201706

main81481-02840iNRE181,ZRE182..E,G,V201706

81482CCOVER, FOG LAMP, LH

main81482-02500iZRE181..E;ZRE182..6F201408-201706

main81482-02540iZWE182201512-201706

main81482-02820iNRE181..N201706

main81482-02830iNRE181,ZRE182..E,G,V201706

90119C0157

main90119-C0157

90119C0186

main90119-C0186

90159C0022

main90159-C0022

9016740057

main90167-40057

9016750063

main90167-50063

9017906349

main90179-06349

9018906237

main90189-06237

90189C0024

main90189-C0024

9046705170

main90467-05170

90467C0032

main90467-C0032

35 parts on this diagram · 3 diagrams in section
