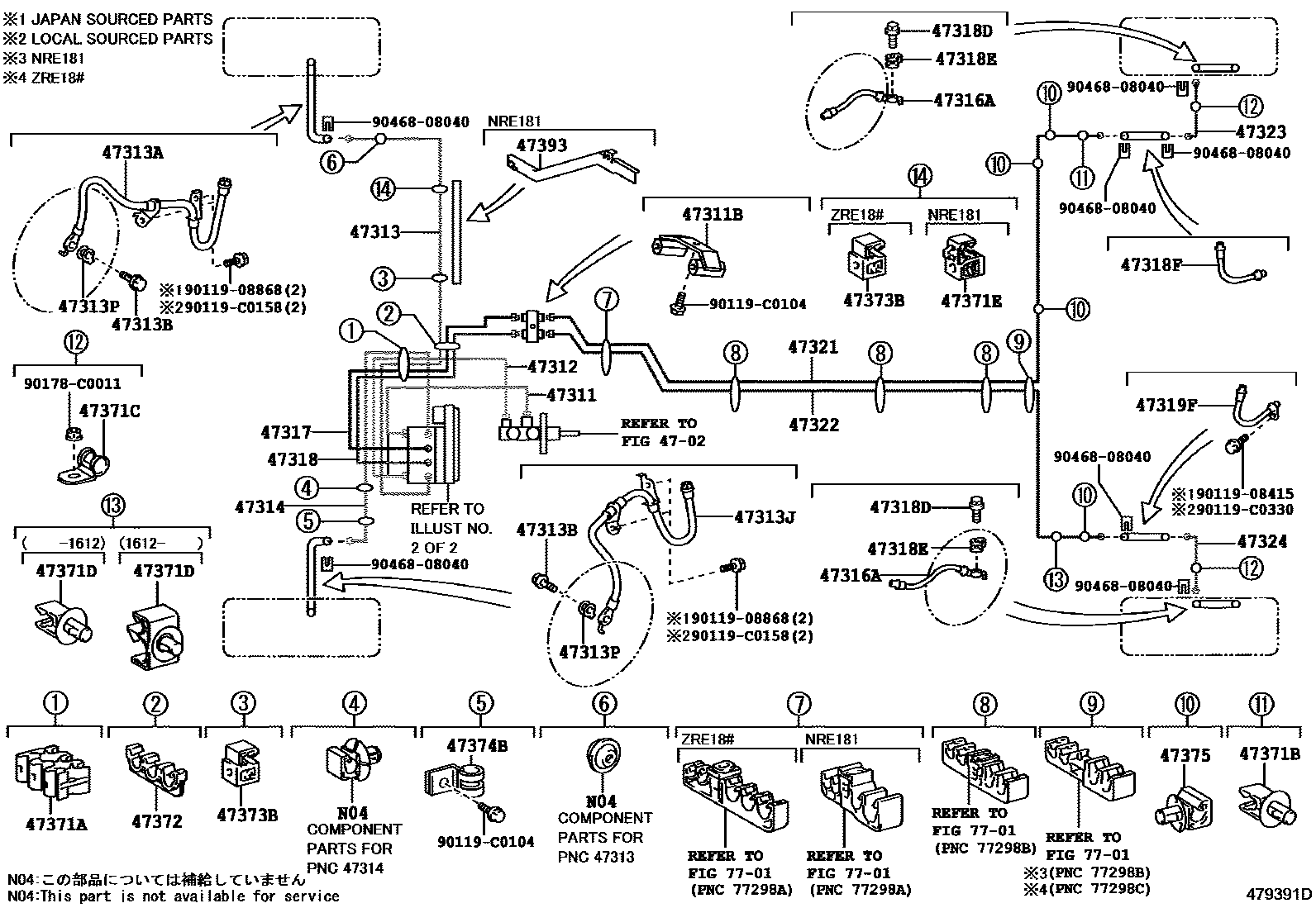

BRAKE TUBE & CLAMP

0001 1BRAKE TUBE 0002 1BRAKE TUBE 0003 1BRAKE ACTUATOR 0004 1BRAKE ACTUATOR 0005 1BRAKE BOOSTER PUMP

4702

47311TUBE, FRONT BRAKE, NO.1

main47311-02B80iZRE181201408-201611

main47311-02B90iZRE182201408-201611

sub47311-02B91

main47311-02B91iNRE181,ZRE182201612-201706

main47311-02C50iZWE182201512-201706

47311BWAY, NO.1(FOR FRONT BRAKE TUBE)

main90412-C0001iZRE181;ZRE182..6F201408-201706

47312TUBE, FRONT BRAKE, NO.2

main47312-02A50iZRE181201408-201611

main47312-02A60iZRE182201408-201611

sub47312-02A61

main47312-02A61iNRE181,ZRE182201612-201706

47313TUBE, FRONT BRAKE, NO.3

main47313-02750iZRE181201408-201611

main47313-02C20iZRE182201408-201611

sub47313-02C21

main47313-02C21iNRE181,ZRE182201612-201706

main47313-02D00iZWE182201512-201706

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main90947-C2049iNRE181,ZRE182,ZWE182201408-201706

47313BBOLT, UNION(FOR FRONT FLEXIBLE HOSE)

main90401-10058iNRE181,ZRE182,ZWE182201408-201706

(J)

main90401-C0001iNRE181,ZRE182,ZWE182201408-201706

(L)

47313JHOSE, FLEXIBLE, NO.2(FOR FRONT)

main90947-C2050iZRE181;ZRE182..6F201408-201706

47313PGASKET(FOR FRONT FLEXIBLE HOSE)

main47389-50020iZRE181;ZRE182..6F201408-201706

47314TUBE, FRONT BRAKE, NO.4

main47314-02B40iZRE181201408-201611

main47314-02B50iZRE182201408-201611

sub47314-02B51

main47314-02B51iNRE181,ZRE182201612-201706

main47314-02C50iZWE182201512-201706

47316AHOSE, FLEXIBLE(FOR REAR BRAKE TUBE)

main90947-C2052iZRE181;ZRE182..6F201408-201706

47317TUBE, FRONT BRAKE, NO.7

main47317-02A80iZRE181201408-201611

main47317-02A90iZRE182201408-201611

sub47317-02A91

main47317-02A91iNRE181,ZRE182201612-201706

main47317-02B90iZWE182201512-201706

47318TUBE, FRONT BRAKE, NO.8

main47318-02B00iZRE181201408-201611

main47318-02B10iZRE182201408-201611

sub47318-02B11

main47318-02B11iNRE181,ZRE182201612-201706

main47318-02C10iZWE182201512-201706

47318DBOLT, UNION(FOR REAR FLEXIBLE HOSE)

main90401-10058iZRE181;ZRE182..6F201408-201706

(J)

main90401-C0001iNRE181,ZRE182,ZWE182201408-201706

(L)

47318EGASKET(FOR REAR FLEXIBLE HOSE)

main47389-50020iZRE181;ZRE182..6F201408-201706

47318FHOSE, FLEXIBLE(FOR REAR RH)

main90947-C2051iZRE181;ZRE182..6F201408-201706

47319FHOSE, FLEXIBLE(FOR REAR LH)

main90947-C2053iZRE181;ZRE182..6F201408-201706

47321TUBE, REAR BRAKE, NO.1

main47321-02540iZRE18#201408-201611

sub47321-02541

main47321-02541iNRE181,ZRE182201612-201905

main47321-02570iZWE182201512-201905

47322TUBE, REAR BRAKE, NO.2

main47322-02540iZRE18#201408-201611

sub47322-02541

main47322-02541iNRE181,ZRE182201612-201905

main47322-02570iZWE182201512-201905

47323TUBE, REAR BRAKE, NO.3

main47323-02200iZRE182..CVT;NRE181,ZWE182201508-201905

main47323-0F010iZRE18#201408-201507

47324TUBE, REAR BRAKE, NO.4

main47324-02210iZRE181;ZRE182..6F201508-201905

main47324-0F010iZRE18#201408-201507

47371ACLAMP, BRAKE TUBE, NO.1

main47371-47060iZWE182201512-201706

main90464-00933iZRE182..6F201408-201612

main90949-01E44iNRE181,ZRE182201612-201706

main90949-C1005iZRE181201408-201611

47371BCLAMP, BRAKE TUBE, NO.6

main90949-C1002iNRE181,ZRE18#201408-201905

main90949-C1003iZWE182201512-201905

47371CCLAMP, BRAKE TUBE, NO.7

main90461-C0002iNRE181,ZRE182201504-201905

main90461-C0003iZRE18#201408-201503

sub90461-C0002

main90949-C1002iZWE182201512-201905

47371DCLAMP, BRAKE TUBE, NO.8

main77286-75020iNRE181,ZRE182201612-201905

main90461-C0002iZWE182201512-201905

main90949-C1002iZRE18#201408-201612

47371ECLAMP, BRAKE TUBE, NO.9

main90949-01E18iNRE181201612-201706

47372CLAMP, BRAKE TUBE, NO.2

main90464-00904iZWE182201512-201706

main90949-01D92iNRE181,ZRE182201612-201706

main90949-C1004iZRE18#201408-201611

47373BCLAMP, BRAKE TUBE, NO.3

main90461-10840iZWE182201512-201706

main90949-01E19iNRE181201612-201706

main90949-C1001iZRE182..CVT201408-201706

47374BCLAMP, BRAKE TUBE, NO.4

main90461-10781iZRE182..CVT;NRE181,ZWE182201408-201706

47375CLAMP, BRAKE TUBE, NO.5

main77286-75020iZWE182201512-201706

main90949-C1003iNRE181,ZRE182201408-201706

47393INSULATOR, BRAKE TUBE HEAT

main47393-02030iNRE181201712

main47393-12040iNRE181201612-201712

7701

9011908415

main90119-08415

9011908868

main90119-08868

90119C0104

main90119-C0104

90119C0158

main90119-C0158

90119C0330

main90119-C0330

90178C0011

main90178-C0011

9046808040

main90468-08040

39 parts on this diagram · 5 diagrams in section
