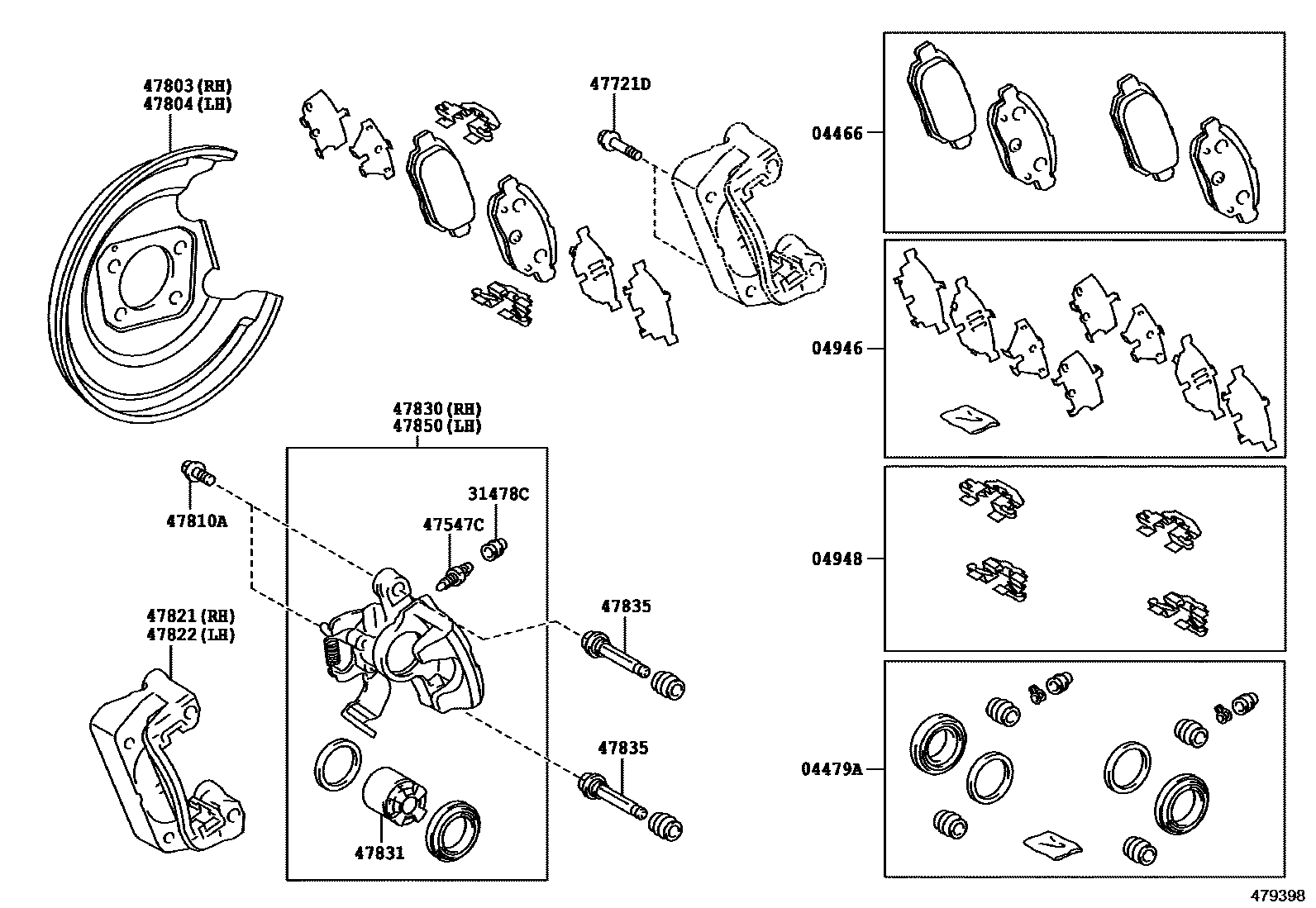

REAR DISC BRAKE CALIPER & DUST COVER

04466PAD KIT, DISC BRAKE, REAR

main04466-02310iZRE18#201408-201502

MARK AK NS254

main04466-02320iZRE18#201503-201510

MARK AK NS254

sub04466-02330

main04466-02330iZRE181;ZRE182..6F201511-201706

MARK AK NS254

04479ACYLINDER KIT, DISC BRAKE, REAR

main04479-02330iZRE182..CVT;NRE181,ZWE182201408-201706

04946SHIM KIT, ANTI SQUEAL(FOR REAR DISC BRAKE)

main04946-02050iZRE18#201408-201510

main04946-02100iZRE181;ZRE182..6F201511-201706

04948FITTING KIT, DISC BRAKE, REAR

main04948-02101iZRE181;ZRE182..6F201408-201706

31478CCAP, BLEEDER PLUG(FOR REAR DISC BRAKE)

main31478-02160iZRE182..CVT;NRE181,ZWE182201408-201706

47547CPLUG, BLEEDER(FOR REAR DISC BRAKE)

main47847-02160iNRE181,ZRE182,ZWE182201408-201706

47721DBOLT(FOR REAR DISC BRAKE CYLINDER MOUTING)

main90105-10576iNRE181,ZRE182,ZWE182201706

*10-1.25PX19-15.25,(J)

main90105-C0162iZRE181;ZRE182..6F201408-201706

*10-1.25PX19-15.25

main90105-C0162iNRE181,ZRE182,ZWE182201706

*10-1.25PX19-15.25,(L)

47803COVER SUB-ASSY, DISC BRAKE DUST, REAR RH

main47881-02160iZRE182..CVT;NRE181,ZWE182201408-201706

47804COVER SUB-ASSY, DISC BRAKE DUST, REAR LH

main47882-02160iZRE181;ZRE182..6F201408-201706

47810ABOLT, HEXAGON(FOR REAR CALIPER)

main90016-AA104iZRE181;ZRE182..6F201408-201706

47821MOUNTING, REAR DISC BRAKE CYLINDER, RH

main47821-02160iZRE181;ZRE182..6F201408-201706

47822MOUNTING, REAR DISC BRAKE CYLINDER, LH

main47821-02160iZRE181;ZRE182..6F201408-201706

47830CYLINDER ASSY, DISC BRAKE, REAR RH

main47830-02160iZRE181;ZRE182..6F201408-201706

47831PISTON, REAR DISC BRAKE

main47831-02180iZRE181;ZRE182..6F201408-201706

47835PIN, REAR DISC BRAKE PAD GUIDE

main47835-02160iZRE181;ZRE182..6F201408-201706

47850CYLINDER ASSY, DISC BRAKE, REAR LH

main47850-02160iZRE181;ZRE182..6F201408-201706

16 parts on this diagram · 1 diagram in section
