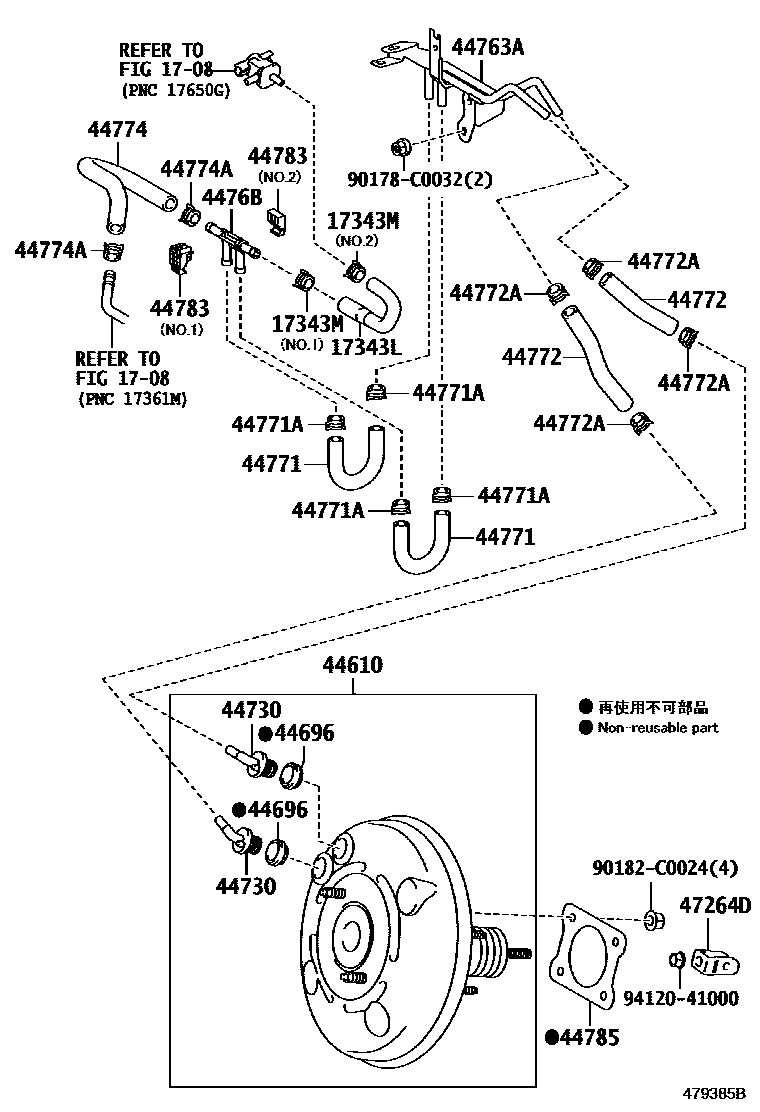

BRAKE BOOSTER & VACUUM TUBE
1708
17343LHOSE, AIR, NO.3
17343MCLIP(FOR AIR HOSE NO.3)
NO.2:REFER ILLUST.
NO.1:REFER ILLUST.
44610BOOSTER ASSY, BRAKE
44696GROMMET, CHECK VALVE
44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44763ATUBE, HOSE TO HOSE, NO.1
4476BEJECTOR, BRAKE BOOSTER VACUUM
44771HOSE, VACUUM TUBE CONNECTOR
44771ACLIP(FOR VACUUM TUBE CONNECTOR HOSE)
44772HOSE, CHECK VALVE TO CONNECTOR TUBE
44772ACLIP(FOR CHECK VALVE TO CONNECTOR TUBE)
44774HOSE, UNION TO CONNECTOR TUBE
TYPE A:REFER ILLUST.
TYPE B:REFER ILLUST.
44774ACLIP(FOR UNION TO CONNECTOR TUBE HOSE)
44783CLAMP, VACUUM HOSE
NO.2:REFER ILLUST.
NO.1:REFER ILLUST.
44785GASKET, BRAKE BOOSTER
47264DCLEVIS, BRAKE MASTER CYLINDER PUSH ROD
90178C0032
main90178-C0032
90182C0024
main90182-C0024
9412041000
main94120-41000
20 parts on this diagram · 3 diagrams in section
