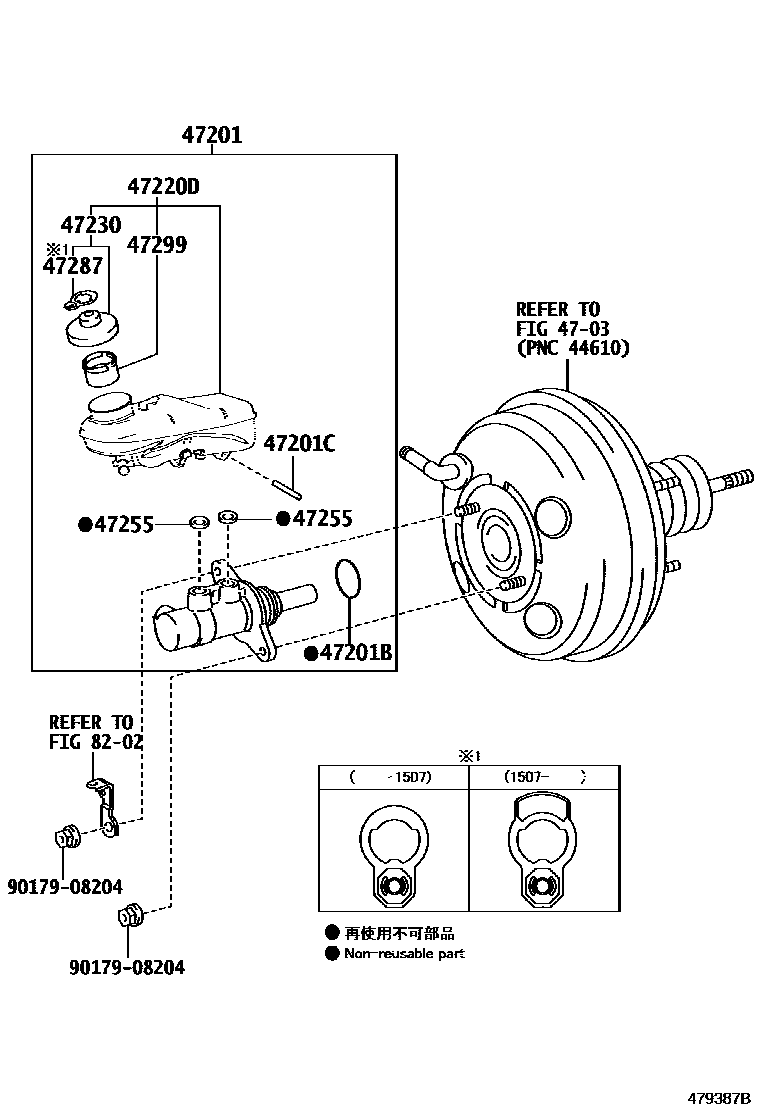

BRAKE MASTER CYLINDER

0001 1 0002 1

4703

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47201-02820iZRE181..CVT201408-201611

main47201-02830iZRE181..5F201408-201611

main47201-02840iNRE181,ZRE182..CVT201408-201706

main47201-02850iNRE181,ZRE182..6F201408-201706

47201BRING, O(FOR BRAKE MASTER CYLINDER)

main90016-AH902iZRE181;ZRE182..6F201408-201706

47201CRING PIN, BRAKE MASTER CYLINDER

main90029-15803iZRE181;ZRE182..6F201408-201706

47220DRESERVOIR ASSY, BRAKE MASTER CYLINDER

main47220-02300iZWE182201512-201706

main47220-02400iNRE181,ZRE182..CVT201408-201706

main47220-02410iNRE181,ZRE18#..MTM201408-201706

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-02260iZRE18#201408-201507

sub47230-0R030

main47230-0R030iNRE181,ZRE182201507-201706

main47230-47090iZWE182201612-201706

main47230-58010iZWE182201512-201612

sub47230-11010

47255GROMMET, MASTER CYLINDER RESERVOIR

main90016-AT002iZRE181;ZRE182..6F201408-201706

47287LABEL, BRAKE FLUID INFORMATION

main47287-02360iNRE181,ZRE18#201507-201706

main47287-20010iZRE18#201408-201507

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-20060iZRE181;ZRE182..6F201408-201706

8202

9017908204

main90179-08204
