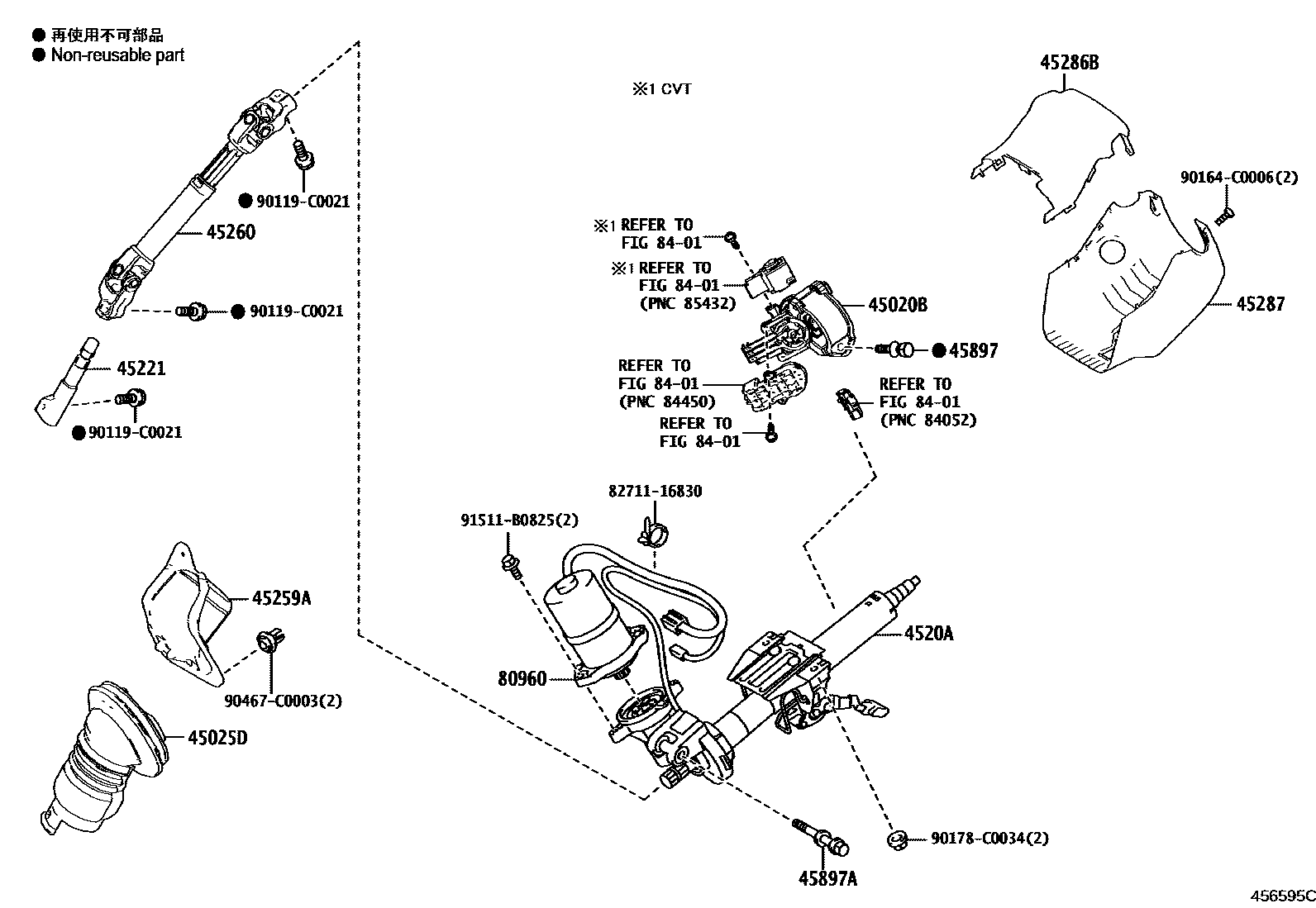

STEERING COLUMN & SHAFT

0001 1 0002 1 0003 1

45020BACTUATOR OR UPPER BRACKET ASSY, STEERING LOCK

main45280-02470iNRE181,ZRE18#..MTM201408-201905

main45280-02480iNRE181,ZRE18#..CVT..(E,G,N)201408-201905

45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1

main45025-0F050iZRE181;ZRE182..6F201408-201706

4520ACOLUMN SUB-ASSY, ELECTRIC POWER STEERING

main4520A-02320iZRE181201408-201706

main4520A-02340iZRE182..CVT..G201408-201706

main4520A-02350iZRE182..V201408-201706

main4520A-02360iZWE182201512-201706

45221SHAFT, STEERING INTERMEDIATE

main45221-02170iZRE182..CVT;NRE181,ZWE182201408-201706

45259ASHEET, COLUMN HOLE COVER SILENCER

main45259-02250iZWE182201604-201706

main45259-0F070iNRE181;ZRE182..CVT201408-201706

45260SHAFT ASSY, STEERING INTERMEDIATE, NO.2

main45260-02260iZRE181;ZRE182..6F201408-201706

45286BCOVER, STEERING COLUMN, UPR

main45286-02570-C0iNRE181201408-201706

BLACK,TRIM0#,2#

main45286-02580-C0iZWE182..E,G201512-201706

BLACK,TRIM0#,2#

main45286-02580-C0iZRE182,ZWE182..V201408-201706

BLACK,TRIM2#

45287COVER, STEERING COLUMN, LWR

main45024-02080-C0iNRE181201605-201706

BLACK,TRIM0#,2#

main45024-02090-C0iZRE182,ZWE182..E,G201605-201706

BLACK,TRIM0#,2#

main45024-02090-C0iZRE182,ZWE182..V201605-201706

BLACK,TRIM2#

main45287-02570-C0iZRE18#..E,G,N201408-201605

BLACK,TRIM0#,2#

main45287-02580-C0iZWE182..E,G201512-201605

BLACK,TRIM0#,2#

main45287-02580-C0iZRE182,ZWE182..V201408-201605

BLACK,TRIM2#

45897BOLT, STEERING LOCK SET

main45897-12020iNRE181,ZRE182201408-201706

45897ABOLT, TILT STEERING PAWL SET

main90119-10981iNRE181,ZRE182,ZWE182201511-201706

(J)

main90119-10981iZRE18#201408-201511

main90119-C0427iZRE181;ZRE182..6F201511-201706

(L)

80960MOTOR ASSY, POWER STEERING

main80960-02110iNRE181,ZRE181201408-201706

main80960-02170iNRE181201706

8401

8271116830WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-16830

90119C0021

main90119-C0021

90164C0006

main90164-C0006

90178C0034

main90178-C0034

90467C0003

main90467-C0003

91511B0825

main91511-B0825

18 parts on this diagram · 3 diagrams in section
