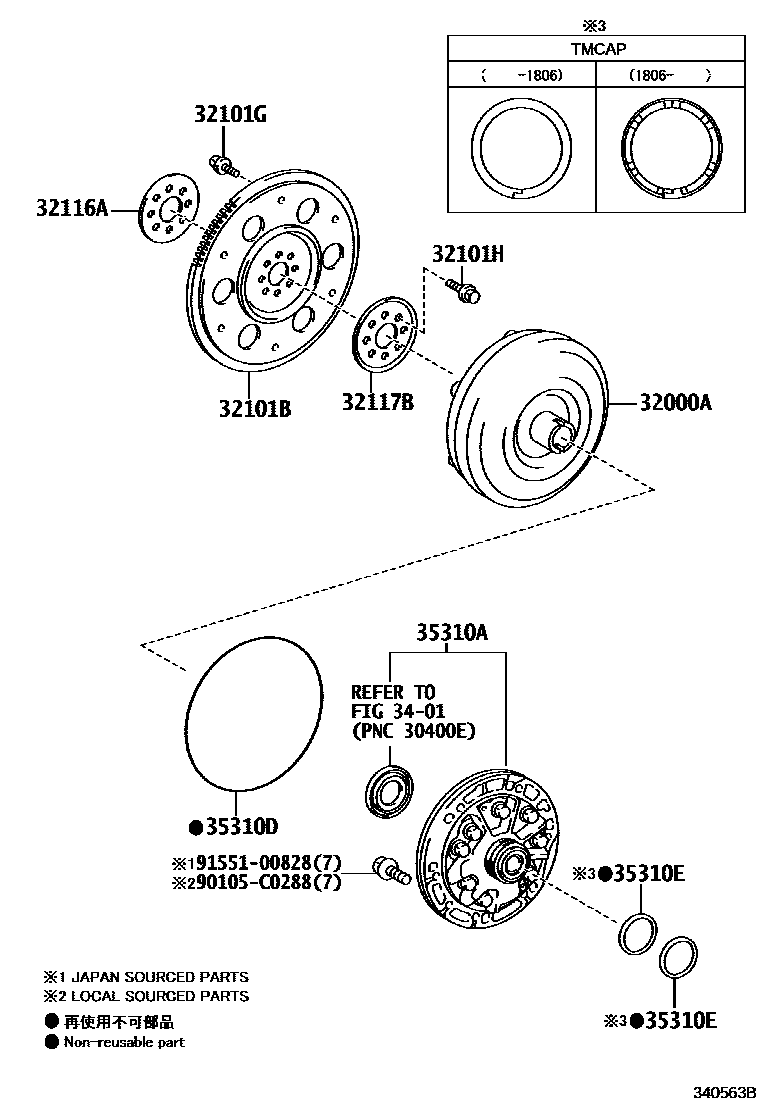

TORQUE CONVERTER, FRONT OIL PUMP(CVT)

32000ACONVERTER ASSY, TORQUE

main32000-02030iZRE182201408-201706

TMCAP:REFER ILLUST.

main32000-02040iNRE181..CVT201612-201712

TMCAP:REFER ILLUST.

sub32000-02041

main32000-02041iNRE181..CVT201801

TMCAP:REFER ILLUST.

main32000-12450iNRE181..CVT201612-201711

TMH:REFER TO ILLUST.

sub32000-12451

main32000-12451iNRE181..CVT201712

TMH:REFER TO ILLUST.

main32000-12500iZRE18#..CVT201408-201612

TMH:REFER TO ILLUST.

32101BGEAR SUB-ASSY, DRIVE PLATE & RING

main32101-0D030iNRE181,ZRE182..CVT201408-201706

(L)

main32101-12100iNRE181,ZRE18#..CVT201408-201706

(J)

32101GBOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)

main90109-08113iNRE181,ZRE182..CVT201408-201706

*8-1.25PX12-8.4,BLACK

main90119-08498iNRE181,ZRE182..CVT201408-201706

*8-1.25PX12-8,SILVER WHITE

32101HBOLT, HEXAGON(FOR DRIVE PLATE SETTING)

main90105-10048iZRE181..CVT201408-201706

32116ASPACER, DRIVE PLATE, FRONT

main32116-02020iNRE181,ZRE182..CVT201408-201706

32117BSPACER, DRIVE PLATE, REAR

main32117-02020iZRE181..CVT201408-201706

3401

35310APUMP ASSY, FRONT OIL

main35310-02020iNRE181,ZRE182..CVT201408-201706

TMCAP:REFER 34-01

sub35310-12170

main35310-12170iNRE181,ZRE181..CVT201408-201706

TMH:REFER 34-01

35310DRING, O (FOR FRONT OIL PUMP)

main90301-99133iZRE182..CVT201408-201701

TMH:REFER 34-01

sub90301-99202

main90301-99202iNRE181..CVT201702-201706

TMH:REFER 34-01

main90301-C0067iNRE181,ZRE18#..CVT201408-201706

TMCAP:REFER 34-01

35310ESEAL, TYPE T OIL (FOR FRONT OIL PUMP)

main35617-02020iNRE181,ZRE182..CVT201408-201806

TMCAP:REFER 34-01

sub35617-02030

main35617-02030iNRE181,ZRE182..CVT201806

TMCAP:REFER 34-01

main35617-12030iZRE18#..CVT201408-201611

TMH:REFER 34-01

main35617-12031iNRE181..CVT201611-201706

TMH:REFER 34-01

90105C0288

main90105-C0288

9155100828

main91551-00828

12 parts on this diagram · 1 diagram in section
