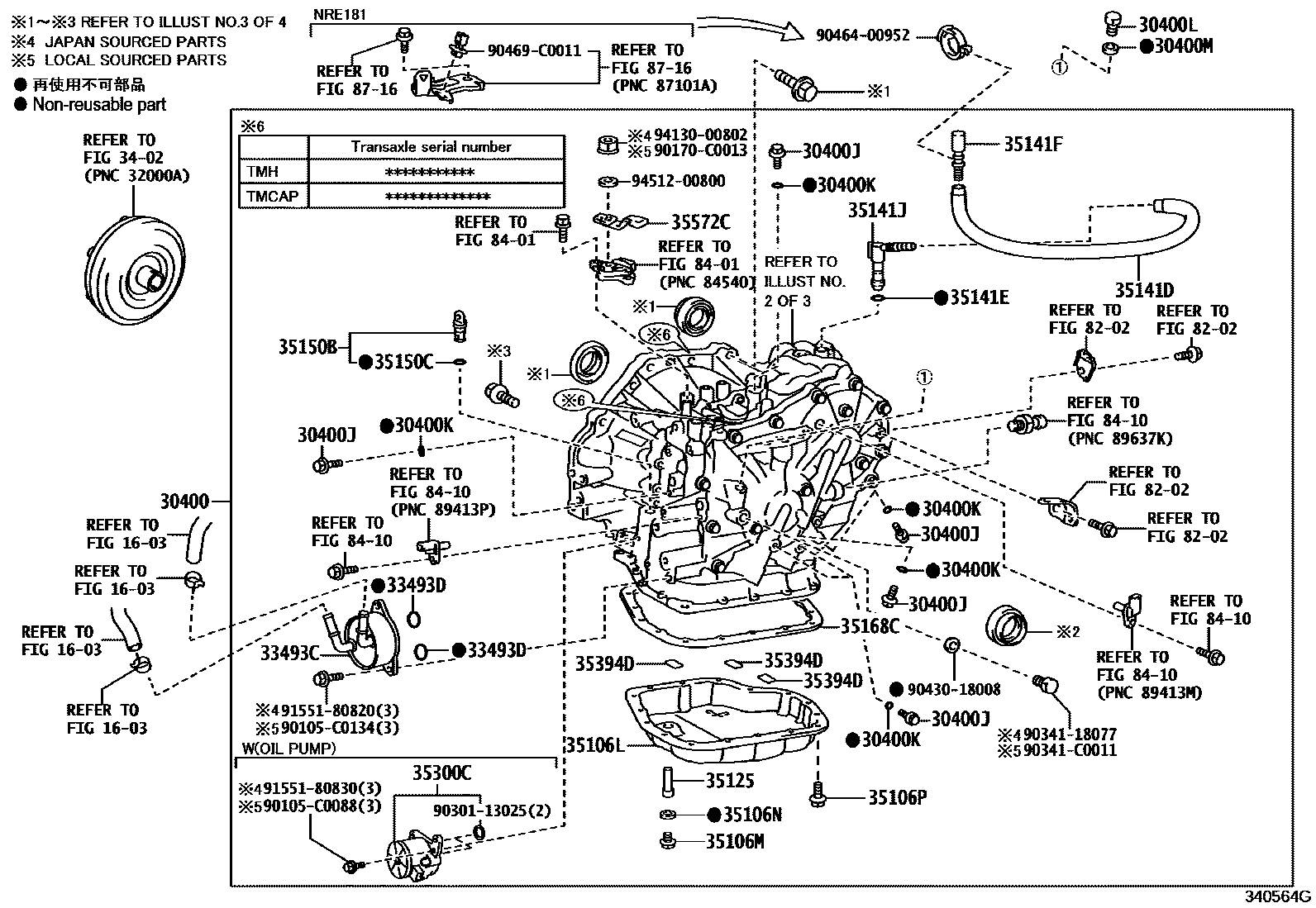

TRANSAXLE ASSY(CVT)

0001 1K313 0002 1K313 0003 1K313 0004 1K313

1603

30400TRANSAXLE ASSY, CONTINUOUSLY VARIABLE

main30400-02010iZRE18#..CVT201408-201610

K313,TMCAP:REFER ILLUST.

sub30400-02040

main30400-02030iNRE181..CVT201612-201706

K313,TMCAP:REFER ILLUST.

sub30400-02050

sub82715-02L90

main30400-02040iZRE182201610-201706

K313,TMCAP:REFER ILLUST.

sub30400-12520

main30400-12260iZRE182..CVT201408-201612

K313,TMH:REFER TO ILLUST.

main30400-12500iNRE181..CVT201612-201706

K313,TMH:REFER TO ILLUST.

30400JPLUG, TRANSAXLE HOLE

main90341-08001iNRE181,ZRE182..CVT201511-201706

TMCAP:REFER ILLUST.

main90341-08001iZRE182..CVT201408-201706

TMH:REFER TO ILLUST.

main90341-C0008iZRE18#..CVT201408-201510

TMCAP:REFER ILLUST.

sub90341-08001

30400KGASKET, TRANSAXLE HOLE PLUG

main90301-06196iNRE181..CVT201408-201706

TMH:REFER TO ILLUST.

main90301-C0061iNRE181,ZRE182..CVT201408-201706

TMCAP:REFER ILLUST.

30400LPLUG , FILLER(CVT)

main90341-12025iNRE181,ZRE182..CVT201703-201706

(J),TMH:REFER ILL.

main90341-12025iNRE181..CVT201608-201706

(J),TMCAP:REFER ILL.

main90341-12025iZRE182..CVT201408-201703

TMH:REFER TO ILLUST.

main90341-C0007iNRE181..CVT201608-201706

(L),TMCAP:REFER ILL.

main90341-C0007iZRE18#..CVT201408-201608

TMCAP:REFER ILLUST.

main90341-C0007iNRE181..CVT201703-201706

(L),TMH:REFER ILL.

30400MGASKET, FILLER PLUG(CVT)

main90430-12221iNRE181..CVT201408-201706

TMH:REFER TO ILLUST.

main90430-12221iNRE181,ZRE18#..CVT201408-201706

TMCAP:REFER ILLUST.

33493CCOOLER, TRANSMISSION OIL

main33493-02010iNRE181,ZRE181..CVT201408-201706

TMCAP:REFER ILLUST.

main33493-02010iZRE182201612-201706

main33493-12080iNRE181,ZRE181..CVT201408-201706

TMH:REFER TO ILLUST.

33493DRING, O (FOR TRANSMISSION OIL COOLER)

main90301-20012iNRE181..CVT201408-201706

TMH:REFER TO ILLUST.

main90301-C0028iNRE181..CVT201408-201706

TMCAP:REFER ILLUST.

main90301-C0028iZRE182201612-201706

3402

35106LPAN SUB-ASSY, TRANSAXLE OIL(CVT)

main35106-02020iNRE181,ZRE182..CVT201408-201807

TMCAP:REFER ILLUST.

main35106-02020iNRE181,ZRE182..CVT201807

main35106-12200iNRE181..CVT201408-201706

TMH:REFER TO ILLUST.

35106MPLUG SUB-ASSY, DRAIN(CVT)

main90341-12034iNRE181,ZRE181..CVT201408-201706

TMH:REFER TO ILLUST.

main90341-12034iNRE181,ZRE18#..CVT201408-201706

TMCAP:REFER ILLUST.

35106NGASKET, DRAIN PLUG(CVT)

main90430-12008iNRE181,ZRE182..CVT201408-201706

TMCAP:REFER ILLUST.

main90430-12008iZRE182..CVT201408-201706

TMH:REFER TO ILLUST.

main90430-12008iZRE181..CVT201408-201611

TMH:REFER TO ILLUST.,TMCAP:REFER ILLUST.

35106PBOLT(FOR TRANSAXLE OIL PAN)

main90119-06173iNRE181..CVT201408-201706

TMH:REFER TO ILLUST.

main90119-06173iZRE181..CVT201511-201706

TMCAP:REFER ILLUST.

main90119-C0435iZRE18#..CVT201408-201510

TMCAP:REFER ILLUST.

sub90119-06173

35125TUBE, TRANSMISSION OIL FILLER, NO.1

main35125-02160iNRE181,ZRE182..CVT201408-201706

TMCAP:REFER ILLUST.

main35125-12440iZRE181..CVT201408-201706

TMH:REFER TO ILLUST.

35141DHOSE(FOR BREATHER PLUG)

main35121-02010iZRE182..CVT201408-201706

TMCAP:REFER ILLUST.

main35121-0D020iNRE181..CVT201612-201706

TMCAP:REFER ILLUST.

main35121-12090iZRE181..CVT201408-201612

TMH:REFER TO ILLUST.

main35121-52020iNRE181..CVT201612-201706

TMH:REFER TO ILLUST.

35141ERING, O(FOR BREATHER PLUG)

main90301-06005iZRE18#..CVT201408-201604

TMH:REFER TO ILLUST.

main90301-06021iNRE181..CVT201605-201706

TMH:REFER TO ILLUST.

main90301-C0060iNRE181,ZRE182..CVT201408-201706

TMCAP:REFER ILLUST.

35141FPLUG, BREATHER, NO.1(CVT)

main90930-03216iNRE181..CVT201408-201706

TMH:REFER TO ILLUST.

main90930-C3019iNRE181,ZRE182..CVT201408-201706

TMCAP:REFER ILLUST.

35141JPLUG, BREATHER, NO.2(CVT)

main90930-03191iNRE181..CVT201408-201706

TMH:REFER TO ILLUST.

main90930-C3022iZRE181..CVT201408-201706

TMCAP:REFER ILLUST.

35150BPLUG ASSY, TRANSMISSION CASE

main35150-02010iZRE181..CVT201408-201706

TMCAP:REFER ILLUST.

main35150-48010iNRE181..CVT201408-201706

TMH:REFER TO ILLUST.

35150CRING, O (FOR TRANSMISSION CASE PLUG)

main90301-09173iZRE181..CVT201408-201706

TMH:REFER TO ILLUST.

35168CGASKET, TRANSAXLE OIL PAN(CVT)

main35168-02020iNRE181,ZRE182..CVT201408-201706

TMCAP:REFER ILLUST.

main35168-12091iNRE181..CVT201408-201706

TMH:REFER TO ILLUST.

35300CPUMP ASSY, OIL W/MOTOR

main35300-12011iZRE182201612-201706

TMH:REFER TO ILLUST.,TMCAP:REFER ILLUST.

main35300-12011iNRE181,ZRE182..CVT201706

TMCAP:REFER ILLUST.

main35300-12011iNRE181,ZRE182..CVT201706

TMH:REFER TO ILLUST.

35394DMAGNET, OIL CLEANER(CVT)

main35394-02010iNRE181,ZRE182..CVT201507-201706

TMCAP:REFER ILLUST.

main35394-30011iZRE182..CVT201408-201706

TMH:REFER TO ILLUST.

main35394-30011iZRE18#..CVT201408-201506

TMCAP:REFER ILLUST.

35572CLEVER, TRANSMISSION CONTROL SHAFT

main35572-12160iNRE181,ZRE182..CVT201408-201706

TMH:REFER TO ILLUST.

main35572-12160iNRE181..CVT201408-201706

TMCAP:REFER ILLUST.

8202

8401

8410

8716

90105C0088

main90105-C0088

90105C0134

main90105-C0134

90170C0013

main90170-C0013

9030113025

main90301-13025

9034118077

main90341-18077

90341C0011

main90341-C0011

9043018008

main90430-18008

9046400952

main90464-00952

90469C0011

main90469-C0011

9155180820

main91551-80820

9155180830

main91551-80830

9413000802

main94130-00802

9451200800

main94512-00800

41 parts on this diagram · 4 diagrams in section
