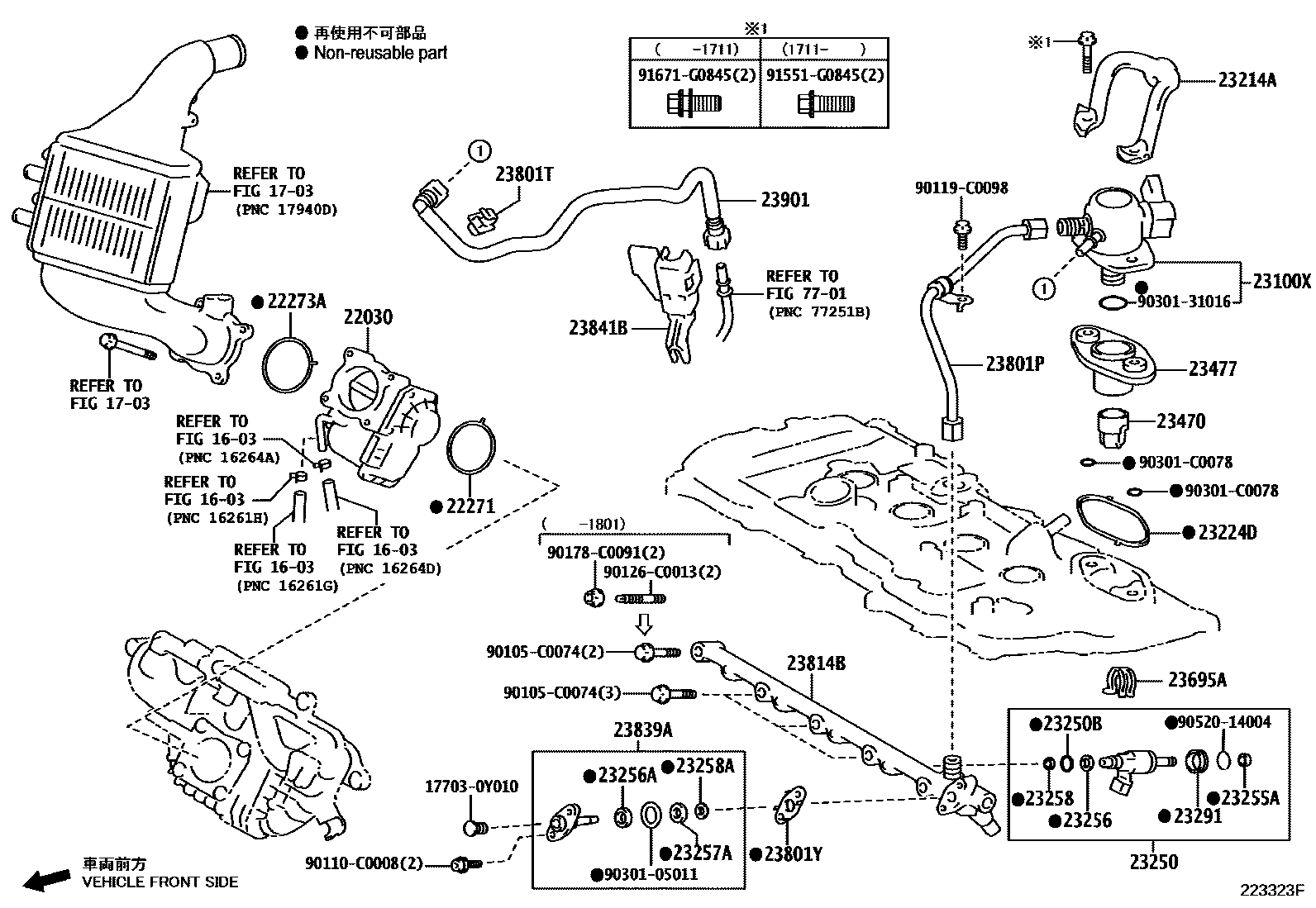

FUEL INJECTION SYSTEM
1603
1703
22030BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR
22271GASKET, THROTTLE BODY
*265
*54
*119
22273AGASKET, THROTTLE BODY, NO.2
23100XPUMP ASSY, FUEL (ENGINE ROOM SIDE)
23214APROTECTOR, FUEL PUMP
23224DGASKET, FUEL PUMP SPACER
23250INJECTOR ASSY, FUEL
(L)
(J)
*119,TYPE A
*119,TYPE B
23250BRING, O(FOR FUEL INJECTOR)
(J)
(L)
23255ASEAL, FUEL INJECTOR
23256RING, FUEL INJECTOR BACK-UP, NO.1
23256ARING, FUEL PIPE, NO.1
23257ARING, FUEL PIPE, NO.2
23258RING, FUEL INJECTOR BACK-UP, NO.3
23258ARING, FUEL PIPE, NO.3
23291INSULATOR, INJECTOR VIBRATION
*119T/P A:REF.ILLUST
*119T/P B:REF.ILLUST
23470LIFTER ASSY, FUEL PUMP
23477GUIDE, FUEL PUMP LIFTER
23695ACLAMP, NOZZLE HOLDER
23801PPIPE SUB-ASSY, FUEL, NO.1
23801TCLAMP OR CLIP, FUEL HOSE(FOR EFI)
(L)
(J)
23801YGASKET
23814BPIPE, FUEL DELIVERY
23839APLUG, FUEL PIPE, NO.1
23841BCLAMP, FUEL PIPE, NO.1(FOR EFI)
7701
177030Y010CASE SUB-ASSY, BOTTOM AIR CLEANER FILTER
main17703-0Y010
90105C0074
main90105-C0074
90110C0008
main90110-C0008
90119C0098
main90119-C0098
90126C0013
main90126-C0013
90178C0091
main90178-C0091
9030105011
9030131016
90301C0078
main90301-C0078
9052014004
91551G0845
91671G0845
40 parts on this diagram · 5 diagrams in section
