VACUUM PUMP

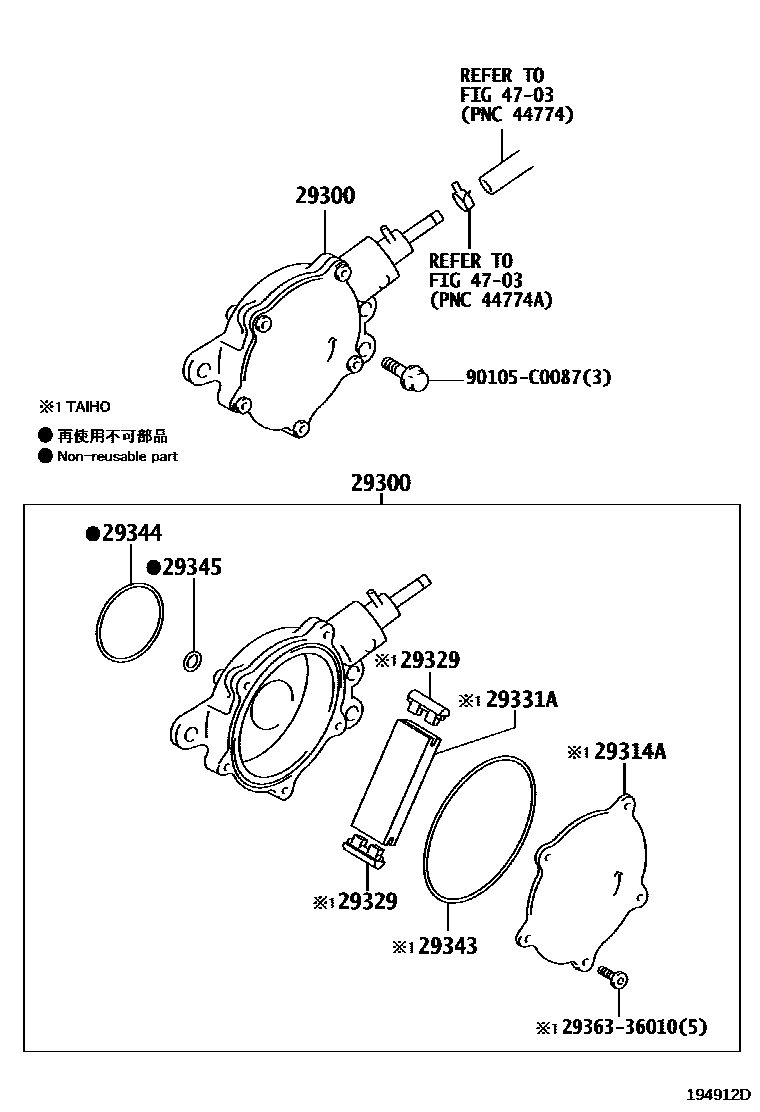

Parts diagram

29300PUMP ASSY, VACUUM

main29300-0Y011i201612-201810

MAGNA

main29300-0Y020i201810

MAGNA

main29300-47040i201612-201705

TAIHO

29314ACOVER, END

main29314-47040i201612-201705

TAIHO

29329CAP, VACUUM PUMP VANE

main29329-37010i201612-201705

TAIHO

29331AVANE, VACUUM PUMP

main29331-37010i201612-201705

TAIHO

29343RING, O VACUUM PUMP, NO.1

main29343-47040i201612-201705

TAIHO

29344RING, O VACUUM PUMP, NO.2

main29344-0P010i201612-201706

MAGNA

main29344-22011i201612-201705

TAIHO

29345RING, O VACUUM PUMP, NO.3

main29345-0P010i201612-201706

MAGNA

main29345-22011i201612-201705

TAIHO

4703

2936336010SCREW, HOLLOW VACUUM PUMP

main29363-36010

90105C0087

main90105-C0087

10 parts on this diagram · 1 diagram in section
