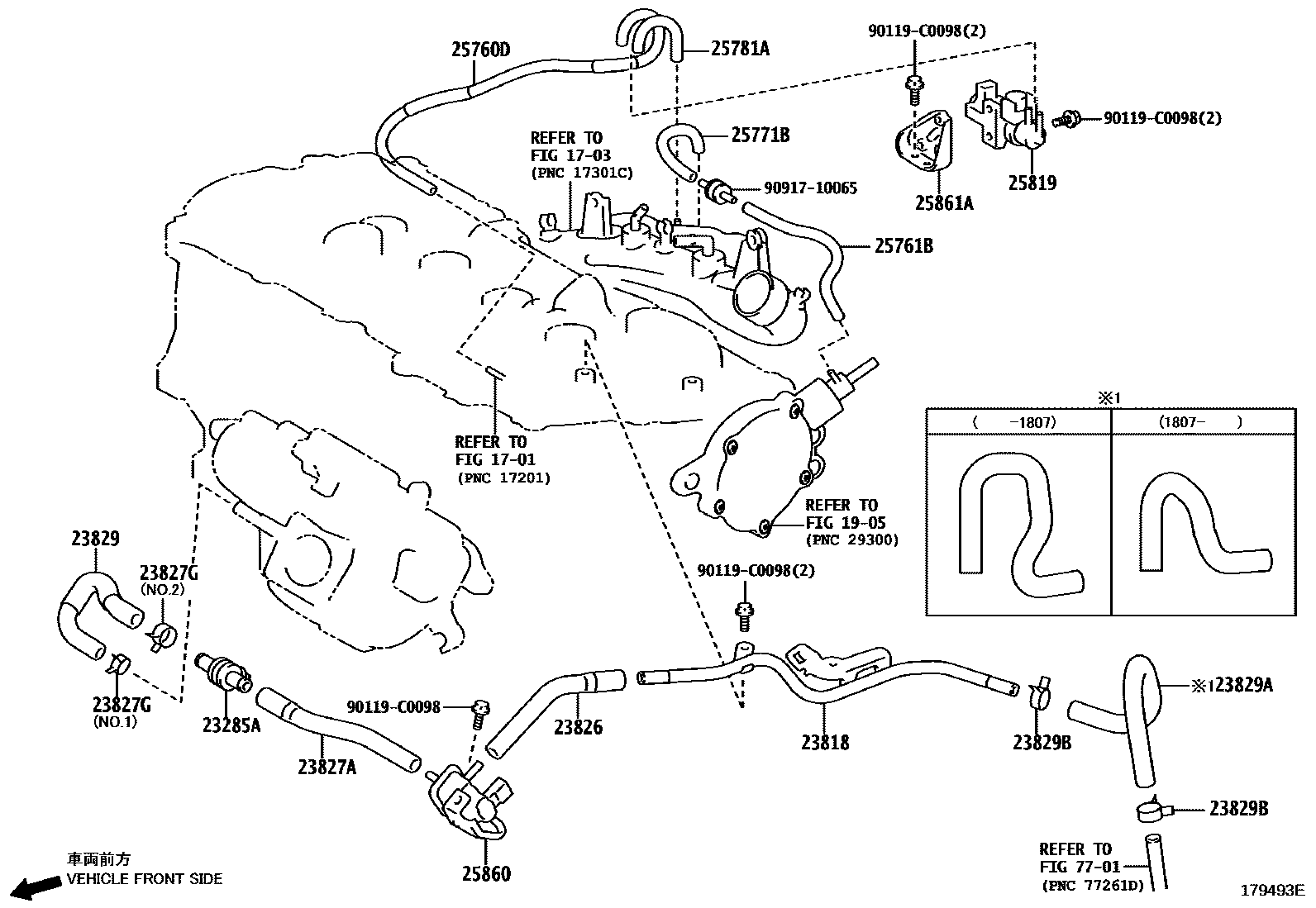

VACUUM PIPING
1701
1703
1905
23285AVALVE, CHECK, NO.1
sub25748-0Y020
23818PIPE, FUEL VAPOR FEED
EXHAUST EMISSION CONTROL-CHINA 6B
23826HOSE, FUEL VAPOR FEED, NO.1
*54
*265
GREEN PAINTED
YELLOW PAINTED
EXHAUST EMISSION CONTROL-CHINA 6B
*119
*119
23827AHOSE, FUEL VAPOR FEED, NO.2
EXHAUST EMISSION CONTROL-CHINA 6B
EXHAUST EMISSION CONTROL-CHINA 6B
23827GCLIP(FOR FUEL VAPOR FEED HOSE, NO.3)
NO.2:REFER ILLUST.
NO.1:REFER ILLUST.
23829HOSE, FUEL VAPOR FEED, NO.3
23829AHOSE, FUEL VAPOR FEED
EXHAUST EMISSION CONTROL-CHINA 6B
23829BCLIP(FOR FUEL VAPOR FEED HOSE)
(L)
(L),NO.1
(L)
EXHAUST EMISSION CONTROL-CHINA 6B,(L)
(J),NO.1,NO.2
(J)
(J)
EXHAUST EMISSION CONTROL-CHINA 6B,(J)
25760DHOSE ASSY, VACUUM TRANSMITTING, NO.4
25771BHOSE, VACCUM TRANSMITTING, NO.2
25819VALVE ASSY, VACUUM REGULATING
25860VALVE ASSY, VACUUM SWITCHING, NO.1
EXHAUST EMISSION CONTROL-CHINA 6B
EXHAUST EMISSION CONTROL-CHINA 6B
25861BRACKET, VACUUM SWITCHING VALVE
25861ABRACKET, VACUUM SWITCHING VALVE, NO.2
7701
90119C0098
main90119-C0098
9091710065
main90917-10065
22 parts on this diagram · 5 diagrams in section
